INSTALLATION, OPERATION AND
MAINTENANCE MANUAL

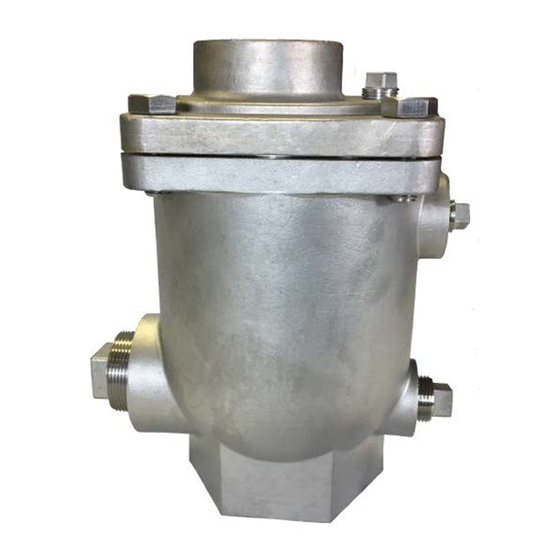

FIGURE 939SS
2"x1", 2" & 3"x 2"
FOR SEWAGE & WASTEWATER
TABLE OF CONTENTS
Introduction .................................. 2
................. 2
Receiving & Storage ....................... 2
Installation ..................................... 2
Valve Construction ......................... 3
Preventive Maintenance .................. 3
Testing/Trouble Shooting .................. 3
Disassembly .................................. 3
Assembly ...................................... 4
............... 4
Order Replacement Parts ................. 4
Repair Kits .................................... 5
Warranty ....................................... 5
Figure 939SS Drawing/Parts List ........ 5
