ProSoft Technology RadioLinx RLXIB-IHW-66 Setup Manual page 15

Set Up the Master Radio
Setup Guide

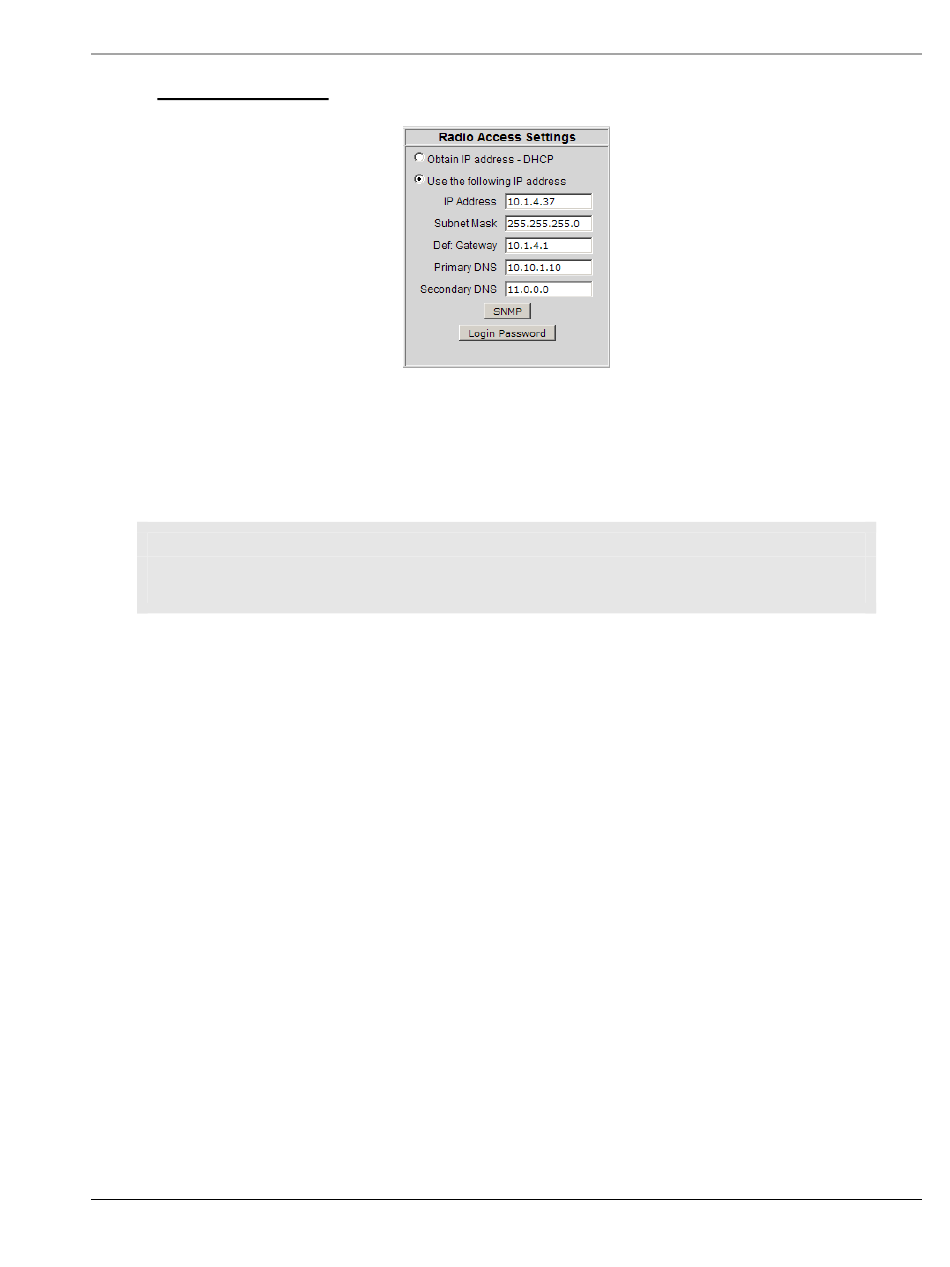

Radio Access Settings
If a DHCP (Dynamic Host Control Protocol) server is configured on your local
area network, the DHCP server can assign IP addresses automatically.
If you prefer to assign a Static (Fixed) IP address, select "Use the following IP
address", and then enter the IP Address, Subnet Mask and Default Gateway in
the Radio Access Settings area of the IH Radio web configuration form.
Important: If you intend to assign IP addresses manually, you must not duplicate an IP address
that is already in use on your network. If you are not sure what IP addresses are available, ask
your network administrator for assistance.
ProSoft Technology, Inc.
May 18, 2009
RLXIB-IHW-66 ♦ 802.11a,b,g
Industrial Hotspot
Page 15 of 20
