VoxPower NEVO+ Series Manual

_______________________________________________________________________________________________
The NEVO series are modular, user configurable power supplies offering unrivalled performance and flexibility. Our standard output
modules offer voltages from 1.5V
connect output modules in series or parallel resulting in output voltages of up to 240V
powers of up to 600 watts. The flexibility of the NEVO power platform enables customers to configure solutions locally for almost
any application.
Output modules 1 to 4 also come with full range analogue remote control of both voltage and current as standard and now with
the release of the new S-Track Interface, multiple outputs which have been connected in series of the same module type can be
easily controlled using a single control voltage.
Typically, the control of multiple outputs connected in series
requires complicated circuitry to generate isolated control
signals for each output module. Vox Power's S-Track Interface
plugs directly into each output module and provides a single
analogue control bus for up to 4 modules of the same type
which are connected in series.

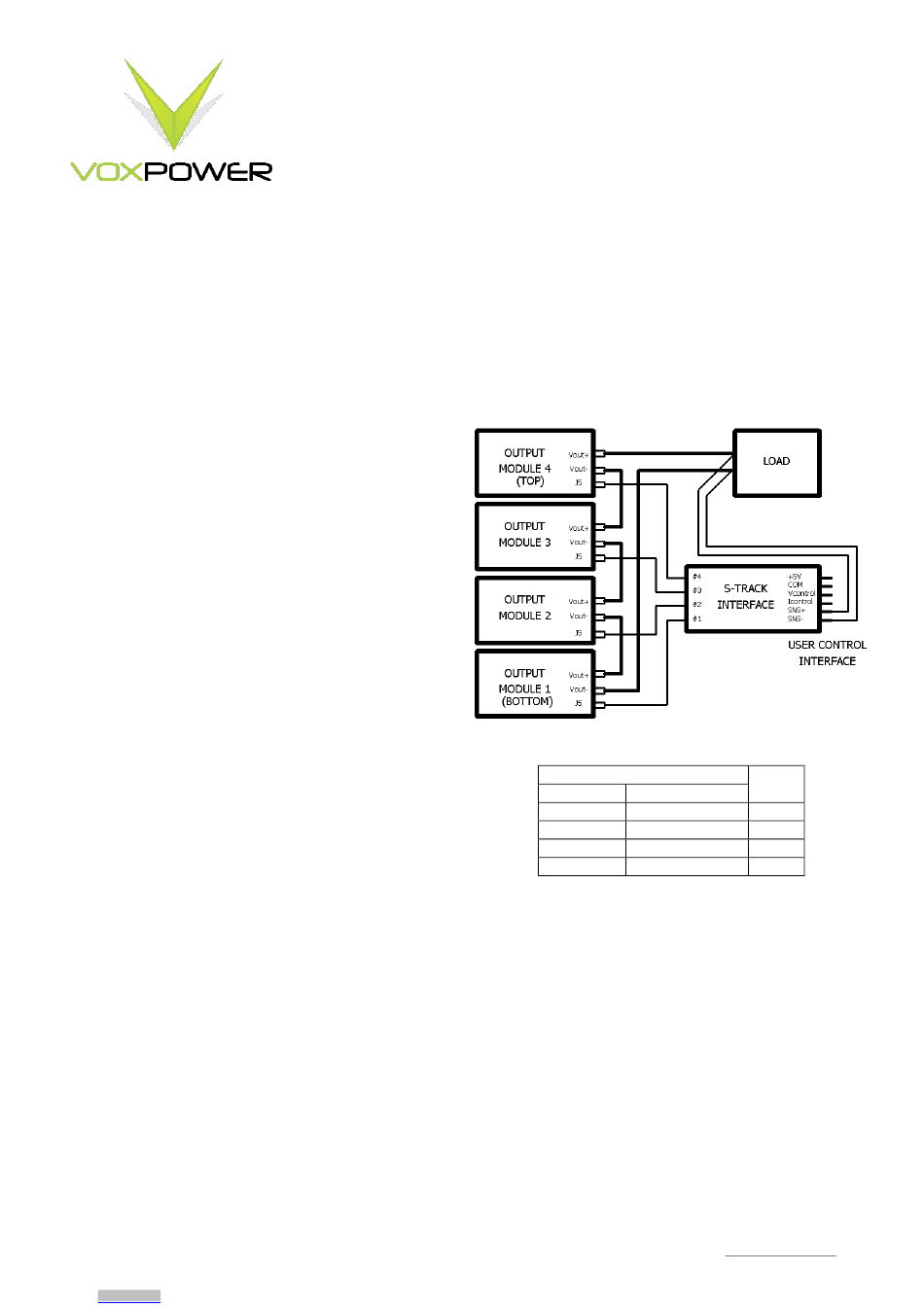

A typical configuration is illustrated in the diagram opposite
which shows four modules connected in series which are fully
controllable through the S-Track Interface. However, two or
three modules connected in series may also be controlled in
the same manner.
To control all modules connected in series the customer
should connect the power cables (and sense cables, if
required) as shown in the example. Set the switch settings on
the S-Track interface for the correct number of seriesed
modules (see table opposite), then attach the S-Track output
cables (1, 2, 3 & 4) to J5 on each module in the series chain.
When controlling less than 4 modules leave the remaining
signal cables unconnected. The bottom module should
always be connected to S-Track output #1, then the next to
#2 and so on until the top module is reached.
Note: Only modules of the same type should be connected in series and normal grounding precautions as described in the user
manual should be observed. Incorrect grounding may result in damage to the unit. The S-Track Interface is not isolated and is
referenced to the COM pin on J5 of the bottom module.
Contact Vox Power for further assistance if necessary.
Ordering information – P/N: ACC-NST
Vox Power Limited | Unit 2, Red Cow Interchange Estate, Ballymount, Dublin 22, D22 Y8H2, Ireland | T +353 1 4591161 | www.vox-power.com
Arrow.com.
Downloaded from
to 58V and can deliver up to 25A per module. The NEVO also offers customers the potential to
DC DC

Series Tracker Interface

and output currents of up to 100A at output
DC
Series Tracker Interface programming
Switch setting (1=ON, 0=OFF)
1
1
1
0
0
NEVO+ Series

Accessories

O/P's
2
0 2
1 2
1 3
0 4
DOC-ACS-001-03, NEVO+ Series Tracker
