Philco L2600BU Servicing

CN
LU

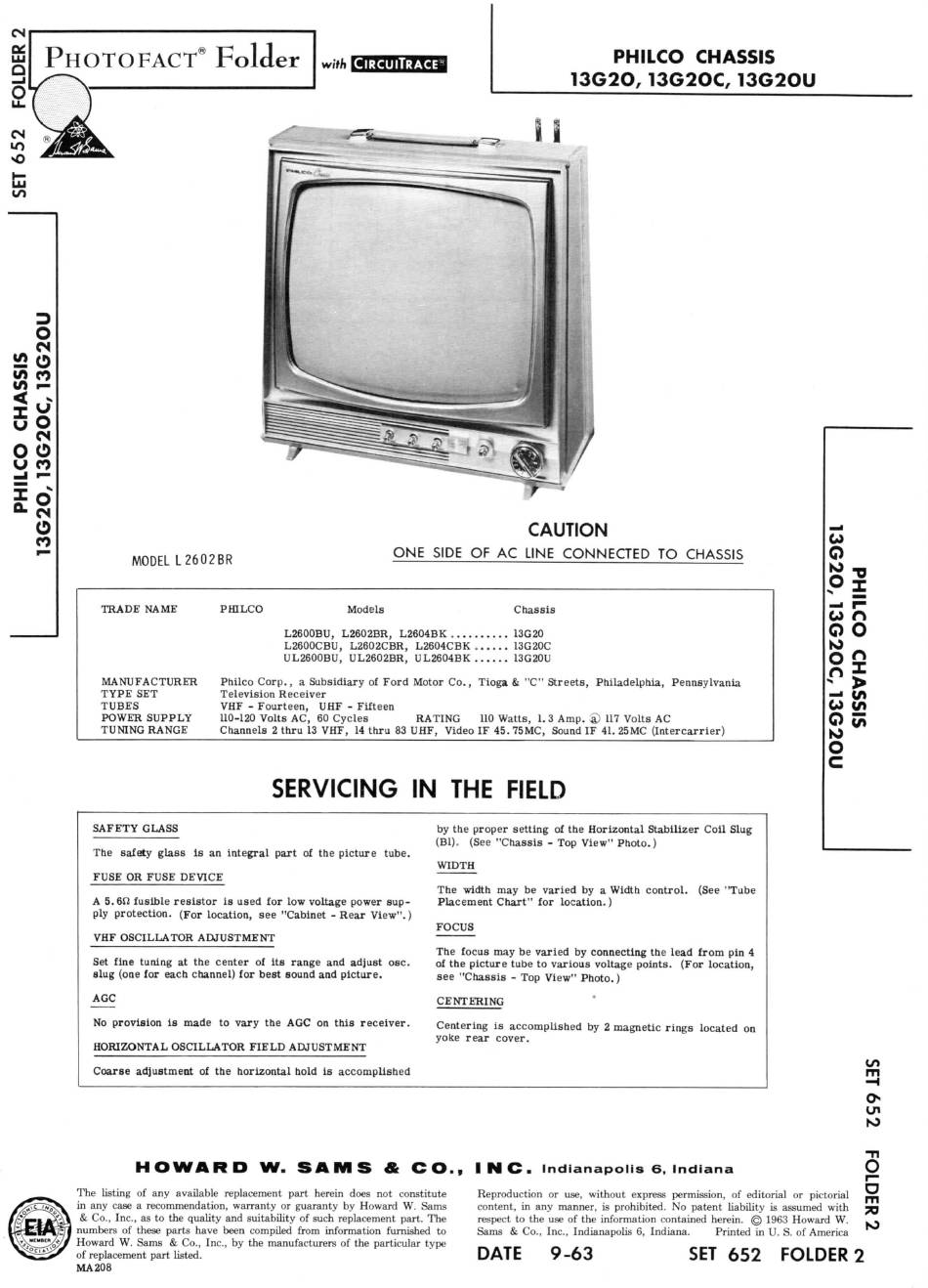

PHOTO FACT
8
Folder
PHILCO CHASSIS
13G20, 13G20C, 13G2OU
O
w» (5
82
o o
u co
ii
o
o
MODEL L 2 6 0 2 B R
CAUTION
ONE SIDE OF AC LINE CONNECTED TO CHASSIS
TRADE NAME
MANUFACTURER
TYPE SET
TUBES
POWER SUPPLY
TUNING RANGE
PHILCO Models
Chassis
L2600BU, L2602BR, L2604BK 13G20
L2600CBU, L2602CBR, L2604CBK 13G20C
UL2600BU, UL2602BR, UL2604BK 13G20U
Philco Corp., a Subsidiary of Ford Motor Co., Tioga & "C" Streets, Philadelphia, Pennsylvania
Television Receiver
VHF - Fourteen, UHF - Fifteen
110-120 Volts AC, 60 Cycles RATING 110 Watts, 1.3 Amp. S) 117 Volts AC
Channels 2 thru 13 VHF, 14 thru 83 UHF, Video IF 45. 75MC, Sound IF 41. 25MC (Intercarrier)
SERVICING IN THE FIELD
SAFETY GLASS
The safely glass is an integral part of the picture tube.
FUSE OR FUSE DEVICE
by the proper setting of the Horizontal Stabilizer Coil Slug
(Bl). (See "Chassis - Top View" Photo.)
WIDTH
A 5.6S2 fusible resistor is used for low voltage power sup-
ply protection. (For location, see "Cabinet - Rear View".)
VHF OSCILLATOR ADJUSTMENT
Set fine tuning at the center of its range and adjust osc.
slug (one for each channel) for best sound and picture.
AGC
No provision is made to vary the AGC on this receiver.
HORIZONTAL OSCILLATOR FIELD ADJUSTMENT
Coarse adjustment of the horizontal hold is accomplished
The width may be varied by a Width control. (See "Tube
Placement Chart" for location.)
FOCUS
The focus may be varied by connecting the lead from pin 4
of the picture tube to various voltage points. (For location,
see "Chassis - Top View" Photo.)
CENTERING
Centering is accomplished by 2 magnetic rings located on
yoke rear cover.
CJ
O
co n
G O
2*
o
to
=3
o
tn
10
H O W A R D W. S A M S & CO., INC. Indianapolis 6, Indiana
The listing of any available replacement part herein does not constitute
in any case a recommendation, warranty or guaranty by Howard W. Sams
& Co., Inc., as to the quality and suitability of such replacement part. The
numbers of these parts have been compiled from information furnished to
Howard W. Sams & Co., Inc., by the manufacturers of the particular type
of replacement part listed.
MA 208
Reproduction or use, without express permission, of editorial or pictorial ^
content, in any manner, is prohibited. No patent liability is assumed with JQ
respect to the use of the information contained herein. © 1963 Howard W. ..
Sams & Co., Inc., Indianapolis 6, Indiana. Printed in U. S. of America
DATE 9-63
SET 652 FOLDER 2
