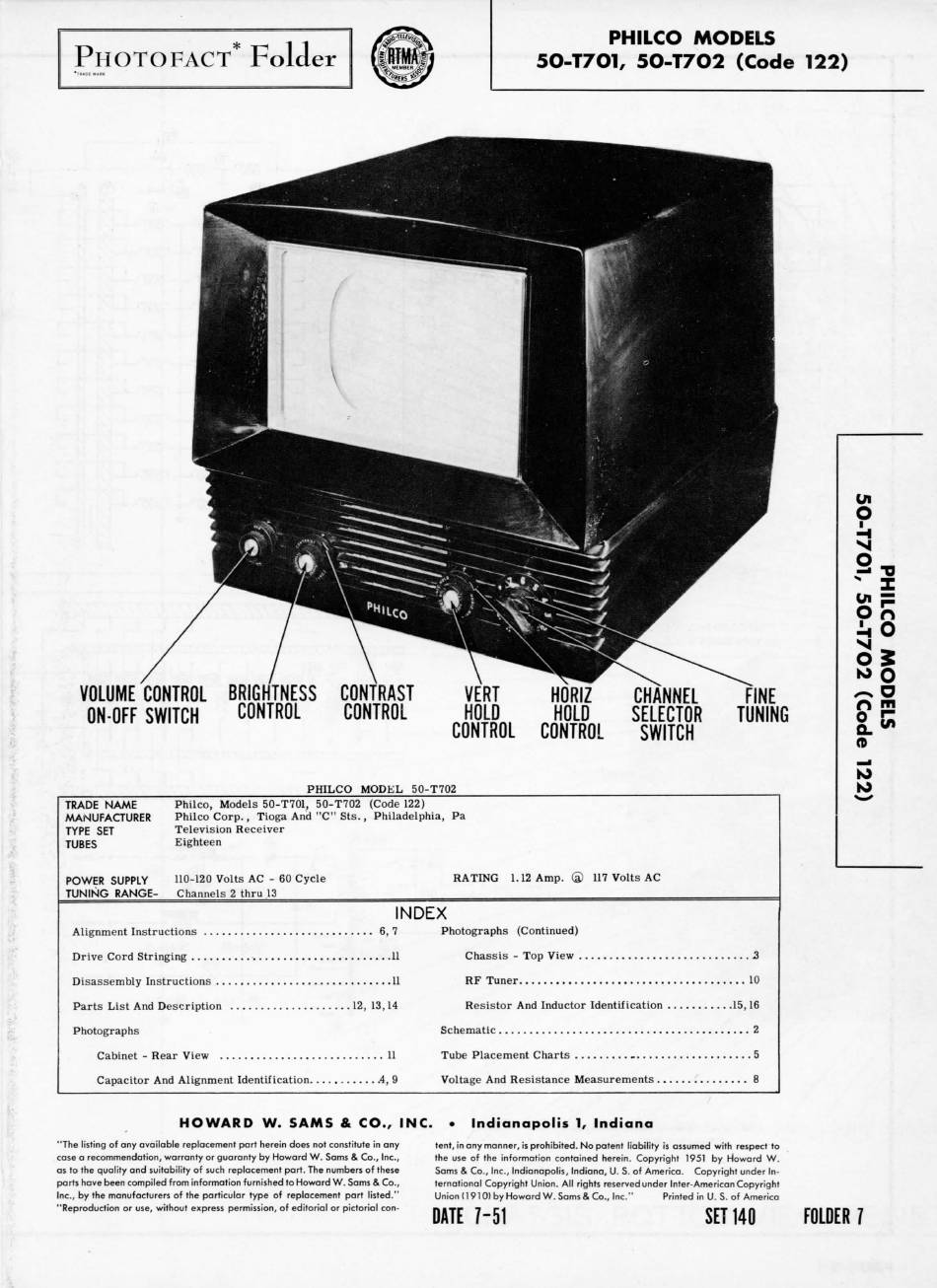

PHOTOFACT* Folder
PHILCO MODELS
50-T701, 5O-T702 (Code 122)
VOLUME CONTROL
ON-OFF SWITCH
BRIGHTNESS
CONTROL
CONTRAST
CONTROL
VERT
HOLD
CONTROL
HORIZ
HOLD
CONTROL
CHANNEL
SELECTOR
SWITCH
FINE
TUNING
PHILCO MODEL 50-T702
TRADE NAME
Philco, Models 50-T701, 50-T702 (Code 122)
MANUFACTURER
Philco Corp., Tioga And "C" Sts., Philadelphia, Pa
TYPE SET
Television Receiver
TUBES
Eighteen
POWER SUPPLY
110-120 Volts AC - 60 Cycle
TUNING RANGE-
Channels 2 thru 13
RATING
1.12 Amp.
117 Volts AC
INDEX
Alignment Instructions
6, 7
Drive Cord Stringing
11
Disassembly Instructions
11
Parts List And Description
12, 13,14
Photographs
Cabinet - Rear View
11
Capacitor And Alignment Identification
.4, 9
Photographs (Continued)
Chassis - Top View
RF Tuner
Resistor And Inductor Identification
Schematic
Tube Placement Charts
Voltage And Resistance Measurements ..
2
...10
.15,16
2
. . 5
O
N
?Z
SF
O n
o
K>
HOWARD W. SAMS & CO., INC.
•
Indianapolis 1, Indiana
"The listing of any available replacement part herein does not constitute in any
case a recommendation, warranty or guaranty by Howard W. Sams & Co., Inc.,
as to the quality and suitability of such replacement part. The numbers of these
parts have been compiled from information furnished to Howard W. Sams & Co.,
Inc., by the manufacturers of the particular type of replacement part listed."
"Reproduction or use, without express permission, of editorial or pictorial con-
tent, in any manner, is prohibited. No patent liability is assumed with respect to
the use of the information contained herein. Copyright 1951 by Howard W.
Sams & Co., Inc., Indianapolis, Indiana, U. S. of America. Copyright under In-
ternational Copyright Union. All rights reserved under Inter-American Copyright
Union(1910) by Howard W.Sams 8. Co., Inc."
Printed in U. S. of America
DATE 7-51
SET 140
FOLDER 7
