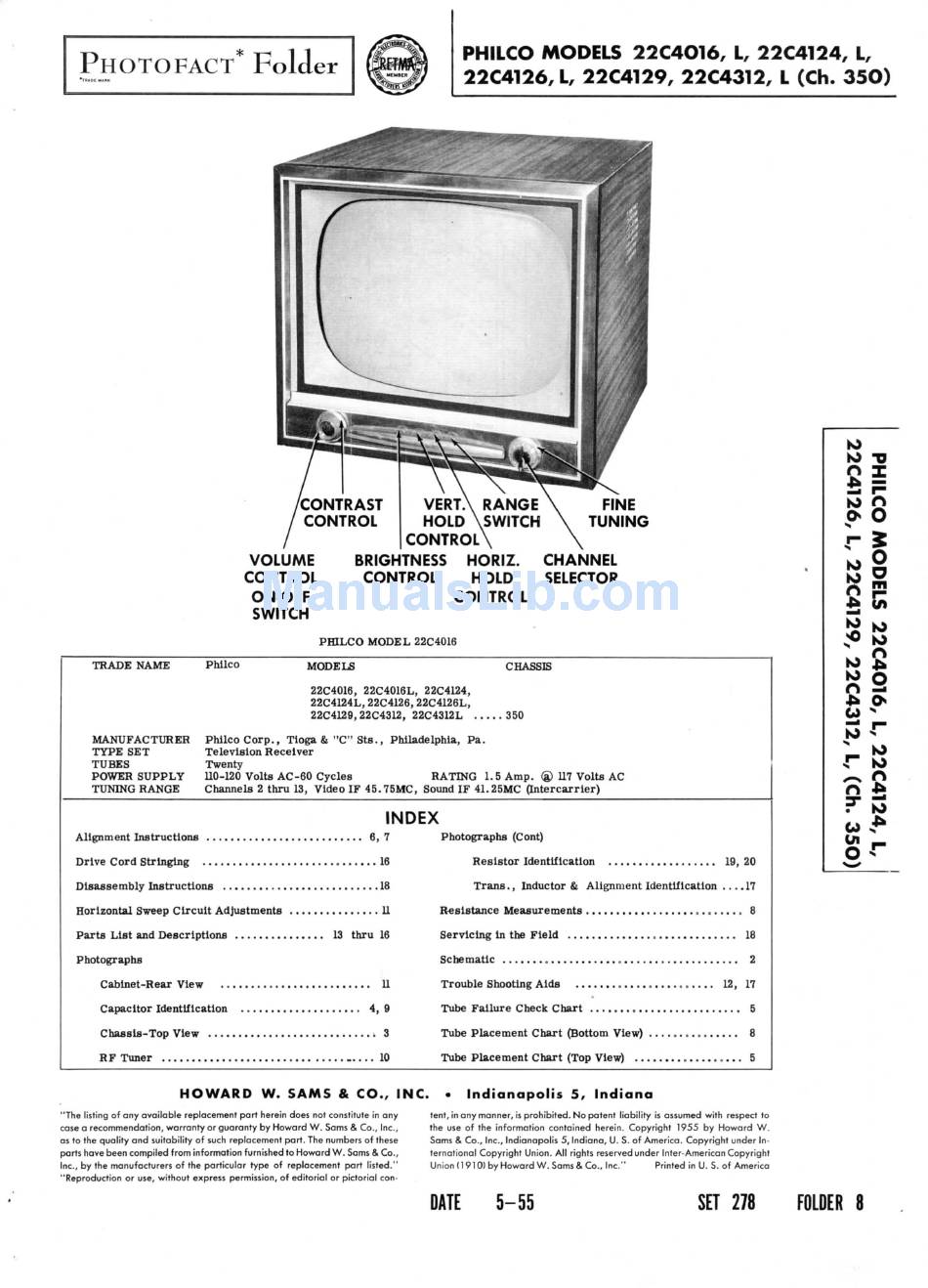

Philco 2C4O16 Manual

PHOTO FACT* Folder
PHILCO MODELS 22C4O16, L, 22C4124, L,
22C4126, L, 22C4129, 22C4312, L (Ch. 35O)
VOLUME
CONTROL
ON-OFF
SWITCH
VERTA RANGE
HOLD \SWITCH
CONTROL
BRIGHTNESS HORIZ.
CONTROL HOLD
CONTROL
PHILCO MODEL 22C4016
FINE
TUNING
CHANNEL
SELECTOR
TRADE NAME Philco MODELS CHASSIS
22C4016, 22C4016L, 22C4124,
22C4124L, 22C4126, 22C4126L,
22C4129, 22C4312, 22C4312L 350
MANUFACTURER Philco Corp., Tioga & "C" Sts., Philadelphia, Pa.
TYPE SET Television Receiver
TUBES Twenty
POWER SUPPLY 110-120 Volts AC-60 Cycles RATING 1.5 Amp. ® 117 Volts AC
TUNING RANGE Channels 2 thru 13, Video IF 45.75MC, Sound IF 41.25MC (Intercarrler)
INDEX
Alignment Instructions 6 , 7
Drive Cord Stringing 16
Disassembly Instructions 18
Horizontal Sweep Circuit Adjustments 11
Parts List and Descriptions 13 thru 16
Photographs
Cabinet-Rear View 11
Capacitor Identification 4, 9
Chassis-Top View i 3
RF Tuner 10
Photographs (Cont)
Resistor Identification 19, 20
Trans., Inductor & Alignment Identification ... .17
Resistance Measurements 8
Servicing in the Field 18
Schematic 2
Trouble Shooting Aids 12, 17
Tube Failure Check Chart 5
Tube Placement Chart (Bottom View) 8
Tube Placement Chart (Top View) 5
