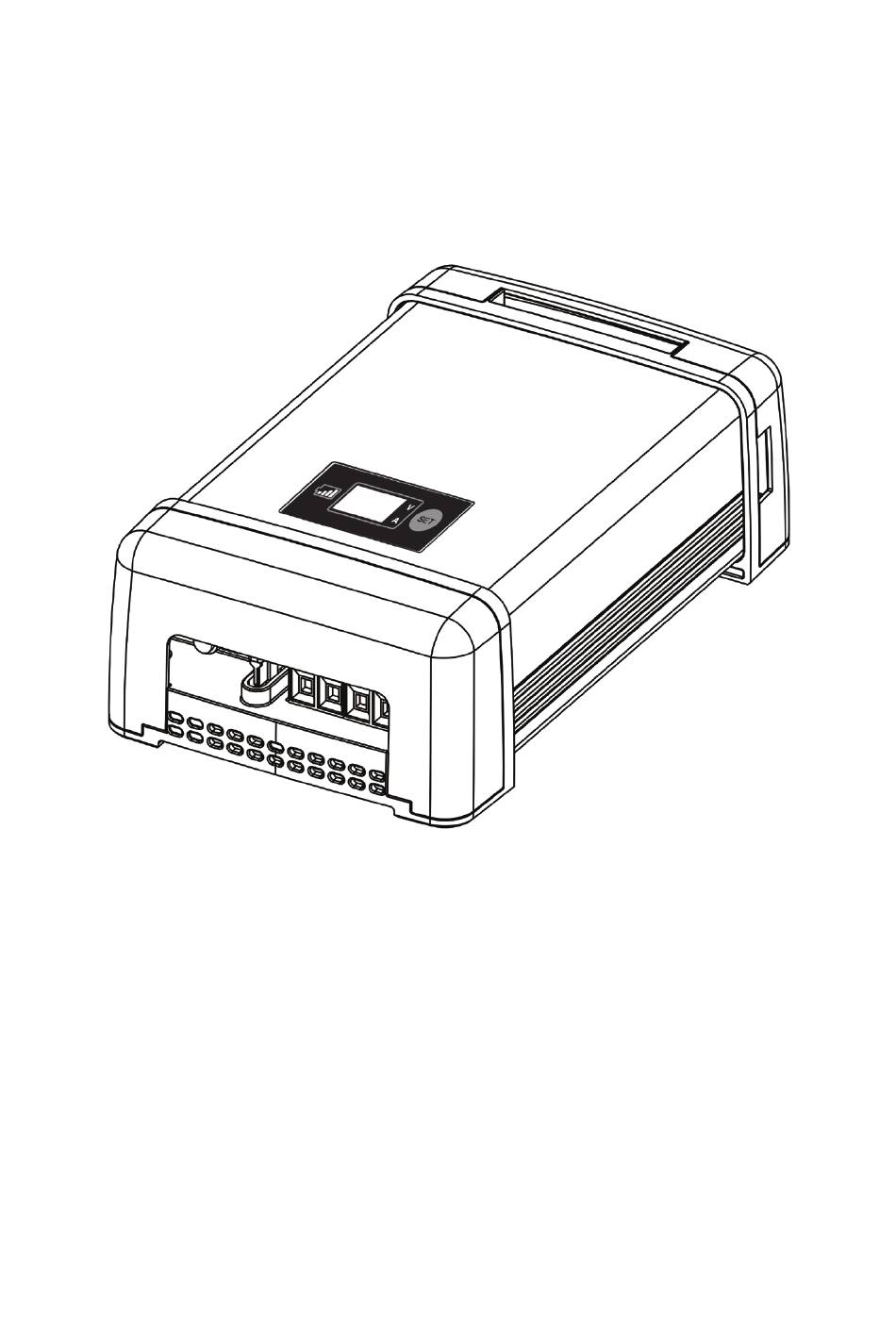

LBC-6140 / 6220
12V 40A / 24V 20A Pro. Lithium Charger
Operation manual
Keep this manual in a safe place for quick reference at all times.
This manual contains important safety
and operation instructions for correct use of the battery charger.
Read through the manual and pay special attention to the markings
and labels of the charger, battery and equipment connected to the battery system.
Pay special attention to WARNING & PRECAUTIONS used in this manual.
Advertisement
Table of Contents
Related Manuals for Manson Engineering Industrial LBC-6140
Summary of Contents for Manson Engineering Industrial LBC-6140
- Page 1 LBC-6140 / 6220 12V 40A / 24V 20A Pro. Lithium Charger Operation manual Keep this manual in a safe place for quick reference at all times. This manual contains important safety and operation instructions for correct use of the battery charger.
-
Page 2: Table Of Contents
Index Quick user guide Warning / Cautions Introduction Using the charger Battery Charger installation and Connection 5 - 7 Cable size recommendation for 40A Protection Specification Smartphone Apps Mounting Hold Diagram... -
Page 3: Quick User Guide
Quick user guide Check the rating label for correct AC voltage. Connect to AC socket digit LED. After displaying the version, the voltage and current scroll display. Disconnect AC and connect output to battery then reconnect AC. USING THE SET BUTTON digit LED Displays Note: 3 means Lithium;... -
Page 4: Warning / Cautions
No part of this publication may be reproduced, or transmitted in any form or by any means without the written permission from Manson Engineering Industrial Ltd. Changes in the manual. Manson Engineering Industrial Ltd. has the right to update and change the content of this manual without any prior notice and obligation. Disclaimer Exclusions for documentation, Indemnity and Product application. -
Page 5: Introduction
Introduction This pro charger is designed for applications that demand adaptive charging and LiFePO4 (LFP) batteries. Battery with or without load can be Lithium （Lit） connected to the charger all the time and the charger will keep on monitoring the battery. It has Battery over temperature or low temperature protection function when connected the supplied battery temperature sensor. -
Page 6: Using The Charger
Using the charger After checking for the correct ac voltage on the rating label and connection to AC supply, 3 digits LED scroll displaying the voltage and current after displaying the version The default battery type Lithium is on showing charger is in good working condition. Press and hold the SET button until the 3 digits LED display flashing, the charger now goes into the setting MENU. -
Page 7: Battery Charger Installation And Connection
Battery Charger installation and Connection Before connecting or disconnecting the charging cable, unplug AC cord from the mains. First connect the Red cable to Positive + terminal of charger and the battery Positive + Pole. Then connect the Black cable to the Negative – terminal and the Negative – Pole of the battery. - Page 8 LiFePO4 (LFP) battery Caution: Never charge LFP battery when its temperature is below 0°C. There is a special charge algorithm and treatment for Lithium FePO4 (LFP) batteries to ensure safe and optimal charging adaptive to the special chemistry of the battery which is quite different to Lead Acid battery. There are only two active charging stages namely Bulk and inactive (no charging current) Standby Stage.
-
Page 9: Cable Size Recommendation For 40A
30Amp first, then 20Amp and finally 1Amp. And LED display “F01”. Short circuit protection by constant current method and auto reset when fault is clear. Reversed polarity protection with 25Amp x2 (LBC-6140)/ 25Amp (LBC-6220) thermal fuse. -
Page 10: Specification
Specification Model LBC-6140 LBC-6220 AC Input Voltage 190-264VAC 50Hz~ AC Full Load ≤5A No Load Input Current (Standby) ≤120mA Output (Charge) Voltage Selection Absorption Float Absorption Float Lithium 12.6V 12.2V 25.2V 24.4V LiFePO4 14.6V 13.8V 29.2V 27.6V DC Source Mode 12.0-15.0V... -
Page 11: Smartphone Apps
Smartphone Apps * This software is provided by 3rd party. It is no warranty from Manson on this software. Manson undertakes no responsibility or liability of losses and damages. This apps support Manson LBC-6xxx series with WiFi version. Please go to App Store or Google Play to search “Magnett Charger Monitor” apps. -
Page 12: Mounting Hold Diagram
Mounting Hold Diagram P.10...
