- Page 1 SWITCHING MODE PROGRAMMABLE AUTOMATIC CHARGER Lead-Acid Battery SBC-Series User's Manual Rev.0 06/2003 7673-8112-0000...
- Page 2 Use charger only for Lead-Acid Batteries. Check that the model number of the charger matches the voltage and capacity of the battery. Model no. Battery Voltage Maximum Charging Current Recommended Battery Capacity SBC-8112 50-120 AH SBC-8125 120-200 AH SBC-8215 50-120 AH ( Table 1 ) Please refer to battery manufacturer’s specific recommended values for setting Boost(Bulk)

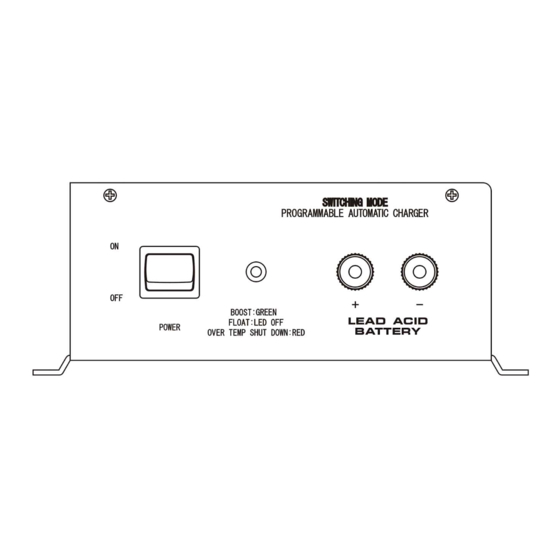

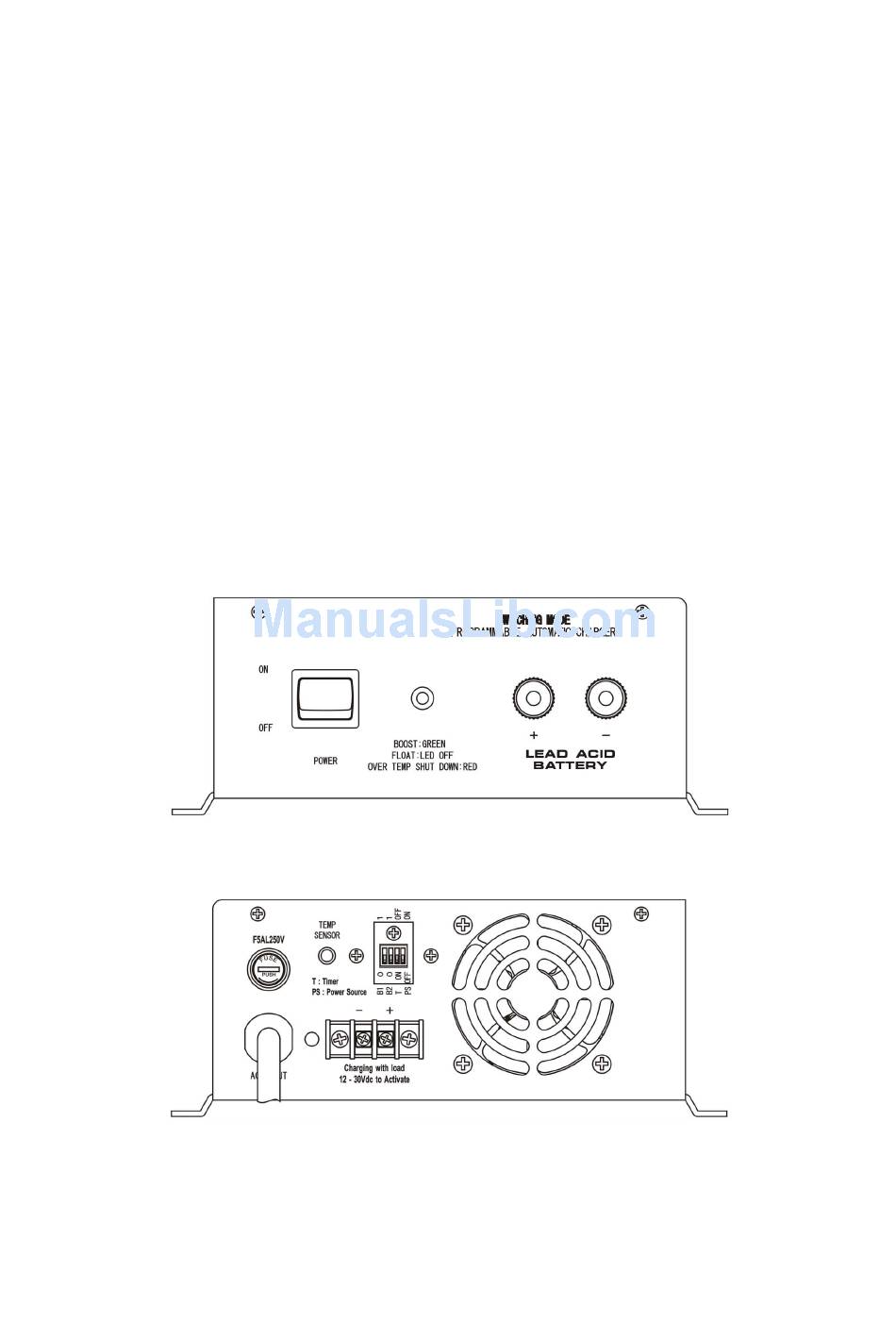

- Page 3 SBC-Series Switching Mode Programmable Automatic Charger User Manual 3. CONTROL AND INDICATORS FIG.1 FRONT VIEW Power ON/OFF Button, power on with light LED INDICATOR Green LED Off Color Status Boost Charge Mode Over-temperature Shutdown Float Charge mode ( TABLE 2 ) OUTPUT TERMINAL (CONNECTED TO LEAD ACID BATTERY) FIG.2 BACK VIEW Temperature Sensor Terminal...
- Page 4 Temperature Sensor Terminal and attach it firmly on the side of the battery ( FIG. 3 ). For 12V system( SBC-8112, 8125 ), it will regulate at -20mV/degree C increase. For 24V system( SBC-8215 ), it will regulate at -40mV/degree C increase.
- Page 5 When the external load is off, the charger will resume its normal Boost to Float cycle automatically. Long term continuous loads should be limited to 50% of the charger rated output. Model No. Continuous Rating of the Load SBC-8112 SBC-8125 10 A SBC-8215 Table 5 1.
- Page 6 SBC-Series Switching Mode Programmable Automatic Charger User Manual ( Fig.4 Setup for charging with external load ) Wire Size Max. one-way distance ( feet ) Max. one-way distance ( feet ) (AWG) for 2% voltage loss (10A) for 2% voltage loss (20A) 11.5 28.5 14.5...
- Page 7 When the temperature of the battery reaches around 60 degree C, the over-temperature shutdown will be triggered and the charger will be shut down completely to avoid damages to the battery and the charger. 5. SPECIFICATIONS Model SBC-8112 SBC-8125 SBC-8215 Battery System 50-120 AH...
