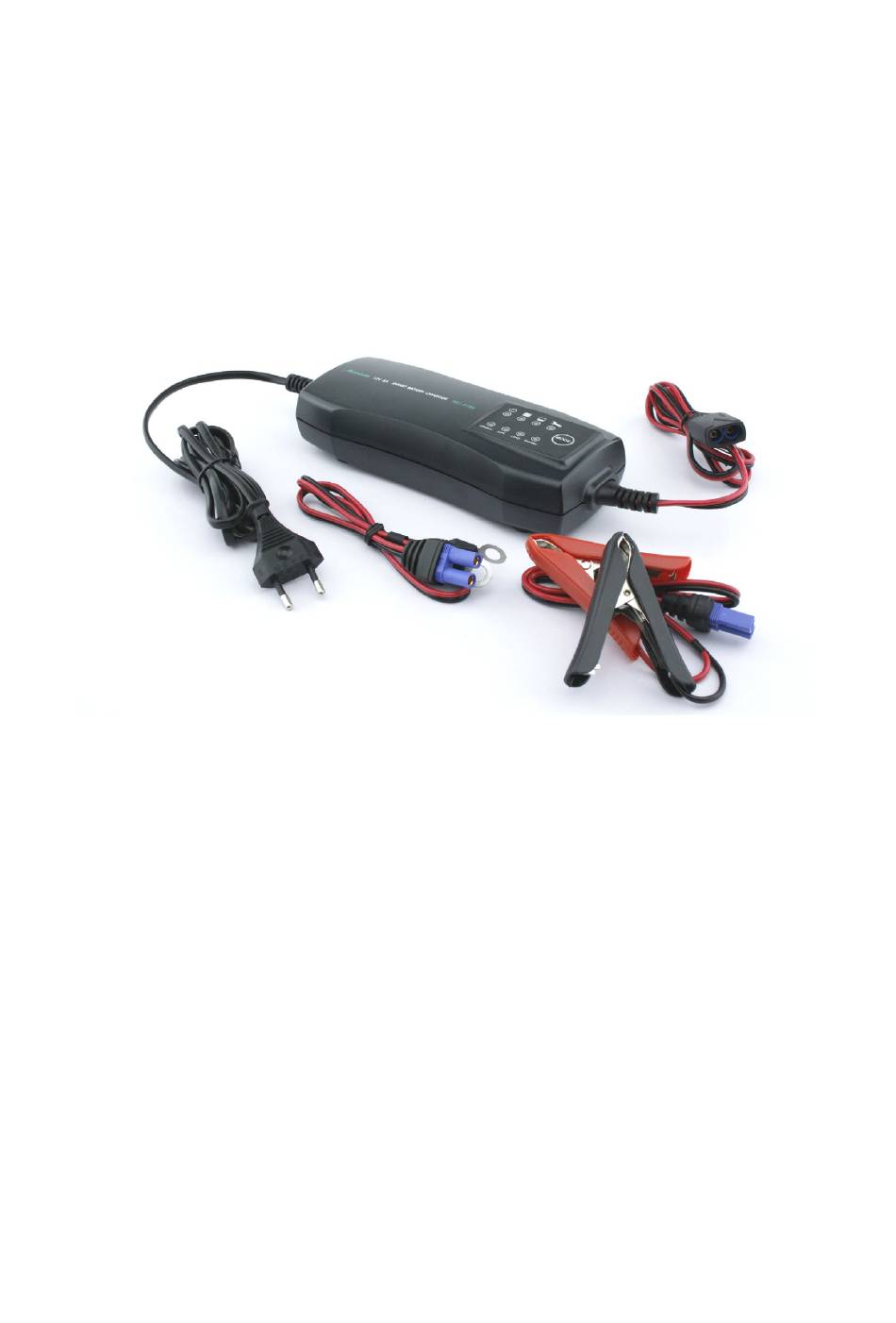

SBC-8188 / 8288
Smart Charger
User's Manual
Keep this manual in a safe place for quick reference at all times.
This manual contains important safety and operation instructions for correct use of the battery charger.
Read through the manual and pay special attention to the markings and labels of the charger,
battery and equipment connected to the battery system.
.
Pay special attention to WARNING & PRECAUTIONS used in this manual
7673-8188-0000
REV.0 2018/12
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Manson Engineering Industrial SBC-8188
Summary of Contents for Manson Engineering Industrial SBC-8188
- Page 1 SBC-8188 / 8288 Smart Charger User’s Manual Keep this manual in a safe place for quick reference at all times. This manual contains important safety and operation instructions for correct use of the battery charger. Read through the manual and pay special attention to the markings and labels of the charger, battery and equipment connected to the battery system.
- Page 2 No part of this publication may be reproduced, or transmitted in any form or by any means without the written permission from Manson Engineering Industrial Ltd. Changes in the manual. Manson Engineering Industrial Ltd. has the right to update and change the content of this manual without any prior notice and obligation. Disclaimer Exclusions for documentation, Indemnity and Product application.
- Page 3 Introduction A high power smart charger designed for fast & safe charging of Lead Acid and LiFePO4 batteries with optional WiFi / Bluetooth connectivity for remote monitoring of charging status of battery. The advanced Micro-processor control allow specific charging profile for Lead, AGM and LiFePO4 battery from 16AH to 200AH.
-
Page 4: Operation
Operation Display Indications Standby Mode Steady light on: Standby AC connected but charger not yet connected to battery Blinking light on: Battery connected, charger ready for battery selection. User has one minute to select battery before charger returns to last selected battery type. Check &... - Page 5 Connection & Selection of Battery Type Plug in the charger to AC mains (200- 240V) wall socket. The display LED light up one by one as charger goes through a series of self checks. Then all lights are on together and all LEDs are off to indicate the end of self checks except the “Standby” indicator. There is no voltage at the output terminals to safeguard the user.
- Page 6 Check Mode and Desulphate Charging for LEAD BATTERY The desulphate charging can recondition slightly sulphated LEAD battery only. A. In the case the “Check Mode” indication and the STANDBY LED are steady on for longer than a minute, the charger is in desulphate charging. After some time, if desulphation of the battery is successful, the charger will switch to normal charging and the “Check Mode”...
-
Page 7: Specifications
Specifications Models SBC-8188 SBC-8288 AC Input 200-240V, 50/60Hz~, 1.7A Max. Maximum Output Charging Current Max. Power 115W Efficiency >78% Maximum Output Charging Current for LEAD/ AGM/ LiFePO4 Absorption Voltage (LEAD/ LiFePO4) 14.4V 28.8V Absorption Voltage (AGM) 14.7V 29.4V Absorption Voltage for LEAD (Low Temp. Mode) 14.7V...
