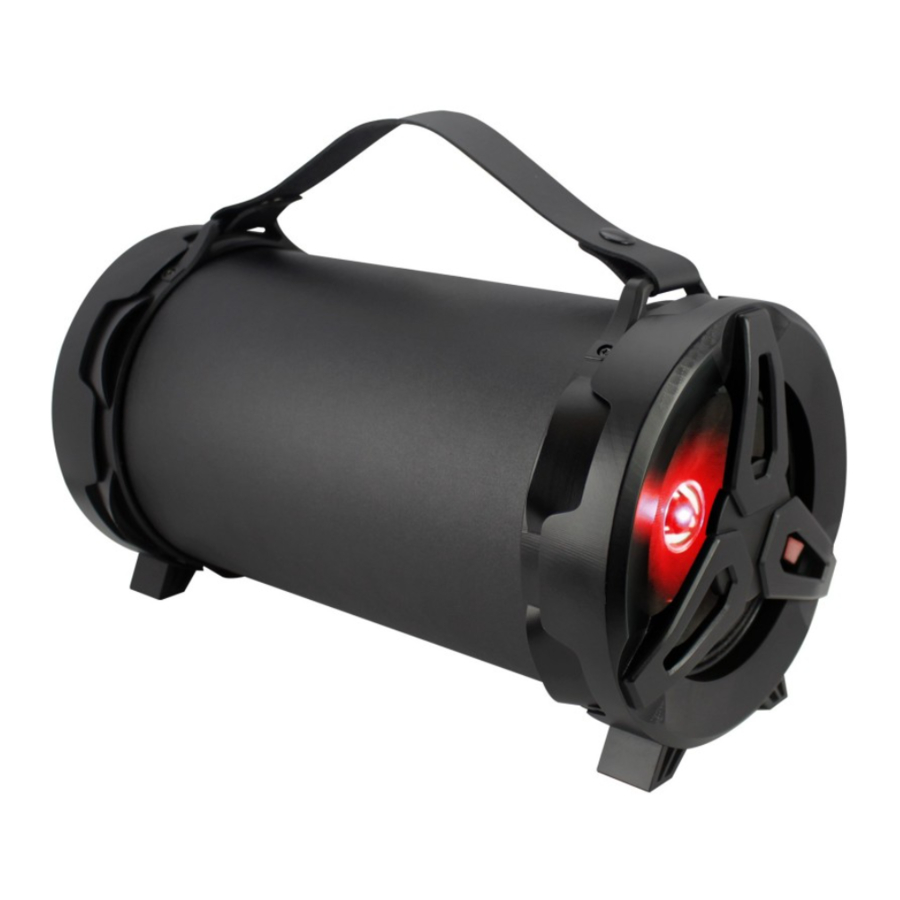

Magnavox MMA3717 - Portable Speaker with Color Changing RGB Lights Manual

LOCATION CONTROLS

1. DC 5V (Micro USB) Port (For charging only)
2. Red LED Charging Indicator
3. Power ON-OFF/Knob
4. (Skip Backward) Buttton
5. MIC VOL (Microphone Volume Control) Knob
6. (Play/Pause) Buttton
7. (Skip Forward) Buttton
8. ECHO (Microphone Echo Volume Control) Knob
9. M/ (Mode/Decorative LED Lights On-Off) Button
10. MIC (Microphone InputJack)
11. MICRO SD (TF) Card Slot
12. AUX (Aux/Line In) Jack
13. USB Port
14. LED Display
15. Speaker with Decorative LED Lights

POWER SOURCE

The unit has a built-in Li-ion rechargeable battery, charge it before first time use or when it is drained as follows:

1. Connect the small plug from the supplied USB Connection Cable to the DC 5V (Micro USB) Port on the unit.
2. Connect the full size USB Plug from the supplied USB Connection Cable to the USB Port on the supplied USB Charger.

3. When charging, the Red LED Charging Indicator on the unit will illuminate. When charging is complete, it will turn off.
4. When charging, you can also play and listening music at the same time.

NOTES:

Your battery will last longer if you're following these simple guidelines for caring and storing:

1. Before first time use, recharge the unit approximately 5 hours until the unit is fully charged.
2. Charge and store the unit within the temperature range of 5°C - 35°C (40°F - 95°F).
3. Do not overcharge (longer than 24 hours). Excessive charging or running the unit until battery fully drains will damage battery. Battery life will be extended if you keep the battery fully charged.
4. Battery life naturally shortens slowly over time.
5. The rechargeable battery incorporated in this product is not user replaceable.

OPERATION

General Operation

1. Recharge the built-in Li-ion battery as previously instructed.
2. Turn the Power ON-OFF/Volume Control Knob clockwise to power on the unit and set the volume level as desired. The LED Display and Decorative LED Lights on the speaker will illuminate.
3. Press the M/ Button repeatedly to switch to desired playback mode. The unit will display with your selection (see list below):

   Playback Modes:	Showing on Display
   USB	"USB" will appear on the display; music in the USB Device will be playback automatically.
   Micro SD (TF) Card	"SD" will appear on the display music in the card will be playback automatically.
   FM Radio	Radio frequency will appear on the display.
   AUX (Aux/Line in)	"" will appear on the display.
   BT (Bluetooth)	"bLUE" will appear on the display (and blink).

   Note:
   If the AUX (Aux/Line in) plug, Micro SD (TF) Card and/or USB Device had NOT been inserted into the unit, the correspondence selection will not available.
4. During playback, turn the Power ON-OFF/Volume Control Knob to adjust volume level as desired.
5. Press and hold the M/ (Mode/Decorative Light On-Off) Button to turn off the Decorative LED Lights; press and hold again to turn it back.
6. When finished listening, turn the Power ON-OFF/Volume Control Knob counterclockwise until Click sound is heard to shut off the unit.

BT Mode

BT (Bluetooth) pairing

First time use or re-pairing the unit to a new BT Device, pairs as follows:

1. Power on the unit and enter to BT mode as previously instructed. "bLUE" will appear on the display and blink.
2. Power on the external BT Device and enter to BT search mode. Start pairing following the on screen instructions from the external BT Device. When paired. "bLUE" on the display will stop blinking.
3. If pairing is complete you may now play music with your external BT Device.
4. During playback:
   • Turn the Power ON-OFF/Volume Control Knob to adjust volume level as desired.
   • Press the Button on the unit to pause, press again to resume normal playback.
   • Press the or buttons repeatedly to skip tracks.
5. When finished listening, turn the Power ON-OFF/Volume Control Knob counterclockwise until "Click" sound is heard to shut off the unit.

Notes:

• When the external BT Device searches for the unit, our model number "MMA3717" will appear on the display of external BT Device.
• If while pairing you are asked for a code please try "0000" or "1234".

Normal operation after pairing

1. Power on the external BT Device and enter to BT playback mode.
2. Power on the unit and enter to BT mode as previously instructed. "bLUE" will appear on the display and blink.
3. Wait a few seconds until the unit is automatically paired to the external BT Device. "bLUE" on the display will stop blinking.
4. After pairing is complete you may now play music with your external BT Device.

FM Radio

1. Power on the unit and enter to radio mode as previously instructed. Radio frequency will appear on the display.
2. In first time use (or relocated the unit to a new location), search and store the available FM stations by press the Button. The unit will automatically to search and store all available FM radio stations then play the first stored FM station. Press the or buttons repeatedly to select and plays the desired stored radio station.
3. During playback, turn the Power ON-OFF/Volume Control Knob to adjust volume level as desired.
4. When finished listening, turn the Power ON-OFF/Volume Control Knob counterclockwise until "Click" sound was heard to shut off the unit.

Antennas:

This unit has a built-in FM antenna, which provides adequate reception in most areas. If reception is weak, reassemble the other direction/location to improve reception.

AUX (Aux/Line in)

Listen from an external Audio Player such as MP3 Player, Discman...etc.

1. In power off mode, connect one end of the supplied Audio Connection Cable to the AUX Out/Line Out/Phone Jack on the external Audio Player.
2. Connect the other end of the cable to the AUX (Aux/Line in) Jack on the unit as illustrated below:

3. Power on the unit and enter to AUX (Aux/Line in) mode as previously instructed. "" will appear on the Display.
4. Play the music on the connected Player as usual. (Make sure the volume level of the connected Audio Player is turned to high level.)
5. During playback:
   • Turn the Power ON-OFF/Volume Control Knob to adjust volume level as desired.
   • Press the Button to mute the sound, press again or turning the Power ON-OFF/Volume Control Knob to turn the sound back.
6. When finished listening, turn the Power ON-OFF/Volume Control Knob counterclockwise until "Click" sound is heard to shut off the unit.

USB

To play the music in USB Device:

1. In power off mode, connect the USB Device into the USB Port on the unit as illustrated below:

2. Power on the unit and enter to USB mode as previously instructed:
   • "USB" will appear on the display.
   • Music in the USB Device will be playback automatically.
3. During playback:
   • Turn the Power ON-OFF/Volume Control Knob to adjust volume level as desired.
   • Press the Button on the unit to pause, press again to resume normal playback.
   • Press the or buttons repeatedly to skip tracks.
4. When finished listening, turn the Power ON-OFF/Volume Control Knob counterclockwise until "Click" sound is heard to shut off the unit.

Micro SD (TF) Card

To play the music in Micro SD (TF) Card:

1. In power off mode, insert the Micro SD (TF) Card (not included) into the Micro SD (TF) Card Slot on the unit with contacts facing down as illustrated below:

2. Power on the unit and enter to Micro SD (TF) Card mode as previously instructed:
   • "SD" will appear on the display.
   • Music in the card will be playback automatically.
3. During playback:
   • Turn the Power ON-OFF/Volume Control Knob to adjust volume level as desired.
   • Press the Button on the unit to pause, press again to resume normal playback.
   • Press the or buttons repeatedly to skip tracks.
4. When finished listening, turn the Power ON-OFF/Volume Control Knob counterclockwise until "Click" sound is heard to shut off the unit.

Notes:

• Up to 16 GB Micro SD (TF) Card/USB Device supported.
• When inserting the Micro SD (TF) Card/USB Device, make sure the direction you selected is correct.
• Never insert violently to avoid damaging the Micro SD (TF) Card/USB Device or the unit. If it doesn't work, please check if the direction is correct.
• Before replacing Micro SD (TF) Card/USB Device, make sure the unit has been powered off.
• You also need to download the desired music in MP3 format into the Micro SD (TF) Card/USB Device before insert into the unit.

To sing with playing music

To sing while music is playing:

1. Power on the unit and plays music in any modes as instructed earlier.
2. Connect the plug from the Microphone (not included) into the MIC (Microphone Input) Jack on the unit.
3. Turn the MIC VOL (Microphone Volume Control) Knob to adjust the sound level of microphone as desired.
4. Turn the ECHO (Microphone Echo Effect Control) Knob to adjust the echo effect of microphone as desired.

Note:
If feedback noise (high audio frequency noise) is hearing from the speaker, turn the Power ON-OFF/Volume Control Knob counterclockwise to reduce the microphone sound level or moving the Microphone away from the speaker.

TROUBLE SHOOTING GUIDE

Check the following before requesting service:

SYMPTOM	POSSIBLE CAUSE	POSSIBLE SOLUTION
Can't power on	Built-in battery drained	Recharge the battery
	The unit in power off mode	Turn the Power On-Off/Volume Control Knob clockwise unit "Click" sound was heard to power on the unit.
No sound or sound weak	Volume of the unit was set to minimum position	Increase the volume level by turn the Power On-Off/Volume Control Knob clockwise
	Volume level of paired/connected device is in low level	Rise the volume level of the paired/connected device
Sound distortion	Volume level too high	Reduce the volume level by turn the Power On-Off/Volume Control Knob counterclockwise
	Volume level of the paired/ connected device too high	Reduce the volume level of the paired/ connected device
BT not functioning	The external BT device had NOT paired to the unit	Pair the external BT device to the unit
	The external BT device too far from the unit	Place the external BT device close to the unit
Radio reception not good	The location not good for radio reception	Reassemble the unit to other direction/ location to improve reception
No radio station received	The unit was moved in a new location or the available FM stations had not stored into the unit	Press the Button to search and store all the available FM stations again

GENERAL SPECIFICATIONS

Power Source:	Built-in DC 3.7 V, 1200 mAh (4.44 WH) rechargeable Li-ion Battery; recharge by DC 5V through the DC 5V (Micro USB) Port
Impedance of Speakers:	10 W; 4 Ω
Audio Power:	6 W (RMS)
FM Radio Frequency:	87.5-108 MHz
BT Version:	4.1
BT Operation Distance:	Up to 32 Feet in open area

PACKAGE INCLUDES

1 x Owner's Manual
1 x USB Connection Cable (For Charging only)
1 x USB Charger (Input: AC 110-240V~, 50/60Hz, 0.4A; Output: DC 5V, 1A, )
1 x Audio Connection Cable with 3.5 mm plugs

SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO CHANGE WITHOUT NOTICE
