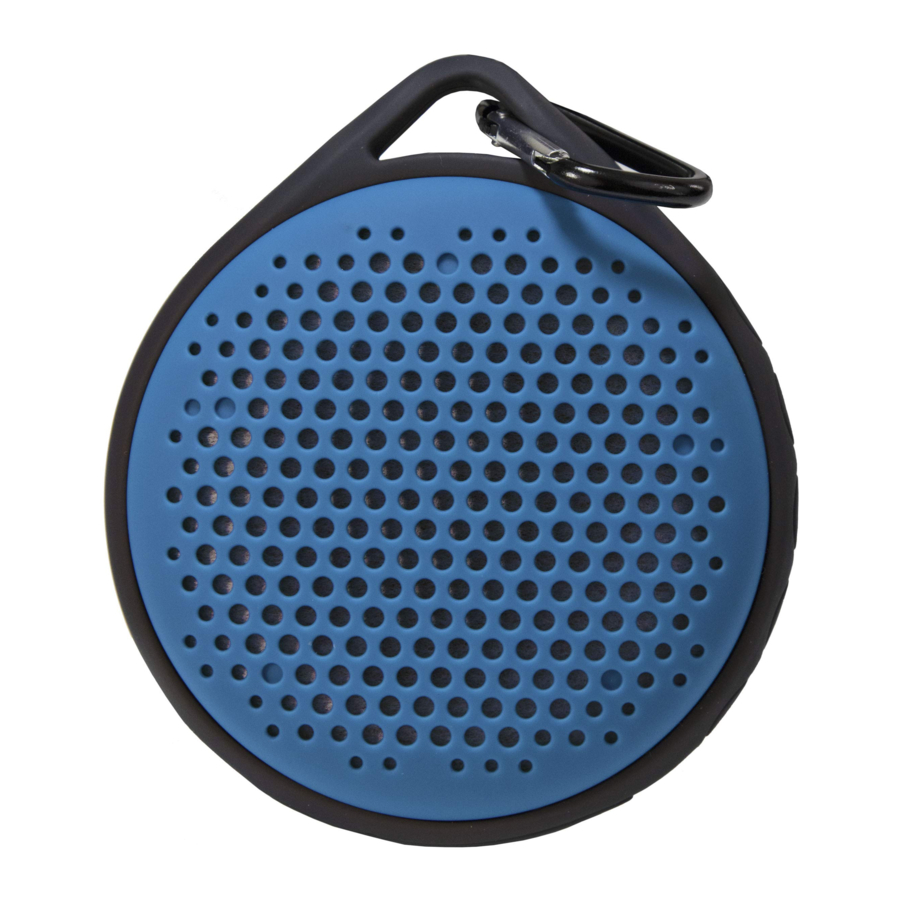

LOCATION OF CONTROLS

1. (Decorative LED Lights On/Off and Blinking Modes Selection) Button
2. (Power On/Off and Mode Selection) Button
3. Button
4. Button
5. Button
6. Micro USB Port (For Charge only)
7. Micro SD Card Slot
8. AUX (in) Jack
9. Rubber Cover (This cover is for water and dusts Ingress Protection; always make sure it is completely closed)
10. Metallic Buckle
11. Built-in Microphone
12. Decorative LED Lights
13. Indicators

POWER SOURCE

The unit has a built-in Li-ion rechargeable battery, recharge it before use or when it is drained as follows:

1. Open the Rubber Cover on the unit.
2. Connect the Micro USB Plug from the supplied USB Connection Cable to the Micro USB Port.
3. Connect the full sized USB Plug from the supplied USB Connection Cable to the USB Port on Computer or USB Charger (Not included). Charging will automatically start.
   • During charging, the Red Charging Indicator on the front of unit will illuminate. When finished, it will turn off.
   • During charging, you can also listen to music at the same time.


NOTES:
The Rubber cover is for water and dusts Ingress Protection; always make sure it is completely closed.

Your battery will last longer if you follow these simple guidelines for caring and storing.

1. Before first time use, charge it approximate 3 hours until the unit is fully charged.
2. Recharging and store the unit within the temperature range of 5°C~35°C (40°F~95°F).
3. Do not over charge longer than 24 hours. Excessive charging or running the unit until battery fully drains will damage battery. Battery life will be extended if you keep the battery fully charged.
4. Battery life naturally shortens slowly over time.
5. The rechargeable battery incorporated in this product is not user replaceable.

OPERATION

General Operation:

1. Recharge the built-in Li-ion battery as previously instructed.
2. Press and hold the Button approximately 3 seconds to power on the unit. The Blue Indicator on the front of unit will illuminate.
3. Press and release the Button repeatedly to switch to desired playback mode. The unit will sound the prompt with your selection (see list below):

   Playback Mode:	Voice Prompt:
   BT (Bluetooth)	Bluetooth ready for connection
   Micro SD Card	Memory Card
   AUX IN (LINE IN)	Line in

   Note: If the Micro SD Card is NOT inserted into the SD Card Slot and/or the External Audio Player is NOT connecting to the AUX (in) Jack, the selection of Micro SD Card/AUX IN (LINE IN) will not available.
4. During playback, press and hold the or Buttons to adjust volume level as desired.
5. Press the Button repeatedly to turn On/Off and/or set the blinking modes of the Decorative LED Lights.
6. When finished listening, press and hold the Button to shut off the unit.

BT Mode:
BT (Bluetooth) pairing:

First time use or re-pairing the unit to a new BT Device, pair as follows:

1. Power on the unit and enter to BT mode as previously instructed. The Blue Indicator on the front of unit will illuminate and blink. The unit also will sound a prompt "Bluetooth ready for connection".
2. Power on the external BT Device and enter to BT searching mode. Start pairing following the on screen instructions from the external BT Device. When paired, the unit will sound a prompt "Bluetooth connected" and the Blue Indicator will stop blinking.
3. If pairing is complete you may now play music and answer calls with your external BT Device.
4. During playback:
   • Press theButton on the unit to pause, press again to resume normal playback.
   • Press and hold the or Buttons to adjust volume level as desired.
   • Press and release the or Buttons repeatedly to skip tracks.
5. If the unit is paired to a Cell Phone and a call is incoming during an active music session, press the Button to pause the music playback then speak to the built-in microphone to answer the call. When your call is complete, press the Button to end the call and resume to music playback.
6. When finished listening, press and hold the Button to shut off the unit.

Notes:

• When the external BT Device searched the unit, our model number "MMA3623" will appear on the display of external BT Device.
• If while pairing you are asked for a code please try "0000" or "1234".

Normal operation after pairing:

1. Power on the external BT Device and enter to BT playback mode.
2. Power on the unit and enter to BT mode as previously instructed. The Blue Indicator on the front of unit will illuminate and blink. The unit also will sound a prompt "Bluetooth ready for connection".
3. Wait a few seconds until the unit is automatically paired to the external BT Device. The unit will sound a prompt "Bluetooth connected" and the Blue Indicator will stop blinking.
4. After pairing is complete you may now play music and answer calls with your external BT Device.

AUX (in):
To listen from the external Music Player such as a MP3 Player, Discman...etc.

1. Open the Rubber Cover on the unit.
2. Connect one end of the supplied Audio Connection Cable to the AUX Out/Line Out/Phone Jack on the external Audio Player.
3. In power on mode, connect the other end of the cable to the AUX (in) Jack as illustrated follows. The unit will turn to AUX (in) mode automatically and will sound a prompt "Line in".

   Note: If the unit is not in AUX In (Line in) mode or you want to switch to other playback modes, press and release the Button to switch to desired playback mode.
4. Play the music on the connected Player as usual. (Make sure the volume level of the connected Audio Player is turned to high level.)
5. During playback:
   • Press and hold the orButton to adjust volume level as desired.
   • Press the Button to mute the sound, press again to turn the sound back.
6. When finished listening, press and hold the Button to shut off the unit.

TF (Micro SD):
To play the music in Micro SD Card:

1. Open the Rubber Cover on the unit.
2. In power off mode, insert the Micro SD Card (not included) into the Micro SD Card Slot on the unit with contacts facing up as illustrated below:

3. Power on the unit and enter to Micro SD Card mode as previously instructed. The unit also will sound a prompt "Memory Card" then automatically play the music stored on the card.
4. During playback:
   • Press the Button to pause, press again to resume normal playback.
   • Press and hold the or Buttons to adjust volume level as desired.
   • Press and release the or Buttons repeatedly to skip tracks.
5. When finished listening, press and hold the Button to turn off the unit.

Notes:

• Up to 16 GB Micro SD Card the unit supports to play.
• Before replacing Micro SD Card, make sure the unit has been powered off.
• When inserting the Micro SD Card, make sure the direction you selected is correct. Never insert violently to avoid damaging the Micro SD Card or the unit.
• If it doesn't work, please check if the direction is correct.
• You also need to download the desired music in MP3 format into the Micro SD Card before insert into the unit.

TROUBLESHOOTING

Check the following before requesting service:

SYMPTOM	POSSIBLE CAUSE	POSSIBLE SOLUTION
Can't power on	Built-in battery drained	Recharge the built-in battery.
No sound or sound weak	Volume of the unit was set to minimum position	Increase the volume by press and hold the Button
	Volume level of paired/connected device is in low level	Rise the volume level of the paired/connected device
Sound distortion	Volume level too high	Reduce the volume level by press and hold theButton
	Volume level of the connected/paired device too high	Reduce the volume level of the connected/paired device
BT not functioning	The external BT Device had NOT paired to the unit	Pair the external BT Device to the unit.
	The external BT device too far from the unit	Place the external BT device close to the unit

SPECIFICATIONS

Power Source	Built-in DC3.7V, 1000 mAH (3.7WH) rechargeable Li-ion battery; Recharge by DC5V through Micro USB Port
Dusts/Water Ingress Protection Level	IP67
Impedance of Speakers	5W; 3 ohm
Audio Power	1.5W (RMS)
BT Version	4.1
BT Operation Distance	32 Feet in open area

PACKAGE INCLUDES

1 x Owner's Manual
1 x USB Connection Cable (For charge only)
1 x Audio Connection Cables with 3.5mm Plugs
SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO CHANGE WITHOUT NOTICE.
