Magnavox MHT843n Owner's Manual

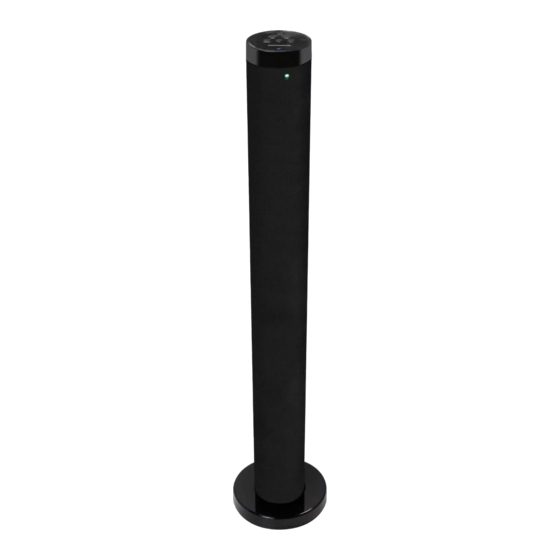

Tower speaker with bluetooth wireless technology
Hide thumbs Also See for MHT843n:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MHT843n and is the answer not in the manual?

Questions and answers

Related Manuals for Magnavox MHT843n

Summary of Contents for Magnavox MHT843n

  • Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EMOVE COVER (OR BACK). NO USER-SERVICEABLE ART NSIDE EFER SERVICING T UALIFIED ERVICE PERSONNEL. The lightning flash with arrowhead symbol FCC NOTICE: within an equilateral triangle is intended to alert This equipment has been tested and found to comply the user to the presence of uninsulated...
  • Page 3 Portable Cart Warning...
  • Page 4 17) Overloading Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. 18) Object and liquid entry Never push objects of any kind into the product through openings as they may touch dangerous voltage points or short out parts that could result in fire or electric shock.

  • Page 5: Location Of Controls

    LOCATION OF CONTROLS TOP PANEL AUX IN TUNE- / VOL- TUNE+/ VOL+ STANDBY/ RESET SOURCE FRONT VIEW REAR PANEL 1. AUX IN Jack FM ANT /TUNE-/VOL- (Skip backward/Tuning down/ Volume down) Button /TUNE+/VOL+ (Skip forward/Tuning up/ Volume up) Button LINE IN 4.

  • Page 6: Battery Installation (Remote Control)

    REMOTE CONTROL /STANDBY Button RESET 2. RESET Button 3. VOL- (Volume Down) Button 4. SOURCE Button TUNE TUNE+ /TUNE- (Skip backward/ Tuning down Button (Play/Pause) Button (Mute) Button 8. VOL+ (Volume Up) Button /TUNE+ (Skip forward/ Tuning up Button BATTERY INSTALLATION (REMOTE CONTROL) First Time Use: Remove and discard the insulation film as illustrated on the right.
  • Page 7 BATTERY PRECAUTIONS: Follow these Battery Precaution when using a battery in this device: 1. Use only the size and type of battery specified. 2. Be sure to follow the correct polarity when installing the battery as indicated in the battery compartment.

  • Page 8: Power Source

    POWER SOURCE Connect the small plug from supplied AC/DC Adaptor to the DC IN Jack on the rear of unit then plug the AC/DC Adaptor to a wall outlet having AC 100-240V~; 50/60Hz. The Red Standby Indicator on the top of unit will illuminate.

  • Page 9: Operation

    OPERATION GENERAL OPERATION: 1. Connect the supplied AC/DC Adaptor to the unit and wall outlet as previously instructed. The Red Standby Indicator on the top of unit will illuminate. 2. Press and hold the STANDBY/SOURCE Button on the top of unit or press the STANDBY Button on the Remote Control to turn on the unit from standby mode.
  • Page 10 /Tune + buttons on the Remote Control to skip tracks. Notes:  When the external BT Device searched the unit, our model number “MHT843n” will appear on the display of external BT Device.  If while pairing you are asked for a code please try "0000" or "1234".
  • Page 11 FM Radio: 1. Power on the unit as previously instructed. 2. Press the STANDBY/SOURCE Button on the top of unit or press the SOURCE Button on the Remote Control repeatedly until the color of the indicator turn to Green. /Tune -/VOL – or /Tune +/VOL + buttons on the unit or press the 3.
  • Page 12 AUX IN: Listen music from external Audio Player such like MP3 Player; Discman … etc: 1. Connect one side of supplied Audio Connection Cable to the Phones Jack; Line Out Jack or AUX Out Jack on the external Audio Player. 2.
  • Page 13 LINE IN: Listen music from external Video/Audio Player DVD Player/TV …. etc: 1. Connect one side of RCA Connection Cable (not included) to the RCA audio Jacks on the external Video/Audio Player. 2. Connect the other side of the cable to the LINE IN Jacks on the rear of unit as illustrate below: FM ANT Line out jacks of Video...

  • Page 14: Troubleshooting Guide

    TROUBLESHOOTING GUIDE If you are having problems with your unit, please review the guide below before requesting. SYSTEM POSSIBLE CAUSE POSSIBLE SOLUTION Connect the supplied AC/DC Adaptor to The unit had not connect to AC power the unit and wall outlet No power Press and hold the STANDBY/SOURCE Button on the top of unit or press the...

  • Page 15: General Specifications

    GENERAL SPECIFICATIONS Power source................DC 9V 1300mA Speaker....................8W x 4ohm per channel Audio Power................5W per channel (Total 10 W, RMS) Bluetooth version........................V4.2 ≤ Bluetooth working range................32 feet in open area FM radio frequency....................87.5-108.0MHz PACKAGE INCLUDES: 1 x Owner's Manual 1 x Remote Control (Uses 1 x CR2025 Button Cell, included) 1 x AC/DC Adapter (Input: 100-240V~ 50/60Hz 0.5A Output: 9V...
