Summary of Contents for Magnavox MSB4560

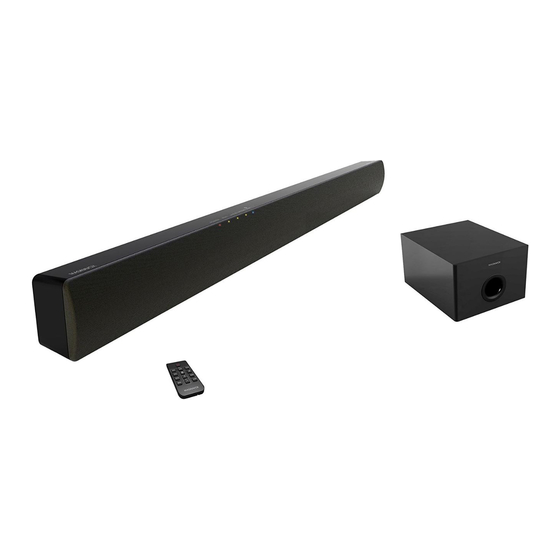

- Page 1 Owner’s Manual Soundbar MSB4560 Magnavox is a registered trademark of Philips Electronics North America Corporation and is used by Funai Electric Co., Ltd. and Funai Corporation, Inc. under license from Philips Electronics North America. Soundbar MSB4560_DFU_20140522.indd 1 2014/5/22 04:45:41...
- Page 2 Soundbar MSB4560_DFU_20140522.indd 2 2014/5/22 04:45:42...
-
Page 3: Table Of Contents
Table of Connects Notice ...............................2 1.1 Notice of Compliance .............................2 1.2 Trademark ..................................3 Important ..............................3 2.1 For your own safety ..............................3 2.2 Care of the environment ............................5 Your SoundBar ............................6 3.1 Main unit ..................................6 3.1.1 front panel of main unit ..........................6 3.1.2 Back connectors of main unit ........................6 3.2 Remote control ................................6 3.2.1 Replace battery ..............................7... -
Page 4: Notice
15. Operation is subject to the following two by Funai Corporation, Inc. may void the user’s conditions: authority to operate the equipment. a This device may not cause harmful Model number: MSB4560 interference, and Trade Name: MAGNAVOX b This device must accept any interference Canada:... -
Page 5: Trademark
2 Important 1.2 Trademarks Read and understand all instructions before you use your SoundBar. If damage is caused by failure to follow instructions, the warranty does Manufactured under license from Dolby not apply. Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. 2.1 Important safety instructions •... - Page 6 moving the cart/apparatus combination to • Do not place any sources of danger on avoid injury from tip-over. the apparatus (for example. liquid filled • Unplug this apparatus during lightning storm objects, lighted candles). or when unused for long periods of time. •...
-
Page 7: Care Of The Environment
2.2 Care of the environment • This ‘bolt of lightning’ indicates uninsulated material within your unit may cause an Your product is designed and manufactured with electrical shock. For the safety of everyone high quality materials and components, which in your household, please do not remove can be recycled and reused. -
Page 8: Your Soundbar
3 Your SoundBar 3.1.2 Back connectors of main unit Connect other devices to your SoundBar. Congratulations on your purchase. 3.1 Main unit 3.1.1 Front panel of main unit SOFTWARE AC IN UPGRADE AUX IN OPTICAL IN LINE IN INPUT POWER LINE OPTICAL PAIR... -
Page 9: Replace Battery
3.3 Wireless Subwoofer (Standby-On) Switch the SoundBar on or off. 3.3.1 Back panel of Subwoofer b Source buttons • AUX INPUT: Switch your audio source The SoundBar comes with a wireless subwoofer. to the AUX connection. LINE INPUT: Switch your audio source •... -
Page 10: Pair Up With The Subwoofer
4 Connect and set 3.3.2 Pair up with the subwoofer The wireless subwoofer automatically pairs up with the SoundBar for wireless connection when you turn on the SoundBar and the subwoofer. This section helps you connect your SoundBar If no audio from the wireless subwoofer can be to a TV and other devices, and then set it up. -
Page 11: Wall Mount The Soundbar (Optional)
4.2 Wall mount the 4.3 Connections SoundBar (optional). 4.3.1 Connect to TV Screw length/diameter Connect your SoundBar to a TV through line in Depending on the type of wall mounting your cable. You can listen to audio from TV programs SoundBar, make sure that you use screws of a through your SoundBar. -
Page 12: Connect Audio From Other Device
5 Use your 4.3.2 Connect audio from other SoundBar device Play audio other devices through your Soundbar speakers. This section helps you use the SoundBar to play audio from connected devices. Note Before you start • • Make the necessary connections described During play, do not plug out the audio cable. -
Page 13: Choose Your Sound
» The OPTICAL INPUT indicator on on Bluetooth, search for and select the front panel of main unit blinks once MAGNAVOX MSB4560 (see the user when the night mode is off. manual of the Bluetooth device on how to enable Bluetooth). -
Page 14: Auto Standby
Auto Standby When playing media from a connected device, the SoundBar automatically switches to standby after 20 minutes if no audio play from a connected device. 5.6 Apply factory settings You can reset your SoundBar to the default settings programmed at the factory. On your remote control, press LINE INPUT button. -
Page 15: Product Specifications
6 Product technical data Specifications and design are subject to change without notice. Specifications Amplifier RMS Total output power: 76 W RMS (+/- 0.5 dB, 10% THD) Frequency response: 20 Hz-20 kHz / ±3 dB Signal-to-noise ratio: > 65 dB (CCIR) / (A-weighted) Input sensitivity: •... -
Page 16: Troubleshooting
7 Troubleshooting To keep the warranty valid, never try to repair the product yourself. Malfunctions may occur with any electrical equipment. This must not always involve a defect of the device. Therefore, check the following table to see if you can eliminate the problem yourself. Malfunction Possible cause/ Elimination The SoundBar does not work. - Page 17 Soundbar MSB4560_DFU_20140522.indd 15 2014/5/22 04:45:52...
