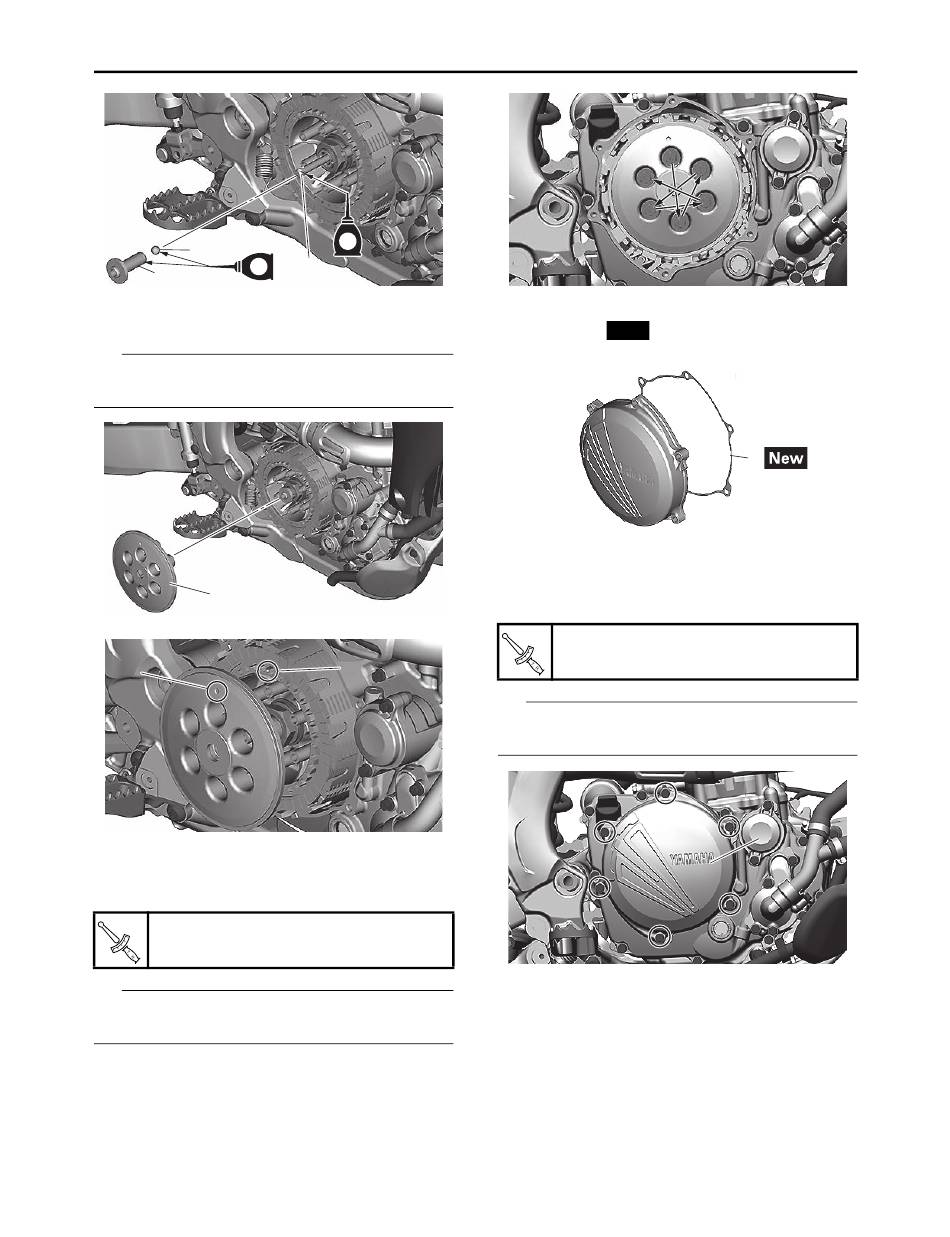

9. Install:
• Pressure plate "1"
TIP
Making sure to align a "a" on the pressure plate
with the punch mark "b" on the clutch housing.
1
a a
10.Install:
• Clutch spring
• Clutch spring bolt
Clutch spring bolt
10 N·m (1.0 kgf·m, 7.4 lb·ft)
TIP
Tighten the bolts in stages and in a crisscross
pattern.
E
1
b b
5-55
1 1
6 6
4 4 4
2 2
11.Install:
• Gasket "1"
New
12.Install:
• Clutch cover "1"
• Clutch cover bolt
Clutch cover bolt
10 N·m (1.0 kgf·m, 7.4 lb·ft)
TIP
Tighten the bolts in stages and in a crisscross
pattern.
