Page 1: Table Of Contents

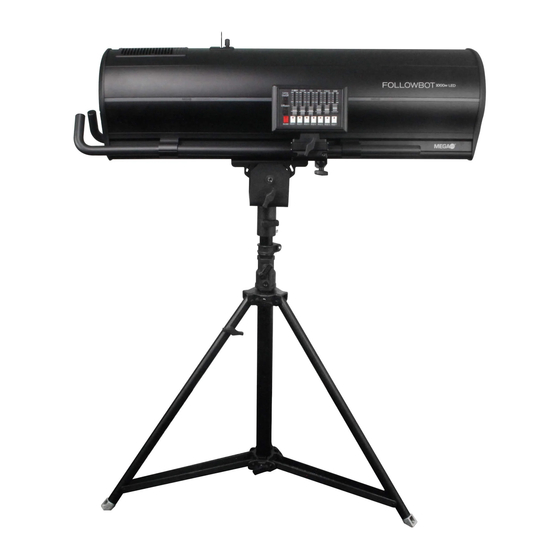

USER MANUAL Table of Contents Safety Information What’s Included Specifications Main Power Connection DMX Connection Controller Connection Controller Operations Colors Gobo Holder Display Settings DMX Profile Size And Weight Cleaning Installation Parts & Accessories Warranty Customer Service... - Page 2 Note: Fixture will home on power up, causing Mechanical noise to come from the fixture. What is Included 1pc Followbot 1000w LED fixture 1pc Follow Spot Stand = P-Stand2 1pc Seetronics SAC3FCA Connection to Nema 5-15 Connection Cable 1pc Gobo Holder...
-
Page 3: Specifications
Specifications Part Number Fixture ID 7049- FOLLOWBOT 1000W LED Mechanical Specifications Housing: Extruded Aluminum & Plastic Bezel Mounting System: Tilt mount Power Connection: Seetronics SAC3MPA Input (Nema 5-15 to SAC3FCA cable included) Signal Connection: 5 Pin XLR In and Out... -
Page 4: Main Power Connection
Main Power Connection Caution! Do not connect to a dimmer system. Connection points must not be exposed to moisture or liquids. Use appropriate connections rated for indoor use. This unit has auto switching power supply. It will respond to 100-240V AC 50/60Hz automatically Replace Fuse with specific type and rating. -
Page 5: Controller Connection
Rail Controller Connection When using the Followbot 1000W Led with Rail Mounted Controller the following cable configuration must be followed. (do not connect DMX Console to this connection as this may cause damage). Controller Connection XLR Position Cable Color Connection... -
Page 6: Colors
Colors Color Wheel CTO Wheel 6386K CTO Green 5280K CTO Magenta 3351K CTO Yellow Blue Orange Purple Gobo Holder Warning! 1.Gobo Holder must be inserted Gobo Size with B side facing the Back and F 39.5mm side facing the Front Image Size 2.Gobo Size 39.8mm outer diam- 23.5 mm... -
Page 7: Display Settings
Display Settings The control board on the fixture is your interface to access and control all the functions on the unit. It’s ® LCD display gives you a code view of the options and functions of the fixture. The following will Down explain each function and it’s options. - Page 8 Test Program: Main Menu Fixture Address Press the Enter button to select fixture to run all internal Information -Test Program- functions for test purpose select on off . Personality Test Program Main - Remote Manual Mode Main / Remote: Main Menu Fixture Address In Remote mode the fixture will work as an independent Information...
-
Page 9: Dmx Profile
DMX Profile Followbot 1000W LED DMX Channel Function Description Value Init Dimmer Dimmer Off to Full 0-255 No Function Strobe (slow to fast) 2-127 Strobe Pulse (slow to fast) 128-159 Reverse Pulse (slow to fast) 160-191 Random (slow to fast) -
Page 10: Size And Weight
Size and Weight 44.5” / 1130mm 19.09” / 485mm 16.92” /430mm 8.46” / 215mm 11.06” / 281mm 11” / 280mm 12.91” / 328mm Fixture Size: 44.5” X 12.91” X 19.13” Fixture Weight: 75lb Packaged Size: 49.5” X 18.5” X 23” Packaged Weight: 93lb... -
Page 11: Cleaning
Installation Caution! 1. The Installation must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injures, if you have doubts concerning the safety do not install. 3. Unit is to be 24 inches away from flammable materials. 4. - Page 13 Customer Support MEGA Lite has a customer support line to provide set-up help and to answer any questions should you encounter a problem. Please visit our website for any other related technical documents. For service related issues, please contact our service dept. Monday - Friday 9am to 6pm CST (210) 684-2600 service@mega.lighting...
