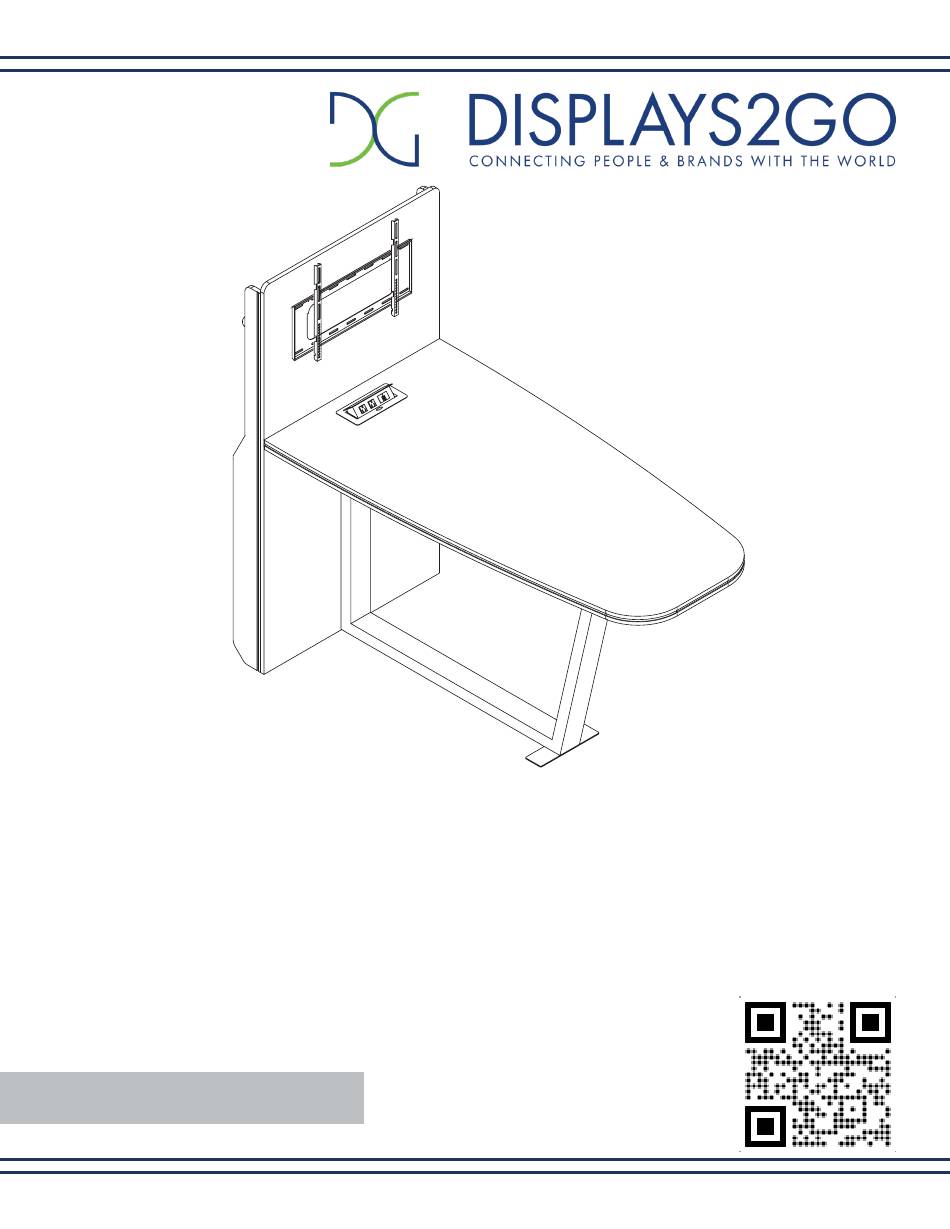

- Page 1 EDGE-LIT EDGE-LIT COLLABORATION STATION COLLABORATION STATION User Manual User Manual SKU: FDEDGECTA SKU: FDEDGECTA Scan the QR code to visit the product page.
- Page 2 Bolt M6*15mm -2pcs Screw M4*10 - 3pcs Not Included: Grommet -2pcs Bolt M6*35mm -5pcs Philips Screwdriver Up to 43” Screen If you have any questions regarding our products, please visit us at www.displays2go.com or contact Displays2go customer service at 844-221-3388.
- Page 3 ASSEMBLY ASSEMBLY NOTE: Two people required for assembling and moving unit. Prepare Tabletop Connection to Base. 1. Screw cam locks (G) into underside of the tabletop (A). 2. Insert cam bolts (H) and dowels (I) into the base (B). Insert grommets (P). Prepare Base.
- Page 4 Attach Tabletop 5. Lay tabletop on metal frame and attach tabletop to base using the dowels and cam bolts. 6. Screw the metal frame to the tabletop using M6 x 60mm bolts (J). Tighten with allen key (K). 7. Feed power strip wires through the grommet and pull through to the back of the unit.
- Page 5 LED Color Pad key down for 5 seconds to pair. The light strip flashes slowly to indicate successful pairing. Program Controls If you have any questions regarding our products, please visit us at www.displays2go.com or contact Displays2go customer service at 844-221-3388.
