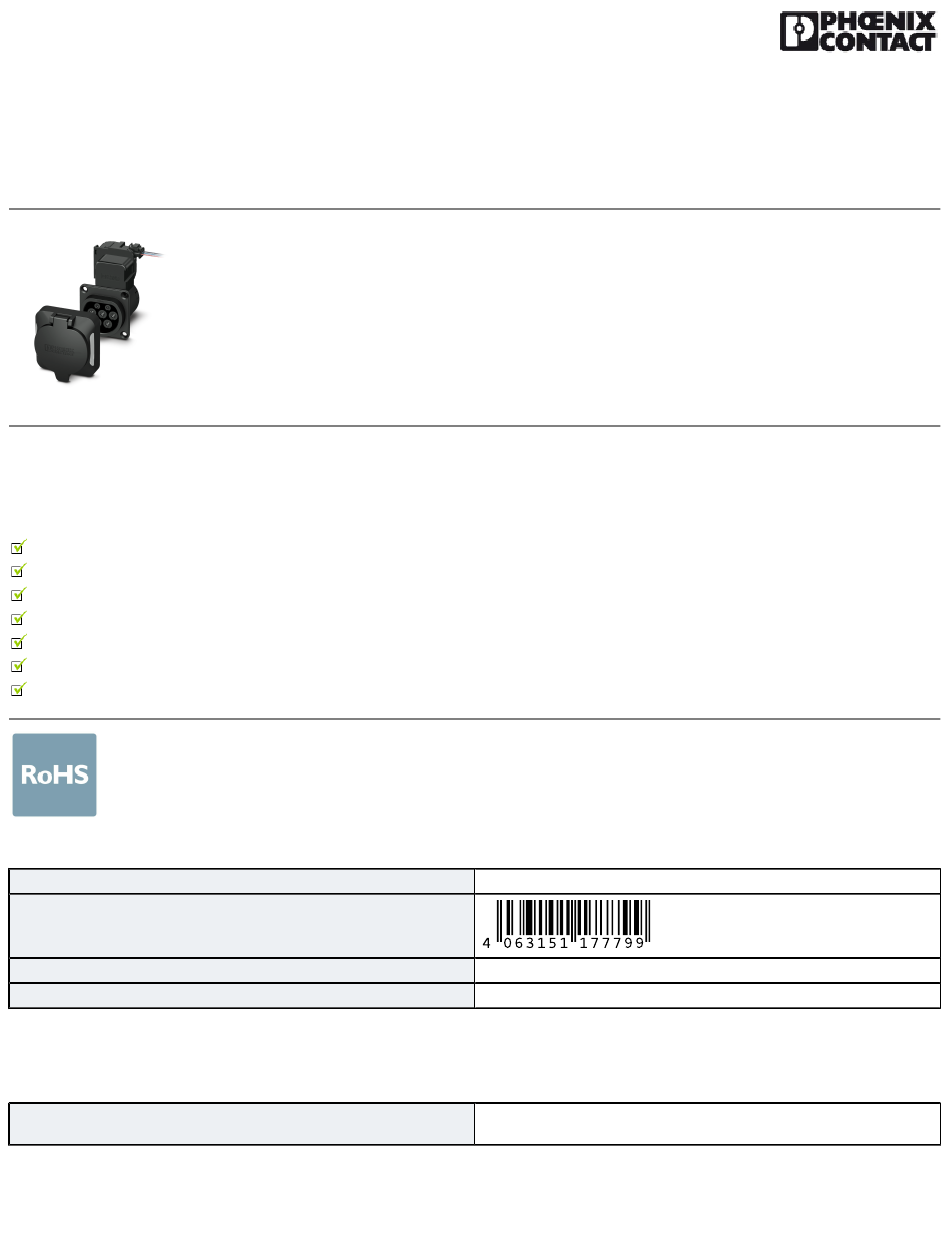

Set - EV-T2M3SO12-3P-P-SET - 1164422
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Product Description
Infrastructure Socket Outlet with protective cover, for charging electric vehicles (EV) with alternating current (AC), compatible with Type 2 Infrastructure
Plugs. For installation at charging stations for E-Mobility (EVSE)
Your advantages
Charging status intuitively visible at a glance with color LED indicator
Protected against overheating with precise temperature measurement
Flexible mounting and easy maintenance with plug-in cables
Available with your logo on request – for consistent branding of your charging station
Waterproof and dirtproof due to fully molded contacts
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
Uniform, space-saving installation space
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Technical data
Product definition
Type
CHARX connect, Set, Combination of infrastructure charging socket, protective cover, and rear protective cap
for strain relief and touch protection, rear protective cover screw connection, with temperature sensors, with
LED status indicator within the protective cover, can be reconnected, For charging electric vehicles (EV) with
alternating current (AC), Compatible with infrastructure charging plugs, Type 2, IEC 62196-2, 32 A / 480 V (AC),
without cable, Locking actuator: 12 V, 3-position, Rear panel mounting, M5 thread, Premium with LED cover,
"PHOENIX CONTACT" logo
1
4063151177799
85366990
Combination of infrastructure charging socket, protective cover, and rear
protective cap for strain relief and touch protection
