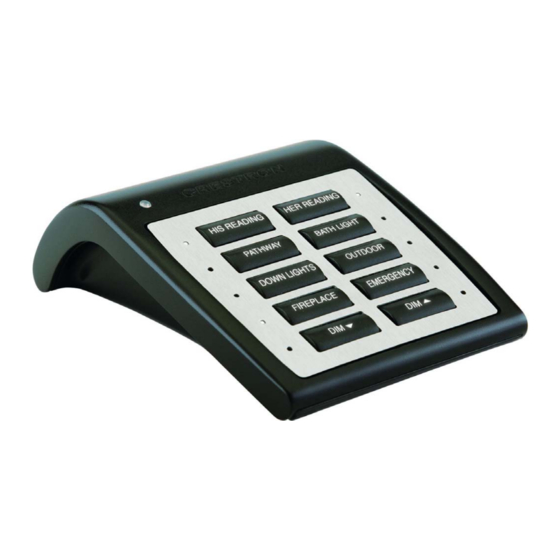

Crestron HTT-B10X
infiNET™ TableTop Controller
Operations Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the infiNET HTT-B10X and is the answer not in the manual?

Questions and answers

Related Manuals for Crestron infiNET HTT-B10X

Summary of Contents for Crestron infiNET HTT-B10X

  • Page 1 Crestron HTT-B10X infiNET™ TableTop Controller Operations Guide...
  • Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names and trademarks are the property of their respective owners. ©2008 Crestron Electronics, Inc.

  • Page 3: Table Of Contents

    Crestron HTT-B10X Contents InfiNET™ TableTop Controller: HTT-B10X Introduction ... 1 Features and Functions ... 1 Specifications ... 3 Physical Description... 5 Industry Compliance ... 7 Setup ... 8 Identity Code ... 8 Button Installation ... 8 Hardware Hookup ... 9 Setup Mode...

  • Page 5: Infinet™ Tabletop Controller: Htt-B10X

    The HTT-B10X is a fully programmable controller designed to operate as part of a complete Crestron infiNET wireless control network. The HTT-B10X (120 Volts AC) and HTTI-B10X (230 Volts AC) are functionally identical. For simplicity within this guide, HTT-B10X is used except where noted. Features and Functions...
  • Page 6 Battery or AC Powered The HTT-B10X can be powered by its external power pack or two AA batteries, permitting use as a stationary controller on a desk or table or as a portable wireless remote. Its auto-sleep function affords battery operation for up to eight months on a single set of alkaline batteries.

  • Page 7: Specifications

    NOTE: The HTT-B10X itself does not function as a repeater. Color and Engraving Options The HTT-B10X is available in either black or white, with an attractive brushed aluminum inlay. Custom backlit engraving is available for each individual column of five buttons.
  • Page 8 NOTE: Crestron software and any files on the website are for authorized Crestron dealers and Crestron Authorized Independent Programmers (CAIP) only. New users may be required to register to obtain access to certain areas of the site (including the FTP site). 4 • infiNET™ TableTop Controller: HTT-B10X SPECIFICATION Enclosure Dimensions...

  • Page 9: Physical Description

    This section provides information on the connections, controls and indicators available on your HTT-B10X. HTT-B10X Physical View HTT-B10X Overall Dimensions (Top View) Operations Guide – DOC. 6583B infiNET™ TableTop Controller infiNET™ TableTop Controller: HTT-B10X • 5 4.69 in (11.91 cm)
  • Page 10 HTT-B10X Overall Dimensions (Rear View) Connectors, Controls & Indicators NOTE: The HTT-B10X comes from the factory with a protective plastic overlay installed to prevent scratches in the metal face. Remember to remove this overlay prior to handing the product over to your customer.

  • Page 11: Industry Compliance

    Crestron HTT-B10X Industry Compliance As of the date of manufacture, the HTT-B10X has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling. FCC ID: EROCWD1016 Compliance Statement (Part 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: Warning (Part 15.21)

  • Page 12: Setup

    Setup Identity Code The MNET ID of the HTT-B10X has been factory set to 01. After an infiNET device is added to an infiNET network, its MNET ID must be changed to a value that can be addressed by the control system program (03 to 20). The MNET IDs of multiple HTT-B10X devices on the same gateway must be unique.

  • Page 13: Hardware Hookup

    Crestron HTT-B10X HTT-B10X Button Installation Hardware Hookup The only connection to the HTT-B10X is for the included 12 Volt power pack. When connecting the HTT-B10X, consider the following: Hardware Connections for the HTT-B10X NOTE: The HTT-B10X will not charge rechargeable AA batteries.

  • Page 14: Setup Mode

    InfiNET™ TableTop Controller Setup Mode Prior to using the HTT-B10X as part of a Crestron system, it must be configured for use on an infiNET network. This is done via the Setup mode. NOTE: Setup mode is only enabled when the unit is being powered from its 12 Volt power pack.
  • Page 15 NOTE: In environments where multiple gateways are installed, only one gateway should be in Acquire mode at a time. 3. Put the HTT-B10X in the Acquire mode by pressing button #2 and holding it for five seconds (refer to illustration at the top of page 10). The LED next to button #2 will light when the button is pressed and will blink off briefly at the five second threshold when the button is held.

  • Page 16: Manner Mode

    Change Network ID Release Gateway Connection At times, it may be desirable to unacquire an HTT-B10X from a previously acquired gateway. To unacquire the HTT-B10X from the C2N-MNETGW gateway, while in Setup mode, press and hold button #2 for 10 seconds. The LED next to button #2 will blink twice at the 10 second threshold when the button is held.

  • Page 17: Programming Software

    Programming with SIMPL Windows NOTE: While SIMPL Windows can be used to program the HTT-B10X, it is recommended to use D3 Pro or SystemBuilder for configuring a system. SIMPL Windows is Crestron’s premier software for programming Crestron control systems.
  • Page 18 C2N-MNETGW (Gateway) from the Wireless Receivers | Wireless Receivers (RF) folder of the Device Library and drop it in the System Views. Then drag the HTT-B10X from the infiNET Control Modules | infiNET Button Panels folder of the Device Library and drop it on the C2N-MNETGW.

  • Page 19: Standard Button Arrangement

    Refer to the illustration on page 10 for the standard arrangement of buttons and feedback LEDs on the keypad. Example Program An example program for the HTT-B10X is available from the Crestron website (www.crestron.com/exampleprograms). Operations Guide – DOC. 6583B infiNET™ TableTop Controller •...

  • Page 20: Uploading And Upgrading

    NOTE: For communication with Crestron Toolbox, the HTT-B10X should be powered from its 12 Volt power pack. Establishing Communication Use Crestron Toolbox for communicating with the HTT-B10X; refer to the Crestron Toolbox help file for details. There is a single method of communication: indirect communication.

  • Page 21: Program Checks

    In Crestron Toolbox, display the network device tree (Tools | Network Device Tree) to show all network devices connected to the control system and all infiNET devices that have been acquired by the HTT-B10X (C2N-MNETGW). Right-click on the HTT-B10X (C2N-MNETGW) to display actions that can be performed on the HTT-B10X (C2N-MNETGW).

  • Page 22: Operation

    12 Volt Operation When powered by its 12 Volt power pack, the HTT-B10X will behave much like a typical wired keypad, with the exception of Manner mode, described previously (refer to “Manner Mode” on page 12).
  • Page 23 Crestron HTT-B10X Set Gateway to Fixed Channel When powered by AA batteries, the HTT-B10X will automatically shut itself off after some period of inactivity. This is done to conserve battery life and works as follows: Operations Guide – DOC. 6583B infiNET™...

  • Page 24: Problem Solving

    The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative. HTT-B10X Troubleshooting (Continued on following page) 20 • infiNET™ TableTop Controller: HTT-B10X TROUBLE POSSIBLE CAUSE(S) Device does not Device is not receiving function.

  • Page 25: Bootloader

    To enter the bootloader, press and hold buttons #9 and #10 while connecting the included 12 Volt DC power supply to the jack on the rear of the HTT-B10X. Continue to hold buttons #9 and #10. After five seconds, the LEDs next to buttons #9 and #10 will flash for a half second.

  • Page 26: Reference Documents

    Future Updates As Crestron improves functions, adds new features and extends the capabilities of the HTT-B10X, additional information may be made available as manual updates. These updates are solely electronic and serve as intermediary supplements prior to the release of a complete technical documentation revision.

  • Page 27: Return And Warranty Policies

    All brand names, product names and trademarks are the sole property of their respective owners. Windows is a registered trademark of Microsoft Corporation. Windows95/98/Me/XP/Vista and WindowsNT/2000 are trademarks of Microsoft Corporation. Operations Guide – DOC. 6583B infiNET™ TableTop Controller infiNET™ TableTop Controller: HTT-B10X • 23...
  • Page 28 Crestron Electronics, Inc. Operations Guide – DOC. 6583B 15 Volvo Drive Rockleigh, NJ 07647 (2018330) Tel: 888.CRESTRON 05.08 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
