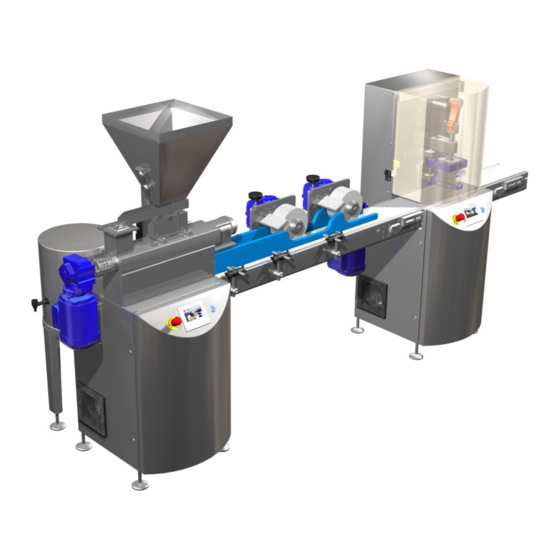

Buhler SnackFix Operator's Manual
Hide thumbs Also See for SnackFix:

Advertisement

Quick Links

Operator Manual
Electronics
TM
SnackFix
Version: 2018-05-V1.8-EN
Please read these instructions before
beginning any work!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SnackFix and is the answer not in the manual?

Questions and answers

Summary of Contents for Buhler SnackFix

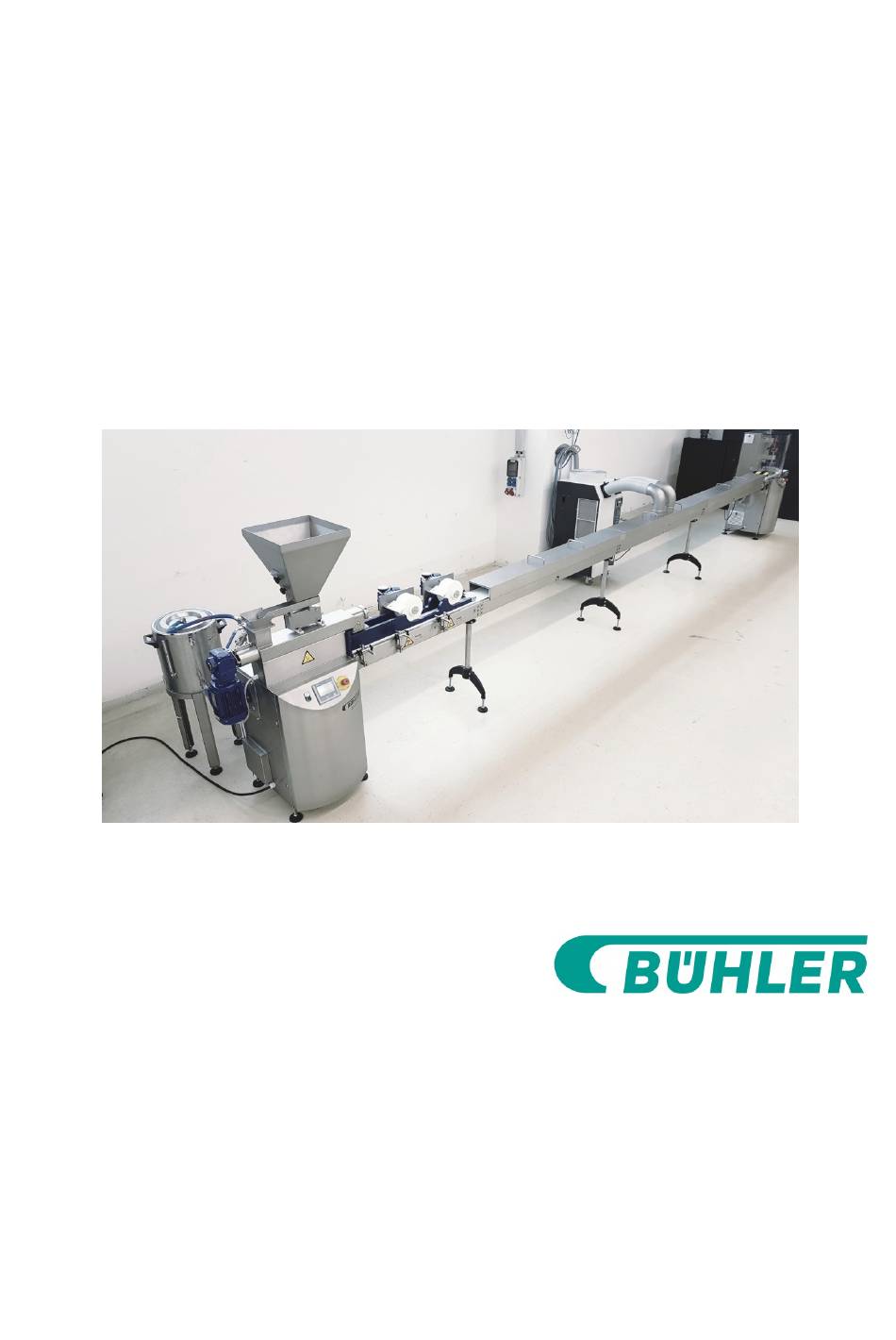

  • Page 1 Operator Manual Electronics SnackFix Version: 2018-05-V1.8-EN Please read these instructions before beginning any work!
  • Page 2: Table Of Contents

    Functions of keys on screen „Service Cutting Unit CU“: ........28 Screen limits Cutting Unit CU: ................31 5.10 Screen limits EGW 1 & 2: ..................32 Alarms ........................33 Functions of keys on screen „Alarm screen“: ............34 Function „Alarm screen“: ..................34 2018-05  V1.8 SnackFix...
  • Page 3 Production Start / Stop ..................38 Readiness for operation ..................38 Switching machine on ...................38 Select the Operating Mode MS ................39 Switch on the complete Machine ................40 Switch on individually ...................40 Switching machine off ...................41 Switch off individually ...................41 2018-05  V1.8 SnackFix...
  • Page 4: Safety

    1.3 WARNING Before operation, cleaning or maintenance work, the corresponding protective measurements according to the manufacturer's instructions have to be ob- served. Product residues have to be removed at the end of the operation. 2018-05  V1.8 SnackFix...
  • Page 5: Safety During Operation

    The enclosed operating instructions are no replacement for an introduction to the operation and maintenance of the plant and its components. Without training from qualified persons the plant may not be started up. 2018-05  V1.8 SnackFix...
  • Page 6: Securing And Switching Off The Plant During Maintenance And Repair

    This is particularly important for: Covers Safety instructions Warning signs Grounding cables Watch and supervise the plant. If the plant shows any faulty behaviour after switching on, it has to be switched off again immediately. 2018-05  V1.8 SnackFix...
  • Page 7: Electronics

    Complete wiring between the machine, control cabinet and operator panel. Hardware documentation. 2.3 Start-up Before the test run of the machine, which is carried out without product, it has to be checked that the working areas of the machine are free from tramp parts. 2018-05  V1.8 SnackFix...
  • Page 8: Visualisation Screen And Operation

    Visualisation screen and operation Visualisation screen and operation Input field Operating field Mach Mach Start Screen Touch button 2018-05  V1.8 SnackFix...
  • Page 9: Visualisation Functions And Operating Elements On The Operator Panel

    Screen change: By pressing the corresponding function touch field the screens can be changed. Emergency stop Reset: Button Acknowledgement after pressing Emergency Stop Emergency stop button: Emergency Stop of the machine 2018-05  V1.8 SnackFix...
  • Page 10: Mass Preparation Unit Mpu

    Mass Preparation Unit MPU Mass Preparation Unit MPU Start Screen Mach Mach 2018-05  V1.8 SnackFix...
  • Page 11: Function Of Keys On Screen „Start Screen Mass Preparation Unit Mpu

    The screen „Recipe“ is selected. Machine Start: With the touch button „Mach ON“ the complete MPU (Contimix, Dosing Pump, Vibration unit & Heating) switched on. Machine Stop: With the touch button “Mach OFF” the complete MPU can be switched off. 2018-05  V1.8 SnackFix...
  • Page 12: Screen Contimix & Dosing Pump

    Mass Preparation Unit MPU 4.2 Screen Contimix & Dosing Pump “Contimix on/off” “Vibro on/off” “Heating on/off” “Dosing Pump on/off” Mach Mach Start Screen 2018-05  V1.8 SnackFix...
  • Page 13: Function Of Keys On Screen „Contimix & Dosing Pump

    With touch button “Heating I / 0” the Heating system can be started or stopped individually. Contimix ON/OFF: With touch button “Contimix I / 0” the Contimix can be started or stopped indi- vidually. Start screen The screen „Start screen“ is selected. 2018-05  V1.8 SnackFix...
  • Page 14 With the input field „Dosing Pump” the nominal speed “%” is entered. The input of the speed is limited. Contimix With the input field „Contimix” the nominal speed “%” is entered. The input of the speed is limited. 2018-05  V1.8 SnackFix...
  • Page 15: Service" Mass Preparation Unit Mpu

    Mass Preparation Unit MPU 4.4 Service“ Mass Preparation Unit MPU“ Start Mach Mach Screen 2018-05  V1.8 SnackFix...
  • Page 16: Functions Of Keys On Screen „Service

    Note! The operating manual for the operating panel is part of the machine doc- umentation. Unauthorised changes on the system level can cause the loss of the communication between the operator panel and the SPS-Control! 2018-05  V1.8 SnackFix...
  • Page 17 Machine Start: With the touch button „Mach ON“ the complete MPU (EGW 1 & 2, Cutter, Feeding Belt and Discharge Belt etc.). Machine Stop: With the touch button “Mach OFF” the complete MPU can be switched off. 2018-05  V1.8 SnackFix...
  • Page 18: Screen Limits Mpu

    This input field represents the highest limit of the respective axis. Enter the maximum speed for the drive. Main voltage his input field represents the voltage for all frequency converter. Enter here the actual voltage (EU 400V, USA 460V….) and press “save”. 2018-05  V1.8 SnackFix...
  • Page 19: Cutting Unit Cu And Egw

    Cutting Unit CU and EGW Cutting Unit CU and EGW Start Screen Mach Mach Start Screen 2018-05  V1.8 SnackFix...
  • Page 20: Function Of Keys On Screen „Start Screen Cutting Unit Cu

    The screen „Start screen“ is selected. Machine Start: With the touch button „Mach ON“ the complete MPU (Belt´s, Cutter & EGW´s) switched on. Machine Stop: With the touch button “Mach OFF” the complete MPU can be switched off. 2018-05  V1.8 SnackFix...
  • Page 21: Screen Cutter

    Cutting Unit CU and EGW 5.2 Screen Cutter Mach Mach Start Screen 2018-05  V1.8 SnackFix...
  • Page 22: Function Of Keys On Screen „Cutter

    Discharge Belt ON/OFF: With touch button “Discharge I / 0” the Discharge Belt can be switched on or off. Cutter ON/OFF: With touch button “Cutter I / 0” the Cutter can be switched on or off. 2018-05  V1.8 SnackFix...
  • Page 23 The Product Width of the individual products can be entered directly via the keyboard. The entry of the cutting length is limited. Cuts/min This field shows you the actual cutting frequency. Depends on the working set- up of the cutting machine. The screen „EGW” is selected 2018-05  V1.8 SnackFix...
  • Page 24: Screen Egw Roller

    Cutting Unit CU and EGW 5.4 Screen EGW Roller Mach Mach Start Screen 2018-05  V1.8 SnackFix...
  • Page 25: Function Of Keys On Screen „Egw 1 & 2 Roller

    With the input field „EGW 1” the nominal speed “m/min” is entered. The input of the speed is limited. EGW 2 Roller With the input field „EGW 2” the nominal speed “m/min” is entered. The input of the speed is limited. Cutter The screen „Cutter” is selected. 2018-05  V1.8 SnackFix...
  • Page 26: Login

    The Login input field is activated to enter the password. The following users are prepared: User: Password: Access: service 9070 Master Unauthorised changes on the Drive Limits level can cause the lost of the correct function of scaling! 2018-05  V1.8 SnackFix...
  • Page 27: Service" Cutting Unit

    Cutting Unit CU and EGW 5.7 Service“ Cutting Unit“ Start Mach Mach Screen 2018-05  V1.8 SnackFix...
  • Page 28: Functions Of Keys On Screen „Service Cutting Unit Cu

    • Manual In the Adjust mode „Manual“ the knife travel axis can be jogged forward with the touch button and. The knife travel axis turns as long as the but- ton is actuated. 2018-05  V1.8 SnackFix...
  • Page 29 Unauthorised changes on the system level can cause the loss of the communication between the operator panel and the SPS-Control! Operating hours The field "Operating hours" shows the full hours of operation of the ma- chine. 2018-05  V1.8 SnackFix...
  • Page 30 With the touch button „Mach ON“ the complete CU (EGW 1 & 2, Cutter, Feeding Belt and Discharge Belt .). Machine Stop : With the touch button “Mach OFF” the complete CU can be switched off. 2018-05  V1.8 SnackFix...
  • Page 31: Screen Limits Cutting Unit Cu

    Factor This input field represents the factor of scaling of the respective axis. Cutter Factor Continuous Mode This input field represents the factor of scaling of the respective the cutter axis in continuous mode. 2018-05  V1.8 SnackFix...
  • Page 32: Screen Limits Egw 1 & 2

    This input field represents the factor of scaling of the respective axis. Main voltage This input field represents the voltage for all frequency converter. Enter here the actual voltage (EU 400V, USA 460V….) and press “save”. 2018-05  V1.8 SnackFix...
  • Page 33: Alarms

    Alarms Alarms Mach Start Screen 2018-05  V1.8 SnackFix...
  • Page 34: Functions Of Keys On Screen „Alarm Screen

    The column „Acknowledge Message“ shows the time when the fault was acknowledged. Acknowledged faults are marked with a „*“ at the beginning. Resolved faults stay in this window so that a history of all fault messages is collected. 2018-05  V1.8 SnackFix...
  • Page 35: Screen Recipe

    Screen Recipe Screen Recipe Mach Mach Start Screen 2018-05  V1.8 SnackFix...
  • Page 36: Functions Of Keys On Screen „Recipe Screen

    With the touch button „Mach ON“ the complete Machine (EGW 1 & 2, Cut- ter, Feeding Belt and Discharge Belt etc.). Machine Stop : With the touch button “Mach OFF” the complete Machine can be switched off. 2018-05  V1.8 SnackFix...
  • Page 37: Function „Recipe Screen

    “rename“ the recipe. Write down the recipe-name and all other parameters into the recipe table. “Save” the recipe. In the column “Value” the different parameters are indicated. “Download” the parameters to the PLC and press “restore” to update the recipe table. 2018-05  V1.8 SnackFix...
  • Page 38: Production Start / Stop

    The machine is now ready for operation and can be started. 8.2 Switching machine on To start production the following conditions have to be fulfilled. • All emergency stops not actuated • No fault message in alarm screen active • Cutter in the upper zero position 2018-05  V1.8 SnackFix...
  • Page 39: Select The Operating Mode Ms

    • Adjust In the Adjust mode „Manual” the knife travel axis can be jogged forward with the touch button and. The knife travel axis turns as long as the but- ton is actuated 2018-05  V1.8 SnackFix...
  • Page 40: Switch On The Complete Machine

    Use the push buttons “ON” on the several screens to switch on the drives you wont to operate. For example: Switch Feeding belt ON With the touch button „I” the feeding belt can be started individually. 2018-05  V1.8 SnackFix...
  • Page 41: Switching Machine Off

    Use the push buttons “0” on the several screens to switch off the drives you want to stop. For example: Switch Feeding belt OFF With the touch button „0” the feeding belt can be switched off individually. 2018-05  V1.8 SnackFix...
