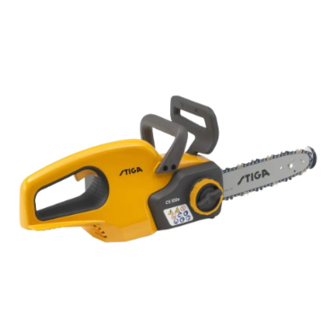

Stiga CS 100 Li 20 A Operator's Manual

Battery powered chainsaw for tree service
Hide thumbs Also See for CS 100 Li 20 A:
Table of Contents

Advertisement

Quick Links

Download this manual
171506851/1
03/2023
CS 100 Li 20 A
CS 100 Li 20 S
IT
Motosega a catena per potatura alimentata a batteria
MANUALE DI ISTRUZIONI
ATTENZIONE: prima di usare la macchina, leggere attentamente il presente libretto.
BG
Моторен верижен трион за резитба, захранван с акумулатор
УПЪТВАНЕ ЗА УПОТРЕБА
ВНИМАНИЕ: преди да използвате машината прочетете внимателно настоящата книжка.
BS
Lančana motorna pila na bateriju za potkresivanje grana
UPUTSTVO ZA UPOTREBU
PAŽNJA: prije nego što koristite ovu mašinu, pažljivo pročitajte priručnik s uputama.
CS
Akumulátorová řetězová odvětvovací motorová pila
NÁVOD K POUŽITÍ
UPOZORNĚNÍ: před použitím stroje si pozorně přečtěte tento návod k použití.
DA
Batteridrevet kædesav til beskæring
BRUGSANVISNING
ADVARSEL: læs instruktionsbogen omhyggeligt igennem, før du tager denne maskine i brug.
DE
Batteriebetriebene Kettensäge für die Baumpflege
GEBRAUCHSANWEISUNG
ACHTUNG: Vor Inbetriebnahme des Geräts die Gebrauchsanleitung aufmerksam lesen.
EL
Αλυσοπρίονο φορητό με μπαταρία
ΟΔΗΓΙΕΣ ΧΡΗΣΠΣ
ΠΡΟΣΟΧΗ: πριν χρησιμοποιησετε το μηχανημα, διαβαστε προσεκτικα το παρον εγχειριδιο.
EN
Battery powered chainsaw for tree service
OPERATOR'S MANUAL
WARNING: read thoroughly the instruction booklet before using the machine.
ES
Motosierra de cadena para poda alimentada a batería
MANUAL DE INSTRUCCIONES
ATENCIÓN: antes de utilizar la máquina, leer atentamente el presente manual.
ET
Akutoitel mootorsaag puude hooldamiseks
KASUTUSJUHEND
TÄHELEPANU: enne masina kasutamist lugeda tähelepanelikult antud kasutusjuhendit.
FI
Akkukäyttöinen puunhoitotöissä käytettävä moottorisaha
KÄYTTÖOHJEET
VAROITUS: lue käyttöopas huolellisesti ennen koneen käyttöä.
FR
Scie à chaîne pour élagage alimentée par batterie
MANUEL D'UTILISATION
ATTENTION: lire attentivement le manuel avant d'utiliser cette machine.
HR
Motorna lančana pila za obrezivanje, s baterijskim napajanjem
PRIRUČNIK ZA UPORABU
POZOR: prije uporabe stroja, pažljivo pročitajte ovaj priručnik.
HU
Akkumulátoros motoros láncfűrész metszéshez
HASZNÁLATI UTASÍTÁS
FIGYELEM! a gép használata előtt olvassa el figyelmesen a jelen kézikönyvet.
LT
Akumuliatoriumi maitinamas grandininis pjūklas genėjimui
NAUDOJIMO INSTRUKCIJOS
DĖMESIO: prieš naudojant įrenginį, atidžiai perskaityti šį naudotojo vadovą.
LV
Akumulatora ķēdes zāģis koku apkopšanai
LIETOŠANAS INSTRUKCIJA
UZMANĪBU: pirms aparāta lietošanai rūpīgi izlasiet doto instrukciju.
MK
Моторна пила за градинарство со батерија
УПАТСТВА ЗА УПОТРЕБА
ВНИМАНИЕ: прочитајте го внимателно ова упатство пред да ја користите машината.
NL
Kettingzaag met accutoevoer voor snoeien
GEBRUIKERSHANDLEIDING
LET OP: vooraleer de machine te gebruiken, dient men deze handleiding aandachtig te lezen.
NO
Batteridrevet motorsag med kjede for beskjæring
INSTRUKSJONSBOK
ADVARSEL: les denne bruksanvisningen nøye før du bruker maskinen.
PL
Akumulatorowa piła łańcuchowa do przycinania
INSTRUKCJE OBSŁUGI
OSTRZEŻENIE: przed użyciem maszyny, należy uważnie przeczytać niniejszą instrukcję.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS 100 Li 20 A and is the answer not in the manual?

Questions and answers

Related Manuals for Stiga CS 100 Li 20 A

Summary of Contents for Stiga CS 100 Li 20 A

  • Page 1 03/2023 Motosega a catena per potatura alimentata a batteria MANUALE DI ISTRUZIONI CS 100 Li 20 A ATTENZIONE: prima di usare la macchina, leggere attentamente il presente libretto. CS 100 Li 20 S Моторен верижен трион за резитба, захранван с акумулатор...
  • Page 2 Motosserra de corrente para poda, alimentada a bateria MANUAL DE INSTRUÇÕES ATENÇÃO: antes de usar a máquina, leia atentamente o presente manual. Ferăstrău cu lanț alimentat cu baterie pentru elagaj MANUAL DE INSTRUCŢIUNI ATENŢIE: înainte de a utiliza maşina, citiți cu atenție manualul de față. Пила...
  • Page 3 Type: Art.N. - s/n...
  • Page 4 CS 100 Li 20 A CS 100 Li 20 S CS 100 Li 20 A CS 100 Li 20 S CS 100 Li 20 A CS 100 Li 20 S...
  • Page 5 CS 100 Li 20 A CS 100 Li 20 S CS 100 Li 20 A CS 100 Li 20 S...
  • Page 6 CS 100 Li 20 A CS 100 Li 20 S CS 100 Li 20 A CS 100 Li 20 S...
  • Page 7 5 cm...
  • Page 11 �1� DATI TECNICI CS 100 Li 20 A - S �2� Tensione di alimentazione MAX V / DC �3� Tensione di alimentazione NOMINAL V / DC �4� Velocità massima della catena 14.5±10% �5� Frequenza massima di rotazione del motore 7800±10% �6�...
  • Page 12 BG - ТЕХНИЧЕСКИ ДАННИ BS - TEHNIČKI PODACI CS - TECHNICKÉ PARAMETRY Захранващо напрежение МАКС MAKS. napon napajanja Napájecí napětí MAX Захранващо напрежение НОМИНАЛНО NOMINALNI napon napajanja Napájecí napětí NOMINAL Максимална скорост на веригата Maksimalna brzina lanca Maximální rychlost řetězu Максимална...
  • Page 13 EN - TECHNICAL DATA ES - DATOS TÉCNICOS ET - TEHNILISED ANDMED MAX supply voltage Tensión de alimentación MÁX MAX toitepinge NOMINAL supply voltage Tensión de alimentación NOMINAL NOMINAALNE toitepinge Maximum chain speed Velocidad máxima de la cadena Keti maksimaalne kiirus Maximum rotational frequency of the spindle Frecuencia máxima de rotación del mandril Võlli maksimaalne pöörlemissagedus...
  • Page 14 HU - MŰSZAKI ADATOK LT - TECHNINIAI DUOMENYS LV - TEHNISKIE DATI MAX tápfeszültség MAKS. maitinimo įtampa MAKS. barošanas spriegums NÉVLEGES tápfeszültség NOMINALI maitinimo įtampa NOMINĀLAIS barošanas spriegums Lánc max. sebessége Grandinės maksimalus greitis Maksimālais ķēdes ātrums A tokmány maximális forgási sebessége Maksimalus griebtuvo sukimosi greitis Maksimālais patronas griešanās ātrums Vágás hossza...
  • Page 15 PL - DANE TECHNICZNE PT - DADOS TÉCNICOS RO - DATE TEHNICE Napięcie zasilania MAKS Tensão de alimentação MÁX Tensiune de alimentare MAX Napięcie zasilania ZNAMIONOWE Tensão de alimentação NOMINAL[4] Tensiune de alimentare NOMINALĂ Maksymalna prędkość łańcucha Velocidade máxima da corrente Viteza maximă...
  • Page 16 SV - TEKNISKA DATA TR - TEKNİK VERİLER RU - ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ Matningsspänning MAX MAKS. besleme gerilimi МАКС. напряжение питания Matningsspänning NOMINAL NOMİNAL besleme gerilimi НОМИНАЛЬНОЕ напряжение питания Kedjans maximala hastighet Maksimum zincir hızı Максимальная скорость цепи Spindelns maximala rotationsfrekvens İş...
  • Page 17 ITALIANO - Istruzioni Originali ....................БЪЛГАРСКИ - Инструкция за експлоатация ................BOSANSKI - Prijevod originalnih uputa ..................ČESKY - Překlad původního návodu k používání ................DANSK - Oversættelse af den originale brugsanvisning ............... DEUTSCH - Übersetzung der Originalbetriebsanleitung ............... ΕΛΛΗΝΙΚΑ - Μεταφραση των πρωτοτυπων οδηγιων ..............ENGLISH - Translation of the original instruction ................

  • Page 18: Table Of Contents

    WARNING!: READ THE INSTRUCTION BOOKLET THOROUGHLY BEFORE USING THE MACHINE. Keep for future reference. TABLE OF CONTENTS 1. GENERAL ASPECTS 1. GENERAL ASPECTS ........1 2. SAFETY REGULATIONS ......2 3. GETTING TO KNOW THE MACHINE ... 6 1.1 HOW TO READ THE MANUAL 3.1 Description of the machine and planned use ............

  • Page 19: Safety Regulations

    3) Personal safety 2. SAFETY REGULATIONS a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while 2.1 GENERAL SAFETY GUIDELINES you are tired or under the influence of FOR POWER TOOLS drugs, alcohol or medication.
  • Page 20 preventive safety measures reduce the risk of unpredictable behaviour resulting in fire, starting the power tool accidentally. explosion or risk of injury. d) Store idle power tools out of the reach f) Do not expose a battery pack or tool to fire of children and do not allow persons or excessive temperature.
  • Page 21 support. Operation of a chain saw in this 2.3 CAUSES OF KICKBACK AND manner could result in serious personal injury. OPERATOR PROTECTION f) Always keep proper footing and operate the chain saw only when standing on Kickback may occur when the nose or tip of the fixed, secure and level surface.
  • Page 22 Whenever the machine is to be handled or 2.4 BATTERY / BATTERY CHARGER transported you must: – turn off the motor, wait for the chain to stop ATTENTION and unplug the machine from the mains; The following safety rules complement the –...

  • Page 23: Getting To Know The Machine

    3.1 DESCRIPTION OF THE MACHINE Do not throw electrical equipment away AND PLANNED USE with domestic waste. According to the European Directive 2012/19/EU on The machine is essentially composed of a electrical and electronic equipment battery powered motor and a guide bar that waste and its implementation, according that takes the power from the battery to the to UK Regulation “The waste electrical and...

  • Page 24: Safety Signs

    B. Front hand grip: support hand grip located 3.2 SAFETY SIGNS on the front of the chainsaw. This should be grasped using the left hand. The machine has various symbols on it C. Rear hand grip: support hand grip located (fig.

  • Page 25: Assembly

    IMPORTANT Quote the information on the 1. Using the supplied wrench unscrew the nut product identification label whenever you contact or use the tightening knob (Fig. 3.A) and an authorised service centre. remove the chain guard (Fig. 3.B) to access the drive pinion and bar seat.

  • Page 26: Using The Machine

    cutting. Kickbacks occur following an irregular 6.1.3 Checking the chain tension contact of the tip of the bar, with a rapid upward movement of the bar that causes the hand to Perform all operations with the motor off. strike the front guard (Fig. 1.D) It must be manually released to disengage the Always wear heavy duty work gloves.

  • Page 27: Start-Up

    Cooling air ducts Not clogged 6.3 START-UP Guide rod Properly installed 1. Remove the bar cover guard (Fig. 1.J). Chain Sharp, not damaged 2. Make sure the bar and the chain are not or worn, mounted and touching the ground or any other object. tensioned correctly.

  • Page 28: Forestry Work

    • Felling back cut 1. Perform the felling back cut at least 5 cm Make sure the bar and the chain are higher than the horizontal face notch (Fig. in place when you check the oil delivery. 18.B). Start the motor (par. 6.3) and check if the chain oil 2.

  • Page 29: Stop

    1. plant the spiked bumper into the log and use it 3. allow the motor to cool before storing in an as a pivot. Cut with an arched motion to make enclosed space; the bar penetrate the wood (Fig. 21); 4.

  • Page 30: Battery

    2. Insert the battery into its housing on the 7.2 BATTERY machine (Fig. 13.K). 3. Push down the battery all the way until you hear a “ click” that locks it in place and 7.2.1 Battery power reserve guarantees the electrical contact. Battery autonomy is mainly influenced by: 7.3 TOPPING UP THE CHAIN OIL TANK a.

  • Page 31: Chain Catcher

    • To avoid overheating and damage to the motor – The sawdust looks like dust. or the battery, always keep the cooling air vents – Cutting becomes more difficult. clean and free of debris. – The cut is not straight. –...

  • Page 32: Storing

    • position it so that it does not cause a hazard to 9. STORING anyone 11. ASSISTANCE AND REPAIRS 9.1 STORING THE MACHINE This manual provides necessary When the machine is to be stored away: information to run the machine and for correct basic maintenance operations which can be 1.

  • Page 33: Maintenance Table

    13. MAINTENANCE TABLE Intervention Frequency Paragraph First time And then after every MACHINE Check all fasteners Before each use Safety checks/check controls Before each use Check the chain catcher Before each use General cleaning and inspection After each use Cleaning the chain After each use 7.4.2 Check the machine and bar lubrication holes...
  • Page 34 3. With the throttle lock button Excessive chain tensioning Retension the chain (par. 6.1.3). and throttle trigger lever on, Bar and chain problems Check that the chain runs the chain does not turn freely and the bar guides are not deformed (par. 8.2, 8.3). Machine damaged.

  • Page 35: Attachments On Request

    11. The battery charger is not Battery is not correctly inserted Check it is correctly recharging the battery in the battery charger inserted (par. 7.2.2) Unsuitable environmental Recharge the battery in places conditions with suitable temperatures (see battery/battery charger instruction manual) Dirty contacts Clean the contacts The battery charger...
  • Page 36 2. Dichiara sotto la propria responsabilità, che la macchina: Motosega a catena alimentata a batteria portatile (abbattimento, sezionamento, sramatura di alberi) a) Tipo / Modello Base: CS 100 Li 20 A - CS 100 Li 20 S c) Numero di Serie: 23A••CHA000001 ÷ 99L••CHA999999...
  • Page 37 2. Hereby declares under its own responsibility that the machine (function): Battery powered pole-mounted pruner (felling, bucking, delimbing trees) a) Homologation type: CS 100 Li 20 A - CS 100 Li 20 S c) Serial number: 23A••CHA000001 ÷ 99L••CHA999999 d) Engine: battery-operated 3.
  • Page 38 FR (Traduction de la notice originale) EN (Translation of the original instruction) DE (Übersetzung der Originalbetriebsanleitung) Déclaration CE de Conformité EC Declaration of Conformity (Directive Machines 2006/42/CE, Annexe II, partie (Machine Directive 2006/42/EC, Annex II, part A) EG-Konformitätserklärung 1. The Company (Maschinenrichtlinie 2006/42/EG, Anhang II, Teil 1.
  • Page 39 NO (Oversettelse av orginal bruksanvisning) SV (Översättning av bruksanvisning i original) DA (Oversættelse af den originale brugsanvisning) EF- Samsvarserklæring EG-försäkran om överensstämmelse (Maskindirektiv 2006/42/EF, Vedlegg II, del A) (Maskindirektiv 2006/42//EG, bilaga II, de la) EF-overensstemmelseserklæring 1. Firmaet 1. Företaget (Maskindirektiv 2006/42/EF, bilag II, del A) 2.
  • Page 40 SL (Prevod izvirnih navodil) BS (Prijevod originalnih uputa) SK (Preklad pôvodného návodu na použitie) ES izjava o skladnosti EZ izjava o sukladnosti ES vyhlásenie o zhode (Direktiva 2006/42/ES) , priloga II, del A) (Direktiva o mašinama 2006/42/EZ, Prilog II, deo A) (Smernica o Strojných zariadeniach 2006/42/ES, 1.
