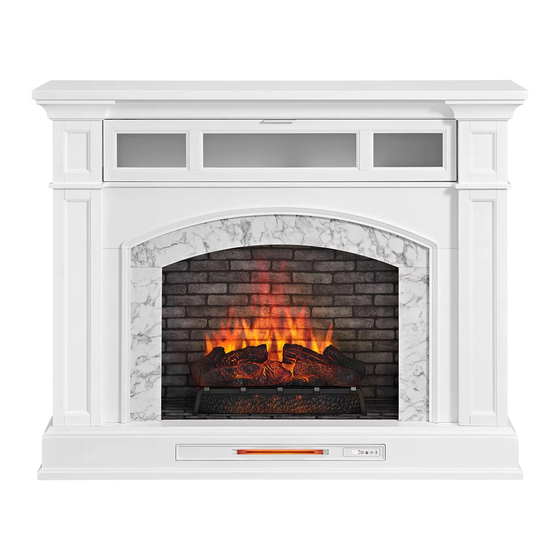

Page 3: Safety Information
GENERAL BEST PRACTICES FOR ASSEMBLY: Read all instructions before starting Clear a large flat area to begin assembly Some steps may require a helper Hardware required is provided for each step Pay attention to orientation SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules. - Page 4 SAFETY INFORMATION (CONT’D) • This product is intended to fit most plasma and LCD televisions (up to 70 inches and weighing a maximum of 90 pounds). Using this item with loads heavier than the stated maximum can result in tipping and/or instability, which can result in injury or even death.
- Page 5 SAFETY INFORMATION (CONT’D) where it may fall into a bathtub or other water container. • To disconnect this appliance, turn controls to the OFF position, then remove plug from outlet. • ONLY connect to properly grounded outlets. • This appliance, when installed, must be electrically grounded in accordance with local codes, with the current CSA C22.1 Canadian Electrical Code or follow U.S.A.
-
Page 6: Parts List
PARTS LIST Left Wall Right Wall Left Front Panel Right Front Panel Left Opening Plate Right Opening Plate Upper Opening Plate Heater Top Panel Fireplace Brick Wall Fireplace Glass Front Base And Heater Fire Log Fireplace Grate Remote Control (Battery Inside) Wood Door Panel (Optional) -
Page 7: Hardware List
HARDWARE LIST Ø1/4”*1-1/4” 19D*1.5mm Ø8*30mmL Ø7*12mmL Bolt Washer Wooden Dowel Screw Touch-up Pen Allen Wrench Tip Restraint Hardware PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Assembly Time: 45 minutes. - Page 8 STEP 1 Insert two wooden dowels (CC) into holes on the left front panel (D). Align the holes on the left front panel (D) with the corresponding holes on the left wall (B). Securing with two washers (BB) and two bolts (AA) using the Allen Wrench provided (FF) as shown in the diagram.
- Page 9 STEP 2 Insert four wooden dowels (CC) into the holes on the base and heater (L). Align the right wall (C) with the inserted wooden dowels and lower into place. Secure the right wall (C) to the base and heater (L) with two washer (BB) and two bolts (AA) using the Allen Wrench provided (FF) as shown in the diagram.
- Page 10 STEP 3 Insert four wooden dowels (CC) into the holes on the base and heater (L). Align the holes on the left front panel (D) with the corresponding holes on the left opening plate (F). Securing with three washers (BB) and three bolts (AA) using the Allen Wrench provided (FF) as shown in the diagram.
- Page 11 STEP 4 Insert six wooden dowels (CC) into the outer holes at the top of the opening plates (F, G). Align the upper opening plate (H) with the inserted wooden dowels and lower into place. Secure the upper opening plate (H) to the opening plates (F, G) with four washer (BB) and four bolts (AA) using the Allen Wrench provided (FF) as shown in the diagram.
- Page 12 STEP 5 Insert four wooden dowels (CC) into the outer holes at the top of the walls (B, C). Attach the top (A), securing from underneath with seven washers (BB) and seven bolts (AA) using the Allen Wrench provided (FF) as shown in the diagram.
- Page 13 STEP 6 From behind the assembly, attach the fireplace glass front (K) by carefully lowering it into the front groove on the base and heater (L). Secure the glass by turning the pre-assembled plastic knobs. Feed the USB cable from the heater underneath through the cable hole on the base. Assembled View:...
- Page 14 STEP 7 Place the fireplace grate (N) by matching the bottom pins into the holes on the base and heater (L). Assembled View:...
- Page 15 STEP 8 Remove the film from the adhesive on the top of the fireplace grate (N) and place the fire log (M) on the center of the fireplace grate (N). Attach the USB cable from the heater to the USB port behind the fireplace grate (N). Assembled View:...
- Page 16 STEP 9 Unfold the fireplace brick wall (J) and brackets. Assembled View:...
- Page 17 STEP 10 Insert the fireplace brick wall (J) into the mantel, slotting it into the grooves of the base and heater (L). Secure it by placing two screws (DD) into the bracket. “Phillips screwdriver not included” Assembled View: Ø7*12mmL Screw “not included”...
- Page 18 STEP 11 Place the heater top panel (I) on top of the firebox with corner bumpers facing inward. Assembled View:...
- Page 19 STEP 12 NOTE: Use the pre-assembled levelers on the base of the fireplace to level the unit. Twist the levelers counter-clockwise to increase the height, twist clockwise to decrease the height.
- Page 20 STEP 13 WARNING: You must install the tip restraint hardware to help prevent any accidents or damage to the unit. We strongly recommend attaching the tip restraint hardware to a wall stud and your unit. For all other wall types, please visit your local hardware store to obtain the proper hardware.
- Page 21 CHANGE DOOR PANEL (OPTIONAL) Note: The pre-installed glass door panel can be switched out with the included wood door panel (Q). 1. Remove the silicone trim along the outer edges of the glass panel on the inside of the flip down door. Start at a corner and pull to remove the four pieces.
- Page 22 FITS UP TO MOST 177.8 cm / 70 in FLAT PANEL TVS MAXIMUM LOAD 40.82 kg / 90 lb MAXIMUM LOAD 15.87 kg / 35 lb SKU#810617766/ITEM#2693FM-30-201 DISTRIBUTION: Greentouch Home Limited ADDRESS: Room 4007, Central Plaza, 18 Harbour Road,Wanchai, Hong Kong...
- Page 23 OPERATING INSTRUCTIONS Control Panel Remote Control To use the remote control, first remove the plastic tab by gently pulling it out of remote control. Controls and Display The control panel will display the heater setting when the unit power is turned ON. Whichever control icon you press will display the current setting of the corresponding function.
- Page 24 OPERATING INSTRUCTIONS (CONT’D) Heater Function (Control Panel Only) • Press the HEATER ICON to display the current heater setting. • Press the HEATER ICON again to scroll down through the heater settings. Note: Long-hold the icon to quickly scroll through settings. •...
-
Page 25: Care And Maintenance
CARE AND MAINTENANCE • Make sure the unit is turned OFF, unplugged and the heating elements of heater are cool whenever you are cleaning the heater or fireplace. • Clean the metal trim using a water-dampened soft, clean cloth. DO NOT use brass polish or household cleaners as these products will damage the metal trim. -
Page 26: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Error E1 displayed The overheat sensor has Unplug unit, wait 15-20 minutes, then the sensor will reset on control panel. been engaged. itself. Plug the unit back in and turn on the heater. If the problem persists, call customer service. -
Page 27: One-Year Limited Warranty
ONE-YEAR LIMITED WARRANTY The manufacturer warrants that your new electric fireplace is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. Install and operate this electric fireplace in accordance with the installation and operating instructions furnished with the product at all times. -
Page 28: Replacement Parts List
GRATE B Remote Control RC-HE85EL02 Heater-white KDI-02-26-201-M Touch-up Pen OF-0010 Tip Restraint Hardware ANTI-TIP HARDWARE SET2 KD Hardware Pack 2693FM-30-201-HARDWARE PACK Leveler T-1007 Glass Clips GLASS CLIPS Flip-Down Door Handle PU-1860HW-04-WHITE HANDLE Flip-Down Door PU-2693FM-LL/MM/NN Hardware Set Printed in Vietnam...
