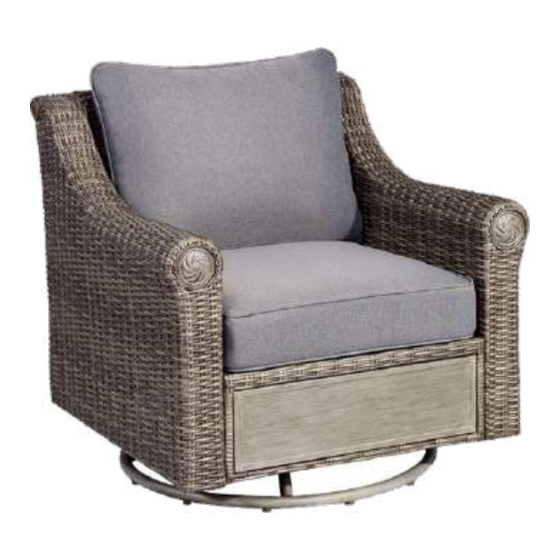

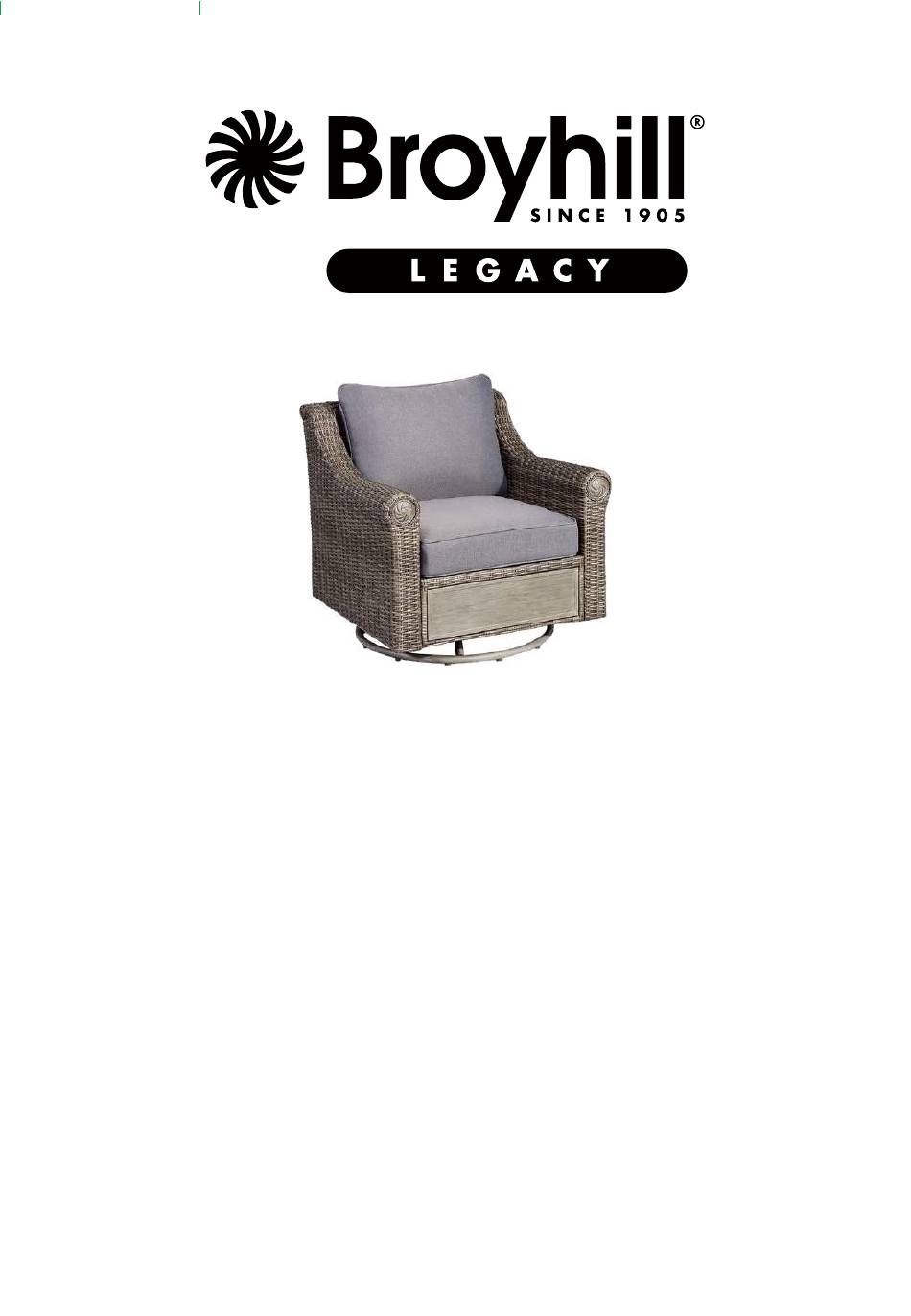

- Page 1 ASSEMBLY INSTRUCTION ITEM#: RVS966Z SKU#: 810487341 T H O R N W O O D S W I V E L G L I D E R 1 (877) 539 – 7436 Need help? We are here for you! • Toll Free service.cci@polywares.com •...
-
Page 2: Maintenance
GENERAL BEST PRACTICES FOR ASSEMBLY: Read all instructions before starting Clear a at covered space to begin assembly Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Letter of the part corresponds to a sticker on the product Number of the hardware corresponds to its letter in the package Helpful hints provided along the way Retain these assembly instructions for future reference. -
Page 3: Parts List
PARTS LIST PART PART MATERIAL CODE PART Q’TY MATERIAL CODE PART Q’TY RVS966Z-CS03-1 17C33A0710001YX BACK ASSEMBLY BOLT M6*30 RVS966Z-CS02-1 17C33A0706001YX SEAT ASSEMBLY BOLT M6*15 RVS966Z-CS01-2 17FA05040301-YX LEFT ARM WASHER d6.5*D13*1.0 RVS966Z-CS01-3 17FA05100701-YX WASHER d6.5*D30*2.0 RIGHT ARM RVS966Z-CS14-1 17FA08060601-YX SUPPORT FRAME WASHER d8.5*D17*1.6 RVS966Z-CS19-1 17FD08300501-YX... - Page 4 STEP 1 PARTS REQUIRED: 4, 9, 12, & 19 Keep the bolts loose. STEP 2 PARTS REQUIRED: 3, 9, 12, & 19 Keep the bolts loose. PAGE 3 OF 8 E-320...
- Page 5 STEP 3 PARTS REQUIRED: 1, 2, 11, 16, & 21 Keep the bolts loose. STEP 4 PARTS REQUIRED: 1, 3, 4, 23, & 24 Keep the bolts loose. 3 24 23 Note: The labels marked “L” and “R” on the arms (#3 and #4) should coincide with Step 4 to ensure proper assembly.
- Page 6 STEP 5 PARTS REQUIRED: 1, 3, 4,14, & 16 Keep the bolts loose. STEP 6 PARTS REQUIRED: 2, 3, 4, 15, & 16 Keep the bolts loose. PAGE 5 OF 8 E-320...
- Page 7 STEP 7 PARTS REQUIRED: 5, 9, 12, & 19 Keep the bolts loose. STEP 8 PARTS REQUIRED: 5, 6, 13, 18, 20, & 22 Tighten all bolts by using the supplied Hex key. PAGE 6 OF 8 E-320...
- Page 8 STEP 9 PARTS REQUIRED: 7 & 8 STEP 10 PARTS REQUIRED: 6, 8, 10, & 17 Note: For ease with installation, we recommend that the seat post (#6) be slightly olied or waxed before fastening it to the base assembly (#8). PAGE 7 OF 8 E-320...
- Page 9 STEP 11 PARTS REQUIRED: 25 & 26 Caution: To ensure one’s safety during use of this swivel glider, make sure that all of the bolts are completely tightened. This chair has the ability to swivel; therefore use by young children should be adult supervised. Warranty •...
