aspenhome
ah
ITEM NO: I3048-450
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
FUNCTIONALITY INSTRUCTION
Remove the power cord
from the bottom of the
case. Remove the twist ties.
WARNING! Before using this product, please read, understand, and follow these instructions. Failure to follow
each of these assembly instructions precisely may result in damage to the product and / or injury to the consumer.
Page 1/2

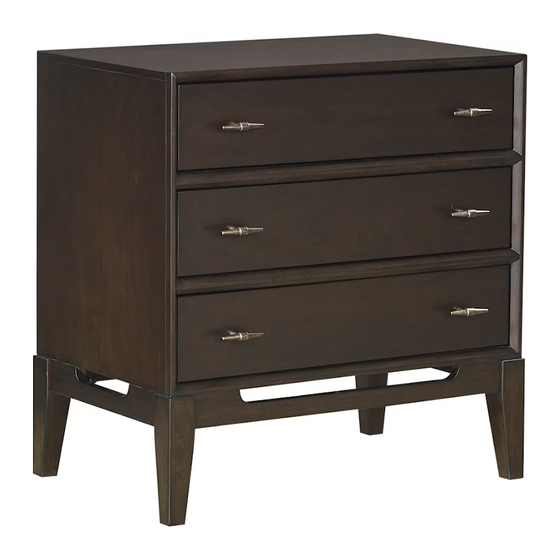

Liv360 Nightstand
UNIT SHOULD BE INSTALLED BY 2 OR MORE PERSONS.
FOR INDOOR USE ONLY
MADE IN VIETNAM
ASSEMBLY INSTRUCTIONS
R
TOOLS REQUIRED (NOT PROVIDED)
PHILLIPS SCREWDRIVER
HARDWARE LIST:
Description
No.
A Hex Nut Ø5/16"
Lock Washer Ø5/16"
B
Flat Washer Ø5/16" x 3/4"
C
D Hex Wrench 12mm
COMPONENTS LIST:
Description
No.
1
Case
Leg
2
Motion Light
Sketch
Sketch
Felt-lined Top Drawer
Cedar-lined Bottom Drawer
Leveler on Legs
Adjust the leveler
when necessary
Quantity
8 PCS
8 PCS
8 PCS
1 PC
Quantity
1 PC
4 PCS
12-28-2023
Advertisement
Table of Contents
Related Manuals for aspenhome Liv360 I3048-450
Summary of Contents for aspenhome Liv360 I3048-450
- Page 1 ASSEMBLY INSTRUCTIONS ITEM NO: I3048-450 Liv360 Nightstand Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment. UNIT SHOULD BE INSTALLED BY 2 OR MORE PERSONS.
- Page 2 ASSEMBLY INSTRUCTIONS ITEM NO: I3048-450 Liv360 Nightstand STEP 1: Put the case face down on a soft surface. STEP 2: Attach the legs to the case by using 8 flat washers (C), lock washers (B) with hex nuts (A). Use the Hex wrench (D) provided to tighten all the bolts.
- Page 3 PIR-11U05 - Motion Light (1) Basic Product Specifications 1. Sensing Distance: 0.7~3m 2. LED Time Delay: 25 Seconds 3. Angle Coverage: 120° (2) Slide switch ON/OFF user manual 1. Slide switch off (default) - Disable Ambient Light Detection The PIR sensor stays activated continuously. 2.
