aspenhome
ah
ITEM NO: I215-9150
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
HARDWARE LIST:
Description
No.
Bolt Ø1/4" x 1"
A
Bolt Ø1/4" x 2-3/16"
B
Lock Washer Ø1/4"
C
Flat Washer Ø1/4" x 3/4"
D
Allen Wrench 4mm
E
L Bracket
F
G
Wood Screw #4 x 5/8"
FUNCTIONALITY INSTRUCTION
Flip down keyboard tray
Adjust the leveler
when necessary
Leveler on bases
BEFORE USING THIS PRODUCT PLEASE READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
Save these instructions for future reference.
Page 1/2
R

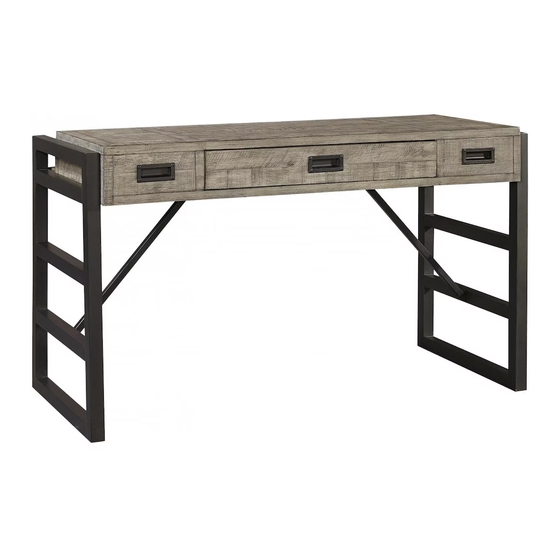

Liv360 Sofa/Writing Table
Quantity
Sketch
4 PCS
8 PCS
12 PCS
12 PCS
1 PC
2 PCS
4 PCS
FOR INDOOR USE ONLY
MADE IN VIETNAM
TOOLS REQUIRED (NOT PROVIDED)
PHILLIPS SCREWDRIVER
COMPONENTS LIST:
Description
No.
1
Table Top Assembly
2
Side Assembly (left)
Side Assembly (right)
3
4
Support Stretcher
Double Powered USB
Port for Charging
Metal plate
Press here to release
Hook latch
Quantity
Sketch
1 PC
1 PC
1 PC
2 PCS
Table Back
07-09-2020
Advertisement
Table of Contents
Related Manuals for aspenhome Liv360 1215-9150
Summary of Contents for aspenhome Liv360 1215-9150
- Page 1 ASSEMBLY INSTRUCTIONS ITEM NO: I215-9150 Liv360 Sofa/Writing Table Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment. TOOLS REQUIRED (NOT PROVIDED)
- Page 2 ASSEMBLY INSTRUCTIONS ITEM NO: I215-9150 Liv360 Sofa/Writing Table STEP 1: Put the table top assembly face down on a soft surface. STEP 2: Take out the side drawers, then attach the side assembly(left/right) to table top assembly by using 8 bolts(B), lock washers(C) and flat washers(D). Do not completely tighten bolts.
