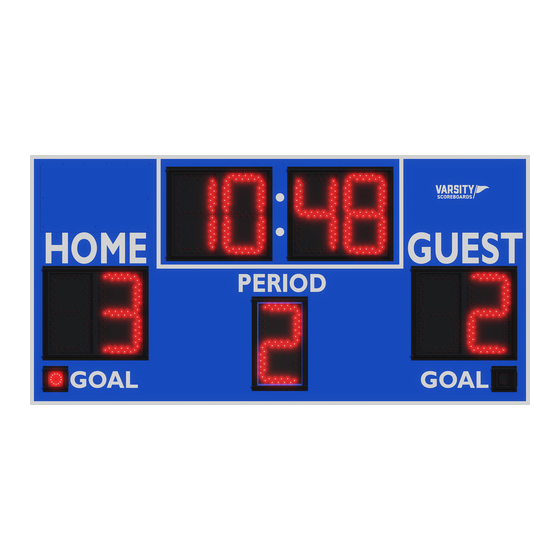

- Page 1 MODEL 3430 Installation Manual 3430...
- Page 2 MODEL 3430 INSTALLATION WARRANTY This product is warranted against defects in materials and workmanship for the period specified in the warranty from the date of invoice. SERVICE Technical Support is available 24 hours a day, 7 days a week. 1-800-411-3136 https://www.varsityscoreboards.com/support/contact-support.html...
- Page 3 A NOTE TO INSTALLERS If you are installing this scoreboard for a client, please return the manual to the individual in charge of the scoreboard upon completion of installation. SCOREBOARD D IMENSIONS 8.0’ wide x 4.0’ tall x 8” depth...
-
Page 4: Table Of Contents
TABLE OF CONTENTS MODEL 3430 INSTALLATION INSTALLATION OVERVIEW PRODUCT SPECIFICATIONS DETERMINING LOCATION AND ORIENTATION INSTALLING MOUNTING POLES OR I-BEAMS MOUNTING THE SCOREBOARD 11 –12 INSTALLING SPONSOR PANELS 13–14 TESTING INSTALLED SYSTEM... -
Page 5: Model 3430 Installation
MODEL 3430 INSTALLATION Please inspect all shipping containers upon arrival for damage and ensure that you have all of the parts listed below: ITEMS IN LARGE PACKAGE(S) (1) 8’ x 4’ S occer Scoreboard Mounting Tools Shipped in (1) section... - Page 6 Ask the delivery driver to call the local terminal and report immediately. Contact Varsity Scoreboards immediately while the delivery driver is still present to report the damage A. Phone number B.
-
Page 7: Installation Overview
INSTALLATION OVERVIEW This manual will walk you through the installation of the scoreboard. While care has been taken to consider the many scenarios for installation, some general information applies to all. Follow this guide as closely as possible to ensure proper installation. Review the product specifications below to determine your specific installation hardware. -
Page 8: Product Specifications
PRODUCT SPECIFICATIONS OVERALL DIMENSIONS WEIGHT 8’ L x 4’ W x 8” D - shipped in one (1) section Hanging weight = approximately 150 lbs Shipping weight = approximately 180 lbs CONSTRUCTION 22-gauge galvanneal steel cabinet with powder coat finish for strength, durability, and lasting appearance INSTALLATION RECOMMENDATIONS We recommend this model to be installed between (2) 8”... -
Page 9: Determining Location And Orientation
DETERMINING LOCATION & ORIENTATION The scoreboard should be positioned so that the greatest number of spectators can easily view it. Also, consider the best orientation of the scoreboard should the system be used to score a daytime or afternoon game. The scoreboard should be positioned so that sunlight does not glare off its face. -
Page 10: Installing Mounting Poles Or I-Beams
INSTALLING MOUNTING POLES OR I-BEAMS 4’ The following information for ins tallin g the mounting poles/ beams a re suggestions only. Local c odes, field pla cement, scoreboard options, c ustomer preference, and other special conside rations will determine the specific s of your installa tion, 14’... -
Page 11: Mounting The Scoreboard
MOUNTING THE SCOREBOARD IMPORTANT: IF YOU DECIDE TO MOUNT THE SCOREBOARD TO A WALL, A MINIMUM OF 12” CLEARANCE MUST BE MAINTAINED FOR ACCESS TO THE POWER ON THE BACK OF THE SCOREBOARD CABINET. NOTE: Choosing to mount the scoreboard to a wall may make servicing the scoreboard more difficult 2-1/2”... - Page 12 Mounting Flat Stock Mounting Flat Stock 3/8” x 1 1/2” Bolts 3/8” x 1 1/2” Bolts TOP OF SCOREBOARD Secure the scoreboard to the If using steel I-beams, either If a sponsor panel was beams using the flat stock weld the mounting flanges purchased, refer to page 13 mounting brackets attached to the supports, or drill the...
-
Page 13: Installing Sponsor Panels
INSTALLING SPONSOR PANELS NOTE: DETERMINE NUMBER OF SPONSOR PANELS BEING INSTALLED AND THEIR LOCATION. (6) 3/8-16 x 3/4” B olts (1) 21” x 8’ P anel (6) 3/8-16 Hex Nut s (9) #8 x 1/2” S elf Tap Screws (3) Mounting Brackets (12) M3/8”... - Page 14 3/8-16 X 3/4” 3/8” FLAT 3/8-18 HEX MOUNTING Self Tapping Screw Sponsor Panel Face Top of Scoreboard Scoreboard Flange (1.5”) Scoreboard Front Before the sponsor panel is Lift the sponsor panel into Using the supplied hardware Install self tap screws through lifted into place, attach the place with the panel resting attach the mounting brackets...
-
Page 15: Testing Installed System
Congratula tions! You’ve successfully installe d your Varsity Scoreboard! If any problems arise, please have the installer call Varsity Scoreboards Customer Service at 800-411-3136 while the installer is still present at the scoreboard.
