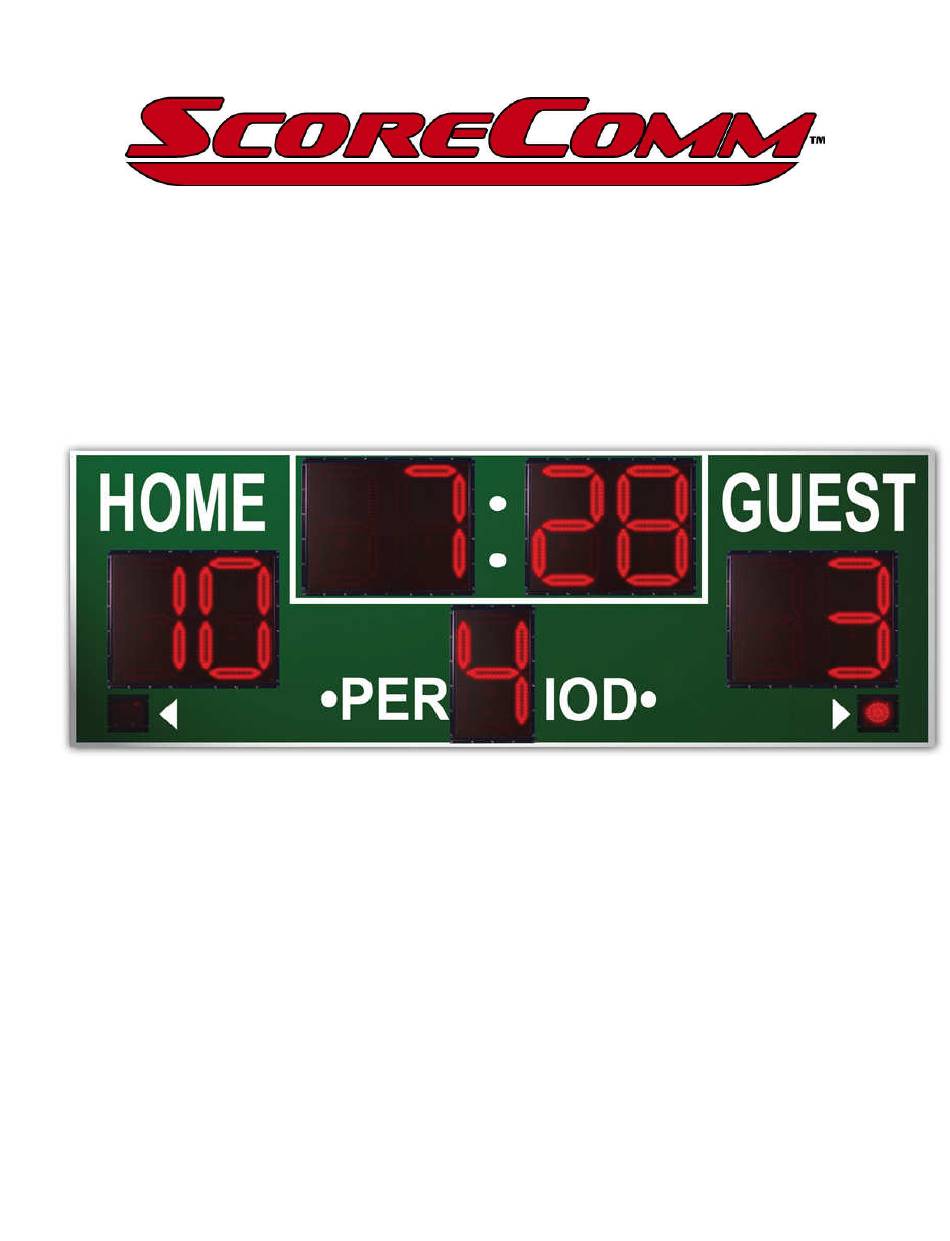

- Page 1 OPERATING INSTRUCTIONS FOR MODEL SCM-707 LED www.scorecomm.com...
-
Page 2: Table Of Contents
Table of Contents CONTROLLER DEFINITIONS ......................3 COMMUNICATION CABLES ......................4 Connecting a Hard Wired Cable ....................4 Connecting a Wireless Transmitter ..................4 GETTING STARTED ........................5 A Note about the LCD Display: ....................5 USING THE OPTIONS MENU ....................... 6 CHANGING GAME MODES: ..................... -
Page 3: Controller Definitions
CONTROLLER DEFINITIONS Before continuing, take a few moments and familiarize yourself with the following terms as they apply to the controller. They are referenced frequently throughout this manual. 1. POWER Switch: The POWER switch is used to turn the controller ON and OFF. 2. -
Page 4: Communication Cables
COMMUNICATION CABLES Connecting a Hard Wired Cable 1. Using the supplied 20-ft. DIN cable, connect one end to either of the DIN sockets on back of the controller and the other end to the junction box receptacle. 2. Connect the AC Adapter to the power jack on the back of the controller and into a standard 120V power source. -
Page 5: Getting Started
GETTING STARTED Begin by making sure the Game Inserts that came with your scoreboard are in the proper location on the controller, as in the image below. A Note about the LCD Display: The LCD display provides the scorer with any information that the scoreboard will display. The Up/ Down Arrows on the GAME Keypad are used to scroll the information on the LCD Display. -
Page 6: Using The Options Menu
power disconnect switch or circuit breaker. This feature serves as a reminder to turn off the power to the scoreboard after each use. Failure to turn off the power to the scoreboard after use could increase the chances of equipment failure. USING THE OPTIONS MENU CHANGING GAME MODES: Access the option menu by pressing RESET quickly followed by OPTION. -
Page 7: Using The Lcd Controller For Football
USING THE LCD CONTROLLER FOR FOOTBALL Make sure the FOOTBALL inserts are in the controller. The game mode is displayed after the controller is turned on and the RESET button is pressed. If it does not display football, refer to the USING THE OPTIONS MENU/CHANGING GAME MODES in the previous section. -
Page 8: Timeout Clock
manual. 1. Enter the option menu by pressing RESET followed by OPTION. 2. At the <SELECT GAME> prompt use the up or down arrow key to select <SET GAME CLOCK> then press ENTER. At the prompt, use the numeric keypad to enter the desired time and press ENTER. i. -
Page 9: End Of Game/Starting A New Game
DAY> and press ENTER. 3. At the prompt, use the numeric keypad to enter the time of day, in a 4-digit format; then press ENTER. 4. Example, to enter 8:03, press 0, 8, 0, 3, then press ENTER. To enter 11:52, press 1, 1, 5, 2, then press ENTER. - Page 10 THE DISPLAYS AND ELECTRONICS. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
