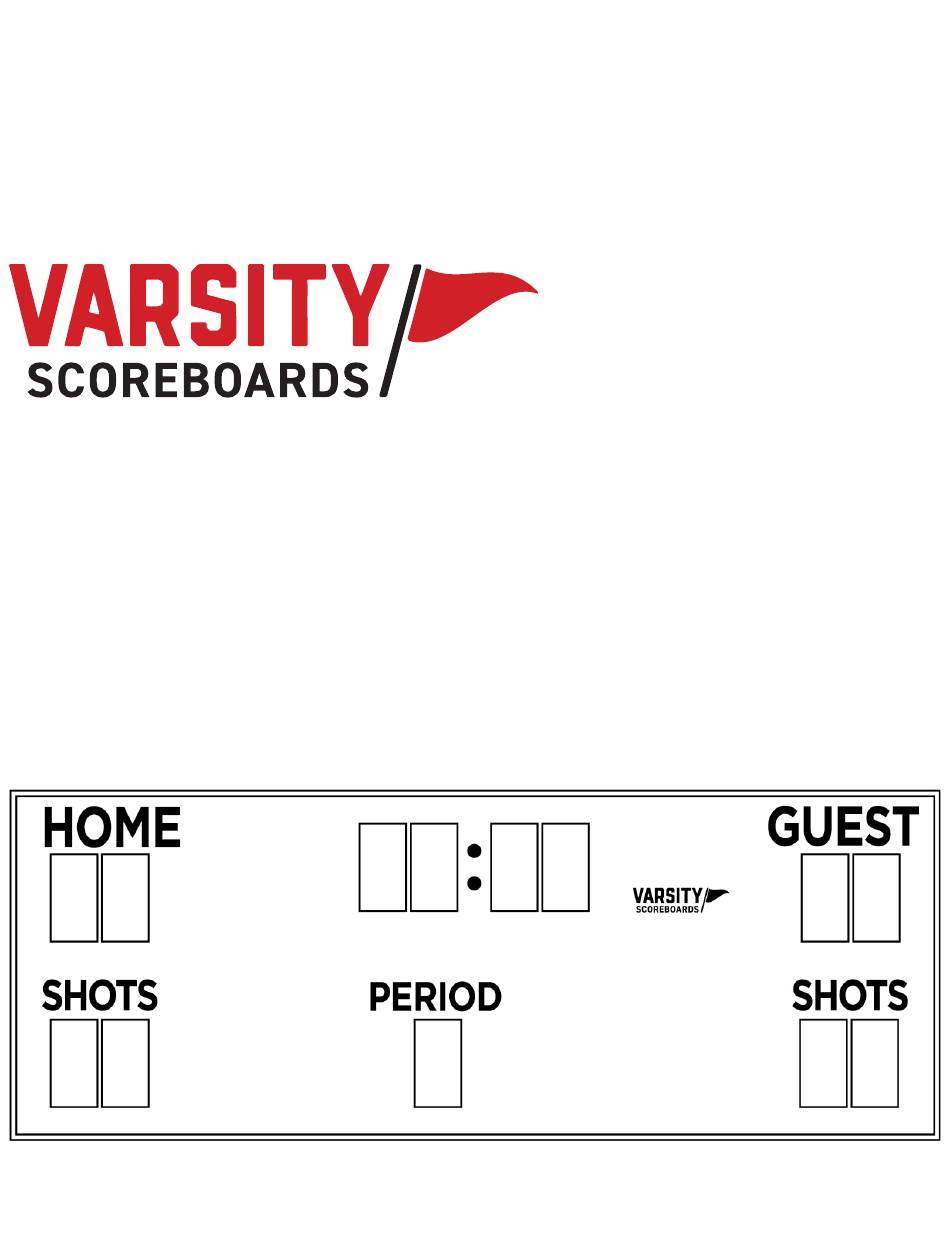

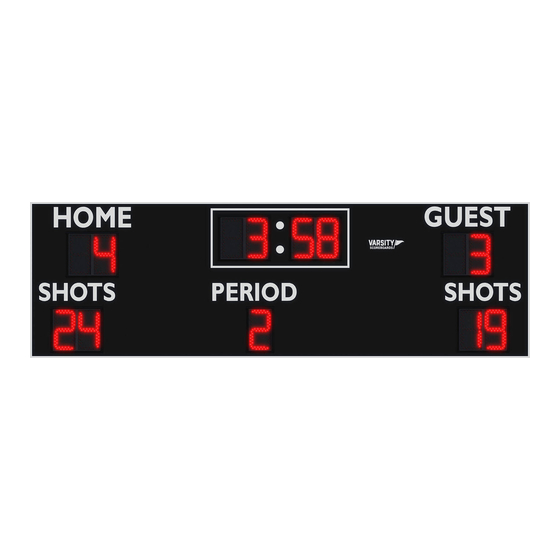

- Page 1 MODEL 3416 Installation Manual...
- Page 2 MODEL 3416 INSTALLATION WARRANTY This product is warranted against defects in materials and workmanship for the period specified in the warranty from the date of invoice. SERVICE Technical Support is available 24 hours a day, 7 days a week. 1-800-411-3136 https://www.varsityscoreboards.com/support/contact-support.html...
- Page 3 A NOTE TO INSTALLERS If you are installing this scoreboard for a client, please return the manual to the individual in charge of the scoreboard upon completion of installation. SCOREBOARD DIMENSIONS 16’ wide x 5’ tall x 8” depth...
-
Page 4: Table Of Contents
MODEL 3416 INSTALLATION . . . . . . . . . . . . . . . . . . . -
Page 5: Model 3416 Installation
MODEL 3416 INSTALLATION Please inspect all shipping containers upon arrival for damage and ensure that you have all of the parts listed below: ITEMS IN LARGE PACKAGE(S) (1) 16’ x 5’ Soccer Scoreboard Mounting Tools Shipped in two (2) sections 16’... - Page 6 Ask the delivery driver to call the local terminal and report im- mediately. Contact Varsity Scoreboards immediately while the delivery driver is still present to report the damage A. Phone number B.
-
Page 7: Installation Overview
INSTALLATION OVERVIEW This manual will walk you through the installation of the scoreboard. While care has been taken to consider the many scenarios for installation, some general information applies to all. Follow this guide as closely as possible to ensure proper installation. Review the product specifications below to determine your specific installation hardware. -
Page 8: Product Specifications
PRODUCT SPECIFICATIONS OVERALL DIMENSIONS WEIGHT 16’ L x 5’ W x 8” D - shipped in two (2) sections Hanging weight = approximately 490 lbs Shipping weight = approximately 555 lbs CONSTRUCTION 22-gauge galvanneal steel cabinet with powder coat finish for strength, durability, and lasting appearance INSTALLATION RECOMMENDATIONS We recommend this model to be installed between (2) 8”... -
Page 9: Determining Location And Orientation
DETERMINING LOCATION & ORIENTATION The scoreboard should be positioned so that the greatest number of spectators can easily view it. Also, consider the best orientation of the scoreboard should the system be used to score a daytime or afternoon game. The scoreboard should be positioned so that sunlight does not glare off its face. -
Page 10: Installing Mounting Poles Or I-Beams
INSTALLING MOUNTING POLES OR I-BEAMS 11’8” The following information for installing the mounting poles/ beams are suggestions only. Local codes, field placement, scoreboard options, customer preference, and other special considerations will determine the specifics of your installation, 15’ - 6” To Top including footer specifications, above ground height, and total length of the poles/I-beams . -
Page 11: Mounting The Scoreboard
MOUNTING THE SCOREBOARD IMPORTANT: *TO ASSEMBLE, LIFT, AND INSTALL USING THIS METHOD, YOUR LIFTING DEVICE MUST BE CAPABLE OF LIFTING IN EXCESS OF 2000 LBS. IF YOU DON’T HAVE ACCESS TO THAT TYPE OF LIFTING DEVICE, YOU MAY NEED TO ASSEMBLE/ LIFT/INSTALL IN SECTIONS. - Page 12 Mounting Flat Stock Mounting Flat Stock 3/8” x 1 1/2” Bolts 3/8” x 1 1/2” Bolts TOP OF SCOREBOARD Connect ALL crossover cables Lift the assembly from the Lift the scoreboard up high Raise the scoreboard to the between cabinets as in the top angle irons to a vertical enough to install the bottom mounting poles or I Beams...
-
Page 13: Installing Sponsor Panels
INSTALLING SPONSOR PANELS NOTE: DETERMINE NUMBER OF SPONSOR PANELS BEING INSTALLED AND THEIR LOCATION. (7) 3/8-16 x 3/4” Bolts (2) 21” x 8' Panel (7) 3/8-16 Hex Nuts (18) #8 x 1/2” Self Tap Screws (6) Mounting Brackets (14) M3/8” Flat Washers... - Page 14 3/8-16 X 3/4” 3/8” FLAT 3/8-18 HEX MOUNTING Self Tapping Screw Sponsor Panel Face Top of Scoreboard Scoreboard Flange (1.5”) Scoreboard Front Before the sponsor panel is Install self tap screws through Lift the sponsor panel into Using the supplied hardware lifted into place, attach the the scoreboard’s front flange place with the panel resting...
-
Page 15: Testing Installed System
Congratulations! You’ve successfully installed your Varsity Scoreboard! If any problems arise, please have the installer call Varsity Scoreboards Customer Service at 800-411-3136 while the installer is still present at the scoreboard.
