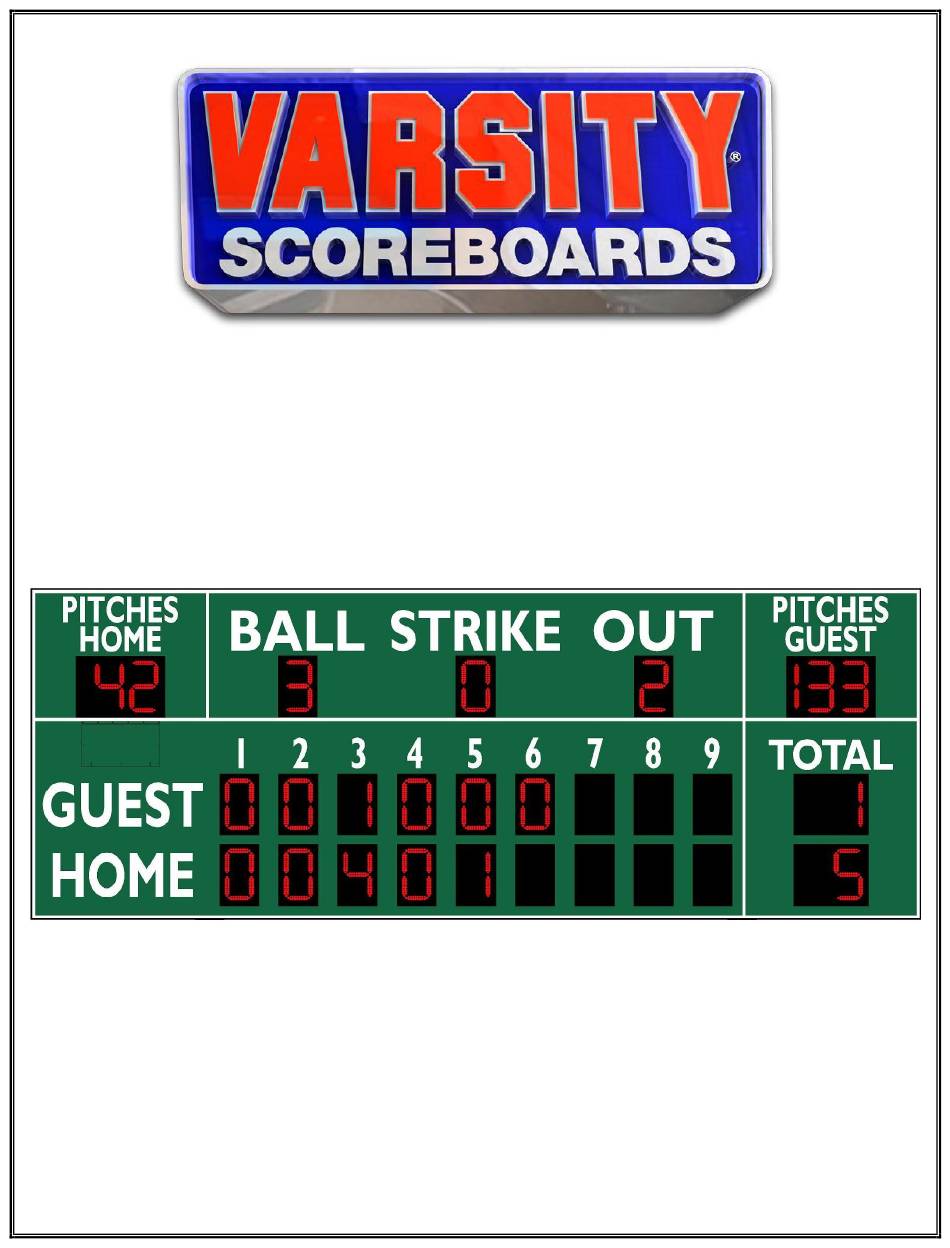

- Page 1 INSTALLATION INSTRUCTIONS MODEL 3359 www.varsityscoreboards.com...
- Page 2 8’ X 20’ OUTDOOR SCOREBOARD MODEL 3359 NOTE TO INSTALLERS: PLEASE FILL OUT AND SIGN THE INSTALLATION/WARRANTY FORM ON THE LAST PAGE OF THIS MANUAL AND RETURN THE MANUAL TO THE INDIVIDUAL IN CHARGE OF THE SCOREBOARD UPON COMPLETION OF INSTALLATION.
-
Page 3: Installation Overview
INSTALLATION OVERVIEW This manual will walk you through the installation of the scoreboard. While care has been taken to consider the many scenarios for installation, some general information applies to all. Use this guide as closely as possible to ensure proper installation, as follows: ... - Page 4 DETERMINING LOCATION AND ORIENTATION The scoreboard should be positioned so that the greatest number of spectators can easily view it. Also, consider the best orientation of the scoreboard should the system be used to score a daytime or afternoon game. The scoreboard should be positioned so that sunlight does not glare off of its face. In the U.S., placement on the South or West side of the field is recommended.
- Page 5 NOTE: The length of Beam/Pole above ground should be calculated by including the height of top and/or bottom sponsor panels if they are part of the installation. INSTALLING THE MOUNTING POLES/BEAMS The following information for installing the mounting poles/beams is for suggestions only. Local codes, field placement, scoreboard options, customer preference, and other special considerations will determine the above ground height and total length of the poles/beams.
- Page 6 ASSEMBLING AND MOUNTING THE SCOREBOARD IMPORTANT: DO NOT MOUNT FLAT TO A WALL. A MINIMUM OF 18” CLEARANCE MUST BE LEFT FOR ACCESS TO THE REAR OF THE UNIT, AS THE POWER AND SIGNAL CABLE ACCESS DOORS ARE LOCATED ON THE BACK OF THE SCOREBOARD.
- Page 7 8. Weld or bolt the mounting angle to the poles or I Beams you are clamped to and follow the same procedure at the bottom of the scoreboard, clamp and weld or bolt. Follow by welding or bolting the angle to the center pole or I Beam at the top and bottom. It may be necessary to use clamps here as well.
-
Page 8: Testing The Installed System
From the ground, run the control cable through sealed, raintight conduit then through a rain- tight conduit fitting into the left side of the signal cable/power access door and into the scoreboard. Inside the scoreboard, connect the control cable leads to the appropriate terminals on the terminal block, according to the label above the terminal block. - Page 9 Connect one end of the supplied 20-ft. control cable into either of the two control cable jacks on the back of the controller and the other into the receptacle on the supplied junction box cover installed at the scorekeeper’s location. Using the wireless system: Simply power on the LCD keyboard controller –...
- Page 10 IMPORTANT Warranty Activation/Installation & Completion Sign Off Sheet NOTE: This sheet must be completely filled out and returned/faxed (270) 753-3773 to Scoreboard Service Company before your warranty can be activated. Your Serial Number _______________________________________ Your Model Number _______________________________________ Date Purchased _______________________________________ Sales Agent _______________________________________...
