Summary of Contents for VARSITY Scoreboards 3532-3DC

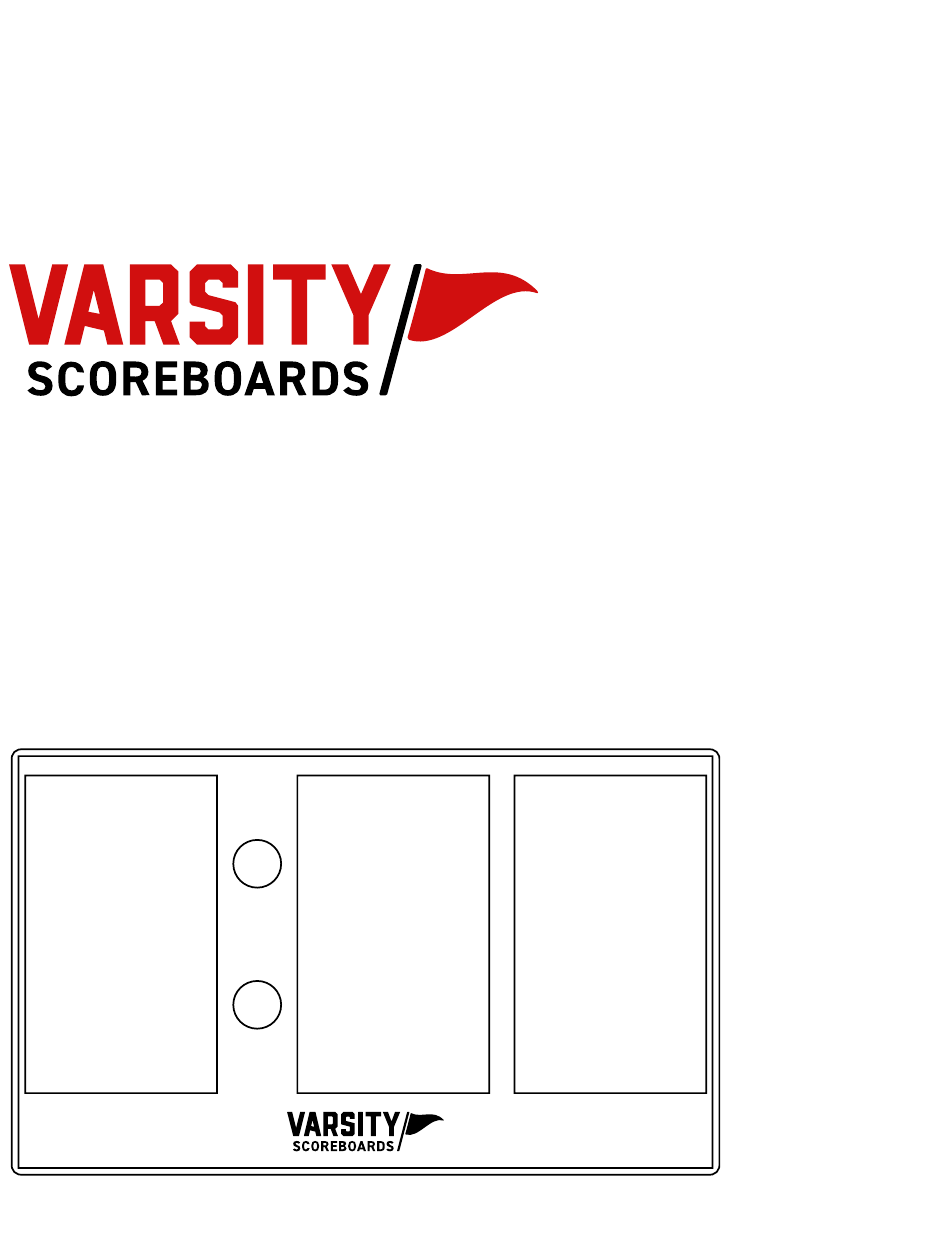

- Page 1 MODEL 3532-3DC Installation Manual...
-
Page 2: Warranty
MODEL 3532-3DC INSTALLATION WARRANTY This product is warranted against defects in materials and workmanship for the period specified in the warranty from the date of invoice. SERVICE Technical Support is available 24 hours a day, 7 days a week. install@varsityscoreboards.com 1-800-411-3136 https://www.varsityscoreboards.com/support/contact-support.html... - Page 3 A NOTE TO INSTALLERS If you are installing this pitch clock for a client, please return the manual to the individual in charge of the pitch clock upon completion of installation. PITCH CLOCK DIMENSIONS 6.5’ W x 4’ H x 8” D...
-
Page 4: Table Of Contents
TABLE OF CONTENTS MODEL 3532-3DC INSTALLATION INSTALLATION OVERVIEW PRODUCT SPECIFICATIONS DETERMINING LOCATION AND ORIENTATION INSTALLING MOUNTING POLES OR I-BEAMS MOUNTING THE PITCH CLOCKS 11–12 TESTING INSTALLED SYSTEM... -
Page 5: Model 3532-3Dc Installation
MODEL 3532-3DC INSTALLATION Please inspect all shipping containers upon arrival for damage and ensure that you have all of the parts listed below: ITEMS IN LARGE PACKAGE(S) (1) 6 5’ x 4’ Baseball Pitch Clock (1) Mounting Tools Shipped in one (1) 6.5’ x 4’ package... - Page 6 Note “DAMAGED” on the Delivery Receipt Form, including details of the type of damage to the freight and packaging. Ask the delivery driver to call the local terminal and report immediately. Contact Varsity Scoreboards immediately while the delivery driver is still present to report the damage. A. Phone number B.
-
Page 7: Installation Overview
INSTALLATION OVERVIEW This manual will walk you through the installation of the pitch clock. While care has been taken to consider the many scenarios for installation, some general information applies to all. Follow this guide as closely as possible to ensure proper installation. Review the product specifications below to determine your specific installation hardware. -
Page 8: Product Specifications
PRODUCT SPECIFICATIONS OVERALL DIMENSIONS WEIGHT 6.5’ W x 4’ H x 8” D - shipped in one (1) section Hanging weight = approximately 120 lbs Shipping weight = approximately 175 lbs CONSTRUCTION 22-gauge galvanneal steel cabinet with powder coat finish for strength, durability, and lasting appearance INSTALLATION RECOMMENDATIONS We recommend this model to be installed between (2) 8”... -
Page 9: Determining Location And Orientation
DETERMINING LOCATION & ORIENTATION The pitch clock should be positioned so that the greatest number of spectators can easily view it. Also, consider the best orientation of the pitch clock, should the system be used to score a daytime or afternoon game. -
Page 10: Installing Mounting Poles Or I-Beams
INSTALLING MOUNTING POLES OR I-BEAMS The following information for installing the mounting poles/beams are suggestions only. Local codes, field placement, pitch clock options, customer preference, and other special considerations will determine the specifics of your installation, including footer specifications, above ground height, and total length of the poles/I- beams Consult with local building officials for the required pole sizes and 4’... -
Page 11: Mounting The Pitch Clocks
MOUNTING THE PITCH CLOCK IMPORTANT: IF YOU DECIDE TO MOUNT THE PITCH CLOCK TO A WALL, A MINIMUM OF 12” CLEARANCE MUST BE MAINTAINED FOR VENTING OF THE PITCH CLOCK. Carefully remove the clock from its Lifting Holes packaging, making sure not to pry against or cut into the Pitch Clock. - Page 12 NOTE: IF THE ASSEMBLY DOES NOT LAY FLAT AGAINST THE FACE OF THE POLES/I-BEAMS AT ANY POINT OF THE POLES/I-BEAMS, DO NOT FORCE THE ASSEMBLY TO THE POLE/I-BEAM. INSTEAD, USE SHIMS TO SPAN THE GAP BETWEEN THE ASSEMBLY AND POLE/I-BEAM. NOTE: IF USING STEEL ROUND POLES, USE A U-BOLT, STRAIGHT-THROUGH BOLT OR WELD ONTO THE ROUND POLE TO SECURE IN PLACE.
