215-1849 Rev. C: ECN 19-08-037E
© 2020 Bradley
Page 1 of 12
2/26/2020

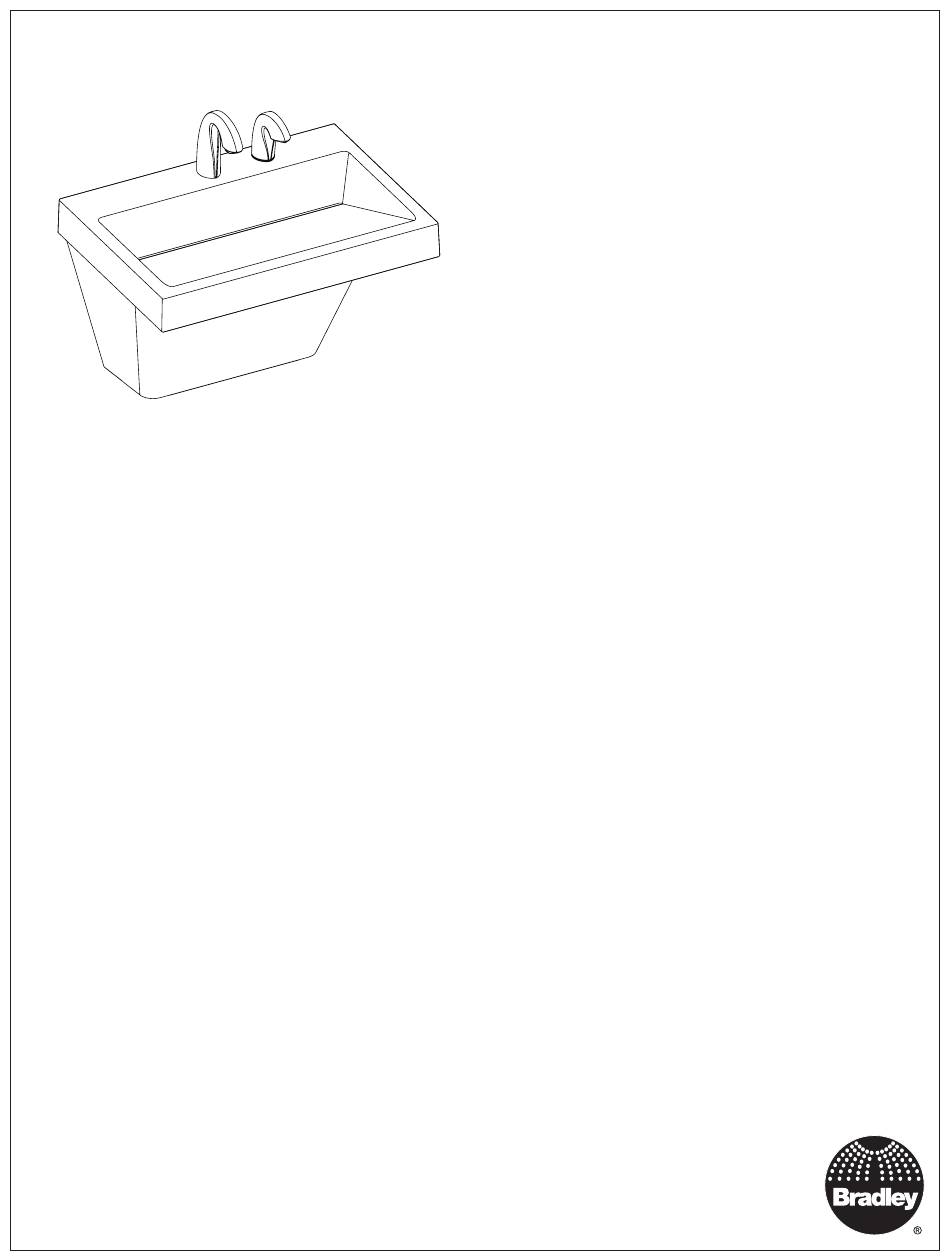

Installation
LVAD1
Verge
Wash Basin - LVA-Series with
®
Evero
Natural Quartz Material
®
Table of Contents
Components ......................................................................3
Supplies Required .............................................................4
Dimensions ....................................................................4-5
Rough-Ins ......................................................................6-7
Bracket Mounting ...............................................................8
Drain Assembly .................................................................8
Faucet and Soap Installation .............................................9
Bowl Mounting ...................................................................9
Strainer and Drain Cap ....................................................10
Adjust Temperature ..........................................................10
Access Panel ...................................................................11
Cleaning and Maintenance ..............................................12
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
+1 262 251 6000
P.O. Box 309
bradleycorp.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bradley Verge LVA Series
Summary of Contents for Bradley Verge LVA Series
-
Page 1: Table Of Contents
Adjust Temperature ............10 Access Panel ..............11 Cleaning and Maintenance ..........12 P.O. Box 309 215-1849 Rev. C: ECN 19-08-037E Menomonee Falls, WI 53052 USA © 2020 Bradley 800 BRADLEY (800 272 3539) +1 262 251 6000 Page 1 of 12 2/26/2020 bradleycorp.com... - Page 2 If any parts are missing, do not begin installation until you obtain the missing parts. For standard height mounting, do not exceed the recommended 33.5" distance from the fixture rim to the finished floor. Bradley • 215-1849 Rev. C: ECN 19-08-037E 2/26/2020...
-
Page 3: Components
Hose Prepack Two (2) connections supplied by Bradley (S45-2730) are required for TMV. that require a TMV. TMV Valve (½" NPTM Outlet) (S45-2701) Hose Prepack (S45-2702) Supply Fittings (S45-2712) Plastic Hose Plastic Hose Bradley • 215-1849 Rev. C: ECN 19-08-037E 2/26/2020... -
Page 4: Supplies Required
• Level (mm) Dimensions Top View (shown with Crestt Series Faucet and Soap) 5" 6" (127) (152) 21" (533) 14³⁄₈" (366) 29¾" (756) Front View 3¾" (95) 20" (508) 20" (508) 30" (762) Bradley • 215-1849 Rev. C: ECN 19-08-037E 2/26/2020... - Page 5 At least one basin must meet At least one basin must meet Notes dimensional requirements and have dimensional requirements and have proper reach, knee, and toe clearance. proper reach, knee, and toe clearance. Bradley • 215-1849 Rev. C: ECN 19-08-037E 2/26/2020...
-
Page 6: Rough-Ins
Install wall anchor with a minimum pull-out force of 100 lb per local codes at locations shown RIM HEIGHT VERTICAL HEIGHT ADJUSTMENTS FIXTURE STYLE 33½" No Adjustment Standard Height, ADA, TAS, and CSA 30½" Subtract 3" Juvenile, ADA, and TAS Bradley • 215-1849 Rev. C: ECN 19-08-037E 2/26/2020... - Page 7 110V GFI protected electrical outlet (AC faucet and soap only) WashBar Duo requires 120V AC, GFCI outlet properly grounded #10 Anchors for Faucet Control Box Installation #10 Anchors for Soap Tank Installation Bradley • 215-1849 Rev. C: ECN 19-08-037E 2/26/2020...
-
Page 8: Bracket Mounting
Screw Assemble the remaining components as shown and thread the four screws through the drain adapter and into the basin inserts. Ensure the screws compress the drain adapter evenly onto the basin. Bradley • 215-1849 Rev. C: ECN 19-08-037E 2/26/2020... -
Page 9: Faucet And Soap Installation
Press firmly on the back of the bowl rough-in requirement (supplied by to seat the bowl flange into the wall installer). bracket lip. Ensure bowl is level. Bradley • 215-1849 Rev. C: ECN 19-08-037E 2/26/2020... -
Page 10: Strainer And Drain Cap
Using cover, turn cartridge gently until Water in excess of 110°F desired water temperature is reached. Do not turn past stops as this may (43°C) may cause scalding. damage unit. Push cover down and tighten screw. Bradley • 215-1849 Rev. C: ECN 19-08-037E 2/26/2020... -
Page 11: Access Panel
Rotate access panel up and secure by rotating thumbscrews to the closed position To open access panel, rotate thumb screw, slightly push panel up and swing access panel down. Do not remove thumbscrews. Bradley • 215-1849 Rev. C: ECN 19-08-037E 2/26/2020... -
Page 12: Cleaning And Maintenance
Protecting the Surface: To optimize material performance in high use areas, it is recommended to apply DryTreat Stain-Proof Original or equivalent as needed. Repair Kits: Evero repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing. Repair kits are made to order and have a shelf life of 30 days.
