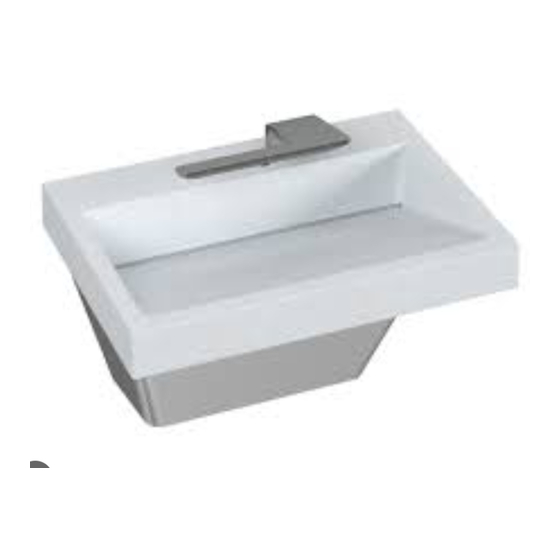

Bradley Verge LVQ Series Installation Manual

Lavatory system with washbar technology
Hide thumbs Also See for Verge LVQ Series:
Table of Contents

Advertisement

Quick Links

Download this manual

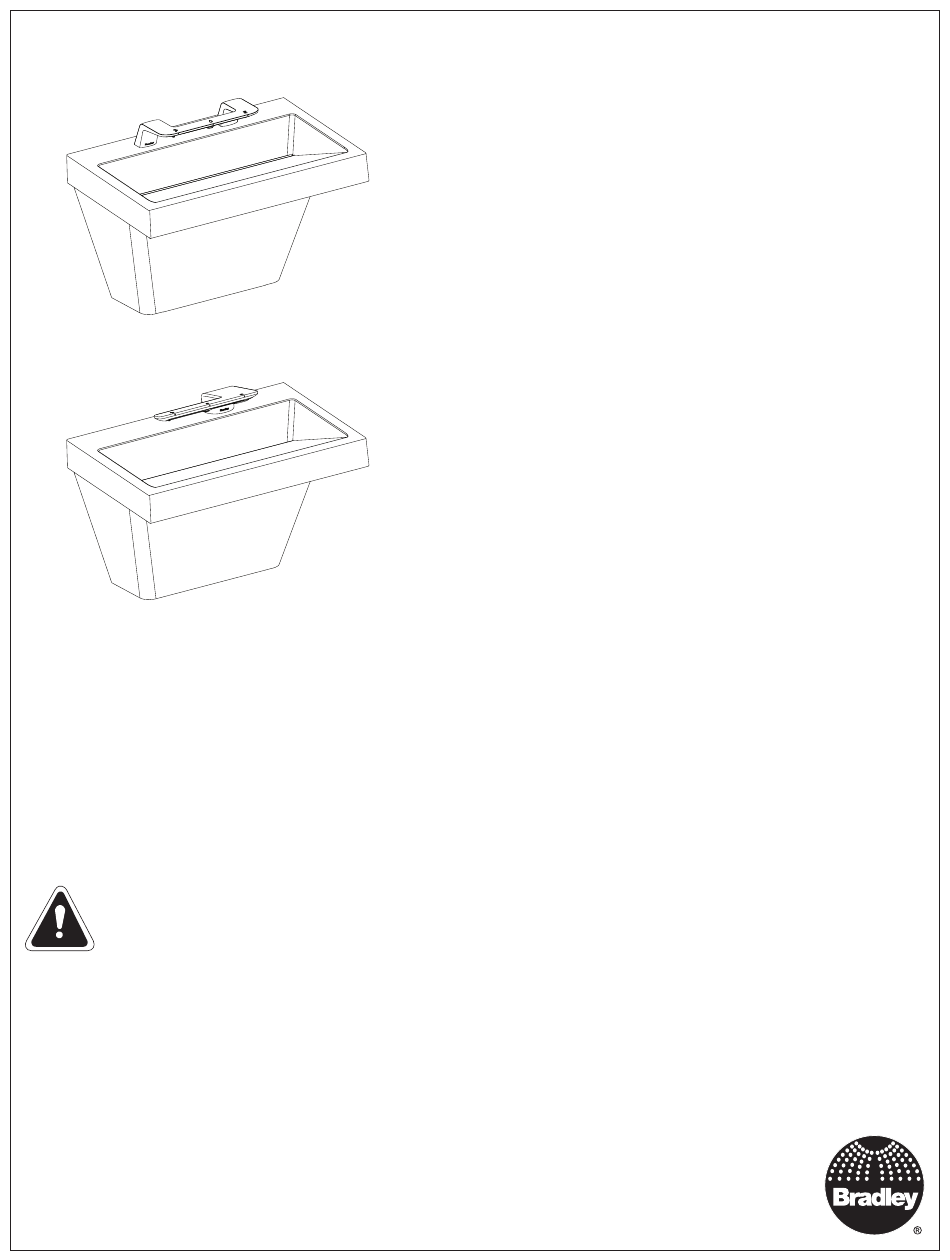

Read the instructions in this manual before
beginning installation. Save these instructions
and refer to them for inspection, maintenance,
and troubleshooting information.
For questions regarding the operation, installation or maintenance of this
product, visit bradleycorp.com or call 800.BRADLEY (800.272.3539).
Product warranties and parts information may also be found under
"Resources" on our website at bradleycorp.com.
215-1842 Rev. M: ECO 22-08-038
© 2022 Bradley
Page 1 of 42
11/21/2022
Shown with WB1
Shown with WB2
Installation
LVQD1
Verge
Lavatory System - LVQ-Series
®
with WashBar
Technology
™

Table of Contents

Safety Information .............................................................2
Supplies Required .............................................................2
Components ......................................................................3
Dimensions ........................................................................7
Rough-Ins ........................................................................12
Bracket Mounting .............................................................16
Drain Assembly ...............................................................16
(Evero Matte - Mason Series Bowl only) ........................17
WashBar Installation .......................................................18
Aerator Installation ...........................................................18
Connections .....................................................................19
Top Fill Soap - Tank Assembly (Part 1) ..........................20
Top Fill Soap - Tank Assembly (Part 2) ..........................24
Soap Container Bracket ..................................................25
Strainer and Standard Drain Cap ....................................26
Strainer and Slotted Drain Cap .......................................26
Dryer Motor Assembly .....................................................27
Attach Power Line Filter ..................................................28
Control Box and Valve Installation ...................................28
Top Fill Soap - Soap Installation .....................................29
Bottom Fill Soap - Soap Installation ...............................33
Electrical Connections .....................................................34
Adjust Temperature with Water Running .........................34
Access Panel ...................................................................35
Master Control Box ..........................................................36
Software Update ..............................................................40
Cycle Counts on LCD Display .........................................40
Cleaning and Maintenance ..............................................41
Dispenser Maintenance ...................................................42
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
P.O. Box 309
+1 262 251 6000
bradleycorp.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Verge LVQ Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bradley Verge LVQ Series

Summary of Contents for Bradley Verge LVQ Series

  • Page 1: Table Of Contents

    Displaying Software Revision and For questions regarding the operation, installation or maintenance of this Cycle Counts on LCD Display .........40 product, visit bradleycorp.com or call 800.BRADLEY (800.272.3539). Cleaning and Maintenance ..........41 Product warranties and parts information may also be found under Liquid Soap Recommendations and “Resources”...

  • Page 2: Safety Information

    • (1) Dedicated 120 VAC, 15A GFCI outlet • Drill • Basin wrench • Tape measure • Phillips screw driver • Flat head screw driver • Level • ⁵⁄₁₆" nut driver • ⁵⁄₁₆" socket (with or without extension) Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...

  • Page 3: Components

    Plastic P-Trap (269-1697) (P18-054) DC Lead Free Valve DC Lead Free Valve Assembly, Single TMA Assembly, Single TL (S08-2401TMA) (S08-2401TL) Hose/90 Stop Lead Free TMA Hose/90 Stop Lead Free TL (S45-2730) (S45-2731) Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...
  • Page 4 (Aerators are shipped loose in (124-114) bag with red service key) Ground Washer Assembly Kit ¹/₄" QC to Type B Outlet Nut, WashBar, 1³/₈-18 (S65-493) (110-256) Nut, WashBar, 1³/₈-18 Union Elbow (110-256) (269-2531) Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...
  • Page 5 Hose Clamps - 2-1/2" Dia Flexible PVC (269-678) Dryer Tube (269-2561A) Hook and Loop Strap (not shown) (269-2574) Exit Nozzle, Brushed Blower (S65-526) Dryer Motor (S39-859) Dryer Vibration Pad 4" x 10" (124-105) (not shown) Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...
  • Page 6 A14-027-BR (Brushed Brass) (P15-530) A14-027-BS (Brushed Stainless) A14-027-BZ (Brushed Bronze) Power Supply Battery Pack w/ Batteries WashBar Top Fill (P15-030) Soap Pump (Foam w/Tube) (P15-587) WashBar Top Fill Soap Pump (Liquid w/Tube) (P15-565) Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...

  • Page 7: Dimensions

    Foam Pump with Internal Press Fit Connection (269-2519) Gallon Jug (S65-528) (May be supplied by others) Hook & Loop Strap (269-2574) Soap Tank Bracket (140-1171) Dimensions (mm) 15½" (394) 13¼" (337) 12" (305) 6⁵⁄₈" (168) Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...
  • Page 8 2⁵⁄₈" (67) (127) 21" 2¾" (70) (533) 14³⁄₈" (366) 1½" (40) Top Fill Soap 26¾" (681) Option Front View 29¾" (756) 5" (127) 5" (127) 3¾" (95) 20" 30" (762) (509) 20" (508) Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...
  • Page 9 6" (153) 21" (533) 14³⁄₈" 2x Ø 1⁷⁄₁₆" (36) (366) Top Fill Soap 26¾" (681) Option Front View 29¾" (756) 5" (127) 5" (127) 3¾" (95) 20" 30" (762) (509) 20" (508) Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...
  • Page 10 (92) 11¾" (299) 3⁷⁄₈" (99) Faucet 20° 6½" (165) 3¾" (95) CSA Standard Height 20" (507) Dim A 33½" (851) 28¹⁵⁄₁₆" Dim B 29²⁹⁄₃₂" (760) (735) 7½" Dim C 13½" (536) (189) Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...
  • Page 11 (92) 12³⁄₈" (299) 4¼" (107) Faucet 20° 6½" (165) 3¾" (95) CSA Standard Height 20" (507) Dim A 33½" (851) 28¹⁵⁄₁₆" Dim B 29²⁹⁄₃₂" (760) (735) 7½" Dim C 13½" (536) (189) Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...

  • Page 12: Rough-Ins

    Measured from center of top slot on access panel wall bracket RIM HEIGHT VERTICAL HEIGHT ADJUSTMENTS FIXTURE STYLE 33½" No Adjustment Standard Height ADA, TAS, and CSA 30½" Subtract 3" Juvenile ADA and TAS Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...
  • Page 13 * If no GFCI outlet is provided, contact a licensed electrician to assure proper electrical connections in accordance with local building codes. Troubleshooting and internal maintenance must be performed by qualified service personnel. Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...
  • Page 14 #10 Wall Anchors for Top Fill Soap Pump Mount RIM HEIGHT VERTICAL HEIGHT ADJUSTMENTS FIXTURE STYLE 33½" No Adjustment Standard Height ADA, TAS, and CSA 30½" Subtract 3" Juvenile ADA and TAS Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...
  • Page 15 Measured from center of top slot on access panel wall bracket RIM HEIGHT VERTICAL HEIGHT ADJUSTMENTS FIXTURE STYLE 33½" No Adjustment Standard Height ADA, TAS, and CSA 30½" Subtract 3" Juvenile ADA and TAS Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...

  • Page 16: Bracket Mounting

    Assemble the remaining components as shown and thread the four screws through the drain adapter and into the basin inserts. Ensure the screws compress the drain adapter evenly onto the basin. Do not overtighten. Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...

  • Page 17: Basin Bracket For Access Panel Installation (Evero Matte - Mason Series Bowl Only)

    #10 Fasteners Cam lock is shown. Thumb screw fastener is similiar. Evero Matte – Mason Series Basin Bracket for Access Panel Evero Matte – Mason Series Basin Bracket for Access Panel Locations Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...

  • Page 18: Washbar Installation

    WB1 is shown for these instructions. Carefully thread the aerator into the WashBar casting using the red service key provided. Ensure no Aerator leaks after installation. (0.35 gpm or 0.5 gpm) Red Service Key Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...

  • Page 19: Top Fill Soap - Mount Tank Assembly & Control Box

    Verify the soap pump is positioned below the control box lever. Verify the shoulder of the soap pump is positioned above the control box groove. Press the soap supply tube over the soap pump connection as shown. Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...

  • Page 20: Top Fill Soap - Tank Assembly (Part 1)

    Sensor (Black) Low Soap Level Sensor (Red) Power Supply Connection Hook & Loop Strap Soap Tank Remove hook & loop strap allowing the soap tank to be removed from the mounting bracket. Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...
  • Page 21 Fill Port Screws Using sealant appropriate for quartz or solid Fill Port surface material when installing the fill port ring Screws is recommended. Fill Port Hub Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...
  • Page 22 Thread the mounting nut onto the fill port hub assembly. Hand-tighten or torque to 24 in-lb. Fill Port Hub Assembly Spacer Mounting Bracket Mounting Wall Fastener Slot Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...

  • Page 23: Bowl Mounting With Washbar (To Bracket & Wall)

    (supplied by installer). Continue to Step 10 for top fill soap option installation instructions. Continue to Step 11 for bottom fill soap option installation instructions. Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...

  • Page 24: Top Fill Soap - Tank Assembly (Part 2)

    Reconnect Soap Sensors & LED Connector LED Connector (White) Soap Overflow Sensor (Black) Low Soap Level Sensor (Red) Power Supply Connection Continue to Step 12. Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...

  • Page 25: Bottom Fill Soap - Attach Soap Motor & Soap Container Bracket

    Bracket Remove the gallon soap container by Container swinging it away from the wall and lowering it from the soap syphon tube. Store soap container for later installation. Continue to Step 12. Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...

  • Page 26: Strainer And Standard Drain Cap

    Trough Strainer Install the trough strainer and slotted drain cap as shown. Secure in place using the #10 x 1½" supplied vandal screws. Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...

  • Page 27: Dryer Motor Assembly

    Dryer Motor Foam Bumper Water Detector Wire Dryer Motor Feet RJ45 Connector Cable (unplug and discard) Dryer Motor, 120V/60Hz Power Cord to GFCI Outlet Power Cord to DC Adapter Only Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...

  • Page 28: Attach Power Line Filter

    For the TL option, only connect tempered supply. Continue to Step 16 for top fill soap option installation instructions. Continue to Step 17 for bottom fill soap option installation instructions. Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...

  • Page 29: Top Fill Soap - Soap Installation

    (located at the end of the soap supply system). Install the soap supply valve in the proper flow direction as shown on the valve. Use the extra tubing when cleaning and/or maintaining the soap system. Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...
  • Page 30 LVQD1 Installation LVQ 1-Person Soap Tubing Layout Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...
  • Page 31 Connect the power supply (Bradley supplied battery pack) to the power source for the top fill tank system. Control Box Connection Top Fill Soap Location of the Tank Assembly Power Source Connection Connection Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...
  • Page 32 If top fill soap is included, be sure to download the latest software revision in order to disable the cycle count on the WashBar. Refer to the Software Update section on page 40. Continue to Step 18. Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...

  • Page 33: Bottom Fill Soap - Soap Installation

    Top Flange Cable Tie Slot Soap Container Cable Tie Hook Bracket and Loop Strap Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...

  • Page 34: Electrical Connections

    (do not remove). Using cover, turn cartridge gently until desired water temperature is reached. Do not turn past stops as this may damage unit. Push cover down and tighten screw. Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...

  • Page 35: Access Panel

    Do not remove properly. Check for water leaks. thumb screws. Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...

  • Page 36: Master Control Box

    If any of the WashBar LEDs flash RED, check for sensor obstruction. After obstruction is removed or cleaned, the WashBar LEDs will return to blue indicating that the WashBar is in Standby/Idle Mode. • The power LED on the master control box will be GREEN indicating the unit has power. Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...
  • Page 37 Dryer, water, or soap has timed-out. This is Remove obstruction or wipe sensors with caused by a obstructed sensor. microfiber cloth to prevent from scratching sensor. System will return operational automatically once cleared. Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...
  • Page 38 • LED Off: Disables low soap counter (may not be available for all models). • No LED: WashBar with Top Fill Soap (Low soap indicator is disabled. WashBar will ignore soap counter and low soap indicator will not show LED status on WashBar.) Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...
  • Page 39 LED lights may flash and cycle different colors. To reset the WashBar, only remove hands once all LED lights are solid green. 24 Hour Water Purge If water has not been used within 24 hours, the WashBar will automatically run water for 5 seconds. This is not configurable by the user. Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...

  • Page 40: Software Update

    Cycle counts are displayed x1000 (ex. 65 = 65,000) • REV followed by the software revision • SOP followed by the soap cycle count • H2O followed by the water cycle count • AIR followed by the dryer cycle count Bradley • 215-1842 Rev. M: ECO 22-08-038 11/21/2022...

  • Page 41: Cleaning And Maintenance

    Protecting the Surface: To optimize material performance in high use areas, it is recommended to apply DryTreat Stain-Proof Original or equivalent as needed. Repair Kits: Evero repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing. Repair kits are made to order and have a shelf life of 30 days.

  • Page 42: Liquid Soap Recommendations And Dispenser Maintenance

    Soap thickness is determined by a measurement called viscosity. Soap viscosity should be between 100 cps (centipoise) and 2500 cps for all Bradley soap dispensers. Thick soaps flow slower and inhibit the “flushing” action of the valves, which allows the soap to congeal in the valve and cause clogs.
