Related Manuals for WERTHEIM Pro SoftTouch GS6200
Summary of Contents for WERTHEIM Pro SoftTouch GS6200
- Page 1 Pro SoftTouch Garment Steamer...

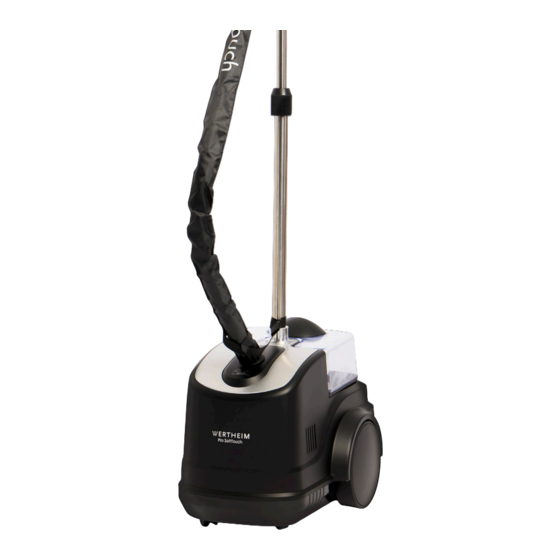

- Page 2 Features Steam head and fabric brush Cradle Garment hanger with trouser clips Insulated handle Steam hose Extension pole Sleeve protector strap Water tank On/Off Switch (not shown) 10. Dual setting switch (not shown) 11. Universal wheel for mobility 9 / 10...
-
Page 3: What's In The Box
WHAT’S IN THE BOX Extension pole Steam head and fabric brush Garment hanger Cradle with trouser clips SPECIFICATIONS Capacity: 3L Continuous runtime: Wattage: 2000W 100 minutes (steam level 1); Voltage: 220-240V~50Hz 70 minutes (steam level 2) Steam levels: 2 Net weight: 6.8kg Cord length: 1.5m... -
Page 4: Safety Instructions
INTRODUCTION Congratulations on the purchase of your new Wertheim Pro SoftTouch Garment Steamer. There are many useful features built into your garment steamer. We recommend that you carefully read this instruction manual to take the best advantage of these features. - Page 5 To unplug, grasp the plug not the power Only water should be used in this appliance. cord. Do not use extension cords or outlets Use distilled/purified water if the tap water in with inadequate current carrying capacity. your area is very hard. Do not handle or operate the appliance Damage caused by improper use of steam with wet hands and follow electrical safety...
-
Page 6: Before You Begin
BEFORE YOU BEGIN This garment steamer must be operated in accordance with these instructions. This garment steamer is not fit to be used as an industrial garment steamer and will void the manufacturer’s warranty if used inappropriately. Please read these instructions thoroughly. This will ensure you obtain full benefit from your new garment steamer. - Page 7 ASSEMBLY IMPORTANT: Always remove the power plug from the power supply before assembly. Screw the three Extension poles together in a clockwise direction. Attach the Extension pole to the body of the garment steamer by screwing the assembled pole into the garment steamer in a clockwise direction.
- Page 8 Screw the steam hose into the garment steamer in a clockwise direction. Secure the sleeve protector strap onto the pole. Screw the steam head onto the steam hose in a clockwise direction tightly. WARNING! Allow the steam head to cool down completely before attaching the fabric brush.
- Page 9 INSTRUCTIONS FOR USE WARNING! Do not operate the garment steamer without water in the water tank. IMPORTANT! The machine should be switched off before fitting or removing accessories. WARNING! Accessories become hot during use. Allow accessories to cool down before handling them. Fill water tank Remove the water tank from the garment steamer as shown.
- Page 10 High & low steam settings Your garment steamer is equipped with two steam settings: high and low. To change the steam setting simply set the dual setting switch to the corresponding position, as shown. The dual setting switch includes two steam settings. Low steam mode provides a runtime of up to 100 minutes.
-
Page 11: Maintenance
MAINTENANCE WARNING! Always unplug the power cord after use. Never operate the garment steamer without water in the water tank. After use Rest the steam head on the cradle, ensuring it is securely in place, and turn off the garment steamer. - Page 12 Turn the On/Off switch to the on position. Run the garment steamer until the water tank is empty. Always perform this process in a well- ventilated area. NOTE: Do not leave the garment steamer unattended during this process. Unplug the garment steamer from the power supply and allow it to rest for 60 minutes, then remove the drainage plug located at the bottom of the garment steamer.
-
Page 13: Spare Parts
SPARE PARTS Steam hose assembly 31221037 Brush and steam head 33157295 Complete water tank 33157299 Water cap only 33157300 Complete extension pole set with cradle 33157301 Garment hanger 33157344... -
Page 14: Troubleshooting
TROUBLESHOOTING CAUTION! Exposure to hot steam can cause scalding. Please allow the garment steamer to cool down completely before checking the hose connection to the machine and to the garment head. CAUTION! Surface may be hot. Avoid contact. The garment steamer contains electrical connections, with live parts within. - Page 15 Your garment steamer has a one year Electrical Home-Aids Pty Ltd is unable to parts and labour warranty against product accept responsibility under this warranty defects and failures when the product is for any repair work not carried out by an used in accordance with the terms and authorised service agent or from the use of conditions of this warranty statement.
- Page 16 Electrical Home-Aids Pty. Limited ABN: 62 007 539 577 Brandon Office Park, Building 3, First Floor, 530-540 Springvale Road, Glen Waverley, Victoria, 3150 customerservice@godfreys.com.au Australia: 1800 815 270 New Zealand: 0800 282 288 V1 11/2021...
