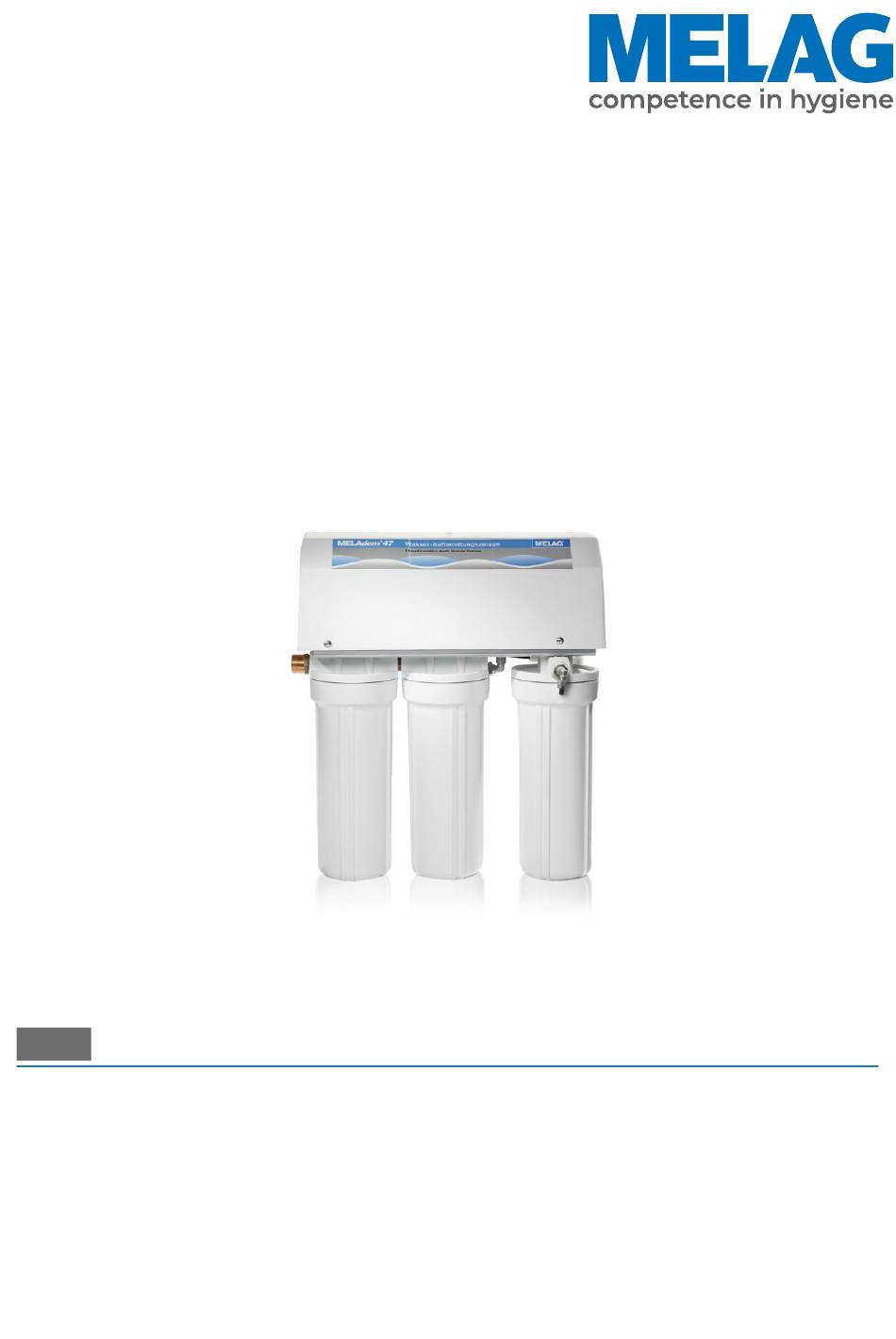

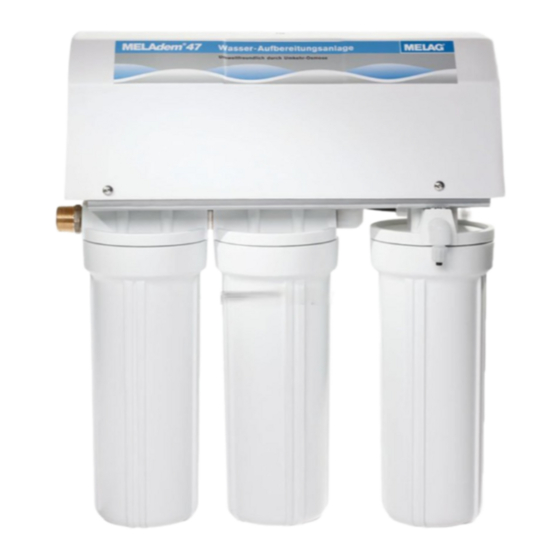

User Manual
MELAdem
Reverse osmosis unit
EN
Dear customer,
We thank you for your confidence demonstrated by the purchase of this MELAG product. As an owner-run and operated
family concern founded in 1951, we have a long history of successful specialization in hygiene products for practice-
based use. Our focus on innovation, quality and the highest standards of operational reliability has established MELAG
as the world's leading manufacturer in the instrument reprocessing and hygiene field.
You, our customer are justified in your demand for the best products, quality and reliability. Providing
hygiene"
and
"Quality – made in
agement system is subject to close monitoring: one instrument to this end is our annual multi-day audit conducted in ac-
cordance with EN ISO 13485. This guarantees that all MELAG products are manufactured and tested in accordance with
strict quality criteria.
The MELAG management and team.
®
47
Germany", we guarantee that these demands will be met. Our certified quality man-
"competence in

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MELAdem 47 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MELAG MELAdem 47

Summary of Contents for MELAG MELAdem 47

  • Page 1 Reverse osmosis unit Dear customer, We thank you for your confidence demonstrated by the purchase of this MELAG product. As an owner-run and operated family concern founded in 1951, we have a long history of successful specialization in hygiene products for practice- based use.

  • Page 3: Table Of Contents

    Contents Contents 1 General guidelines ................................ 4 Symbols used.................................. 4 Formatting rules ................................... 4 Disposal .................................... 4 2 Safety..................................... 5 3 Description of the device.............................. 6 Intended use .................................. 6 Mode of functioning................................ 6 Scope of delivery.................................. 7 View of the device ................................ 7 4 Setup and installation ................................ 8 Installation location................................ 8 Cold water connection................................ 8 Assembly.................................... 9 Connecting the device................................ 13...

  • Page 4: General Guidelines

    Reference to another text section within this document. Disposal MELAG devices are synonymous with high quality and a long life-span. When you eventually need to de- commission your MELAG device, the required disposal of the device can take place with MELAG in Berlin.

  • Page 5: Safety

    Setup, installation and commissioning Check the device after unpacking for any damage suffered during transport. We recommend that the device only be setup, installed and commissioned by MELAG authorised per- sons. Install and operate the device in a frost-free environment.

  • Page 6: Description Of The Device

    The water treatment unit MELAdem 47 is not a medical device within the meaning of European Regulation 2017/745 on medical devices.

  • Page 7: Scope Of Delivery

    3 Description of the device Scope of delivery Please check the scope of delivery before setting up and connecting the device. Standard scope of delivery ▪ MELAdem 47 ▪ User manual ▪ Record of installation and setup ▪ Warranty certificate ▪...

  • Page 8: Setup And Installation

    The yield (capacity) is an approximate guide value that depends on other factors in addition to the water hardness. An upstream softening system with regeneration based on common salt can lead to a reduction in the capacity of the MELAdem 47, regardless of the set initial water hardness.

  • Page 9: Assembly

    Close the water tap at night, when it is out of use for several weeks and during repair or maintenance work. PLEASE NOTE To prevent water damage, MELAG recommends the use of a leakage water detector e.g. the MELAG water stop. To ensure a standard-compliant connection of the water treatment unit with backflow preventer and a pipe...
  • Page 10 4 Setup and installation Installing the removal valve When positioning the removal valve, make sure that the normal water tap remains easily accessible. Removal valve Operating lever Foot Small rubber disc, black Metal disc, white Rubber disc, black Tabletop Bracket disc Toothed lock washer Reinforcing sleeve Crimp...
  • Page 11 4 Setup and installation Attach the bracket disc (pos. 8), the toothed lock washer (pos. 9) and the nut (pos. 10) to the base of the removal valve. Make sure that the removal valve does not twist when fastening the nut. After fastening the nut, align the removal valve again with a spanner if necessary.
  • Page 12 4 Setup and installation Installing the water discharge Install the water discharge using the connection set (included in the scope of delivery) according to the following illustration. Install the water discharge preferably directly in front of the sink siphon. Use the enclosed copper seal or a Teflon tape (not included in the scope of delivery) to seal the parts. Position Description Art.

  • Page 13: Connecting The Device

    Connecting the device The connection of the MELAdem 47 depends on the device type of the steam sterilizer. The device can be connected directly to the steam sterilizer. PLEASE NOTE: Stand-alone devices collect the used feed water (wastewater) in the wastewater side of the storage tank.
  • Page 14 Double hose fitting for siphon with backflow flaps ME37400 ME01047 Wastewater adapter (G1/4” internal thread) ME56930 ME01047 Pressure tank MELAdem 47 (with shut-off valve and hose) ME57065 ME01047 MELAdem 47 reverse osmosis unit (without accessories) ME56740 ME01047 Water inflow hose (2.5 m) (inlet hose MELAdem 47)
  • Page 15 Filter for MELAdem ME48240 ME01047 PUR hose, black, 6 mm, length: 10 m (inlet hose feed water) ME28820 ME01047 Pressure tank MELAdem 47 (with shut-off valve and hose) ME57065 ME01047 Wastewater adapter (G1/4” internal thread) ME56930 ME01047 MELAdem 47 reverse osmosis unit (without accessories)
  • Page 16 To connect the MELAdem 47 to a Vacuklav 41 B+ Evolution, 43 B+ Evolution, 23 B+ or 31 B+, install the feed water inlet connection for a hose diameter of 6x1 mm (see technical manual of the steam sterilizer). MELAG recommends mounting the safety combination according to the following installation examples for compliant operation according to EN 1717.
  • Page 17 Filter for MELAdem ME48240 ME01047 PUR hose, black, 6 mm, length: 10 m (inlet hose feed water) ME28820 ME01047 Pressure tank MELAdem 47 (with shut-off valve and hose) ME57065 ME01047 Water inflow hose (2.5 m) (inlet hose MELAdem 47) ME37220 ME01047...
  • Page 18 4 Setup and installation Position Description Art. no. contained in Double chamber siphon (optional) ME26635 Wall outlet NW 40** Mains connection** Rear wall panel* ME66790 present on the device side present on the building side...

  • Page 19: Commissioning

    Do not operate the device for a long period unsupervised, e.g. over night. This could void the insurance cover for the building. MELAG accepts no liability what so ever for any damage resulting from unsupervised operation.

  • Page 20: Maintenance

    6 Maintenance 6 Maintenance Maintenance intervals Interval Measure Daily Control the permeate with a conductivity meter or using a steam sterilizer with inbuilt conductivity measurement. Every 12 months ▪ Maintain the water treatment unit as part of steam sterilizer maintenance. ▪...

  • Page 21: Removing And Attaching The Filter Containers

    6 Maintenance Removing and attaching the filter containers Removing the container Guide the container key (pos. a) from bottom to top over the filter container (pos. b). Turn the container key to the left to open the filter container. Remove the container key as soon as the filter container can be turned easily.

  • Page 22: Change The Fine Filter

    6 Maintenance Change the fine filter Replace the cartridge of the mechanical fine filter (pre-filter) once a year. If there is a high pressure loss, filling the pressure tank takes more time. This can be caused by a high turbidity content in the cold water. In this case, replace the cartridge of the fine filter as required: Close the cold water inflow and the pressure tank shut-off valve.

  • Page 23: Changing The Activated Carbon Filter

    6 Maintenance Changing the activated carbon filter Change the cartridge of the activated carbon filter once a year or when changing the fine filter: Close the cold water inflow and the pressure tank shut-off valve. Take a little water from the removal valve to depressurise the unit.

  • Page 24: Replacing The Mixed-Bed Resin Cartridge

    6 Maintenance Replacing the mixed-bed resin cartridge When the mixed-bed resin is exhausted (poor permeate quality), change the mixed-bed resin cartridge: Close the cold water inflow and the pressure tank shut-off valve. Take a little water from the removal valve to depressurise the unit.

  • Page 25: Technical Data

    20-30 µS/cm at 600 µS/cm cold water | < 1 µS/cm at (permeate) 600 µS/cm cold water and non-exhausted ion exchanger Production 20-25 % Water pressure that is too low can be increased with the optionally available MELAG pressure increase pump.

  • Page 26: Accessories And Spare Parts

    ME37450 Activated carbon filter ME37460 Container for mixed-bed resin ME37440 Grease for seals/O-rings ME24371 Pressure increase pump for MELAdem 47 ME22500 PUR hose, black, 6 mm, length: 10 m ME28820 Spare parts Filter housing wrench for MELAdem ME61050 Connecting sets for...

  • Page 27: Glossary

    Glossary Glossary Conductivity is the ability of a conductive chemical substance or mixture of substances to conduct or transfer ener- gy or other substances or particles in space. Demineralised water Water without the minerals usually found in normal spring or tap water; is produced through ion ex- change of normal tap water.
  • Page 28 MELAG Medizintechnik GmbH & Co. KG Geneststraße 6-10 10829 Berlin Germany Email: info@melag.com Web: www.melag.com Original instructions Responsible for content: MELAG Medizintechnik GmbH & Co. KG We reserve the right to technical alterations Your stockist...
