User Manual
Pressure increase pump
for MELAdem 47
EN
Dear customer,
We thank you for your confidence demonstrated by the purchase of this MELAG product. As an owner-run and operated
family concern founded in 1951, we have a long history of successful specialization in hygiene products for practice-
based use. Our focus on innovation, quality and the highest standards of operational reliability has established MELAG
as the world's leading manufacturer in the instrument reprocessing and hygiene field.
You, our customer are justified in your demand for the best products, quality and reliability. Providing
hygiene"
and
"Quality – made in
agement system is subject to close monitoring: one instrument to this end is our annual multi-day audit conducted in ac-
cordance with EN ISO 13485. This guarantees that all MELAG products are manufactured and tested in accordance with
strict quality criteria.
The MELAG management and team.
This device is to be maintained exclusively by a qualified service technician trained by MELAG and working in accord-
ance with the valid directives.
Germany", we guarantee that these demands will be met. Our certified quality man-
"competence in

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MELAdem 47 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MELAG MELAdem 47

  • Page 1 MELAdem 47 Dear customer, We thank you for your confidence demonstrated by the purchase of this MELAG product. As an owner-run and operated family concern founded in 1951, we have a long history of successful specialization in hygiene products for practice- based use.
  • Page 3: Table Of Contents

    Contents Contents 1 General guidelines ................................ 4 Symbols used.................................. 4 Disposal .................................... 4 2 Safety..................................... 5 3 Description of the device.............................. 6 Intended use .................................. 6 Scope of delivery.................................. 6 Pressure increase pump .............................. 6 Symbols on the device ................................. 7 4 Installation .................................... 8 5 Operation .................................... 11 6 Maintenance.................................. 12 7 Technical data .................................. 13 8 Accessories and Spare Parts ............................ 14 Glossary .................................... 15...
  • Page 4: General Guidelines

    Please store this user manual carefully and in close proximity to your device. It represents a component of the product. Should the manual no longer be legible, is damaged or has been lost, you can download a new copy from MELAG down- load centre at www.melag.com.
  • Page 5: Safety

    Check the device after unpacking for any damage suffered during transport. We recommend that the device only be set-up, installed and commissioned by MELAG authorized persons. Using the optional electronic leak detector (water stop) minimizes the risk of water damage.
  • Page 6: Description Of The Device

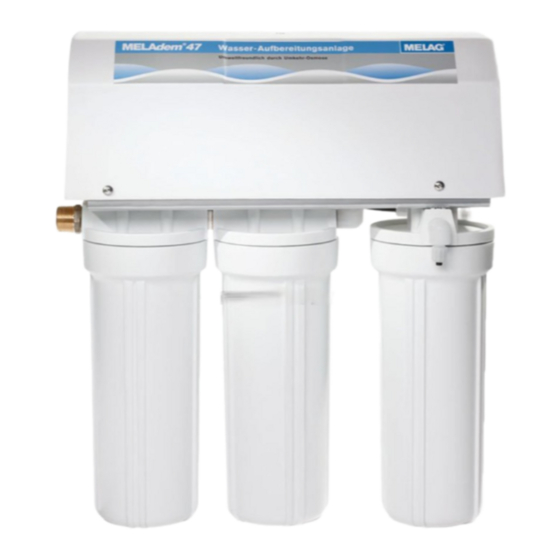

    3 Description of the device 3 Description of the device Intended use The pressure increase pump for MELAdem 47 enables the increase of the inlet pressure of the water treatment unit MELAdem 47. The MELAdem 47 can thus produce higher quantities of demineralized water (DI water) at low line pressure on the build- ing side.
  • Page 7: Symbols On The Device

    3 Description of the device Symbols on the device Manufacturer of the product Date of manufacture of the product Product serial number from the manufacturer Article number of the product Electrical connection of the device: AC current The user manual includes important safety information. Failure to comply with these instructions can result in injury and material damage.
  • Page 8: Installation

    4 Installation 4 Installation Tools required: Allen key (4 mm), open-end wrench (SW10, SW12, SW19, SW27), Phillips screwdriver (PH2), water- pump pliers, hose cutter The following must be fulfilled or present: ü The line pressure is at 1-6 bar. ü The cold water inflow and the shut-off valve of the pressure tank of the water treatment unit are closed. ü...
  • Page 9 4 Installation Remove the two screws on the filter housing of the fine filter. Lead the PUR hose of medium length through the recess to the pump. Attach the pressure increase pump to the water treatment unit using the two screws that were previously loosened. Connect the PUR hose of medium length to the output side of the pressure increase pump.
  • Page 10 Attach the long PUR hose to the other end of the dirt filter. PLEASE NOTE The installation of a leakage water detector with cut-off valve (e.g. the water stop from MELAG) is recommended. Connect the other end of the long PUR hose to the MELAdem direct connection on the water tap or water stop.
  • Page 11: Operation

    Perform a daily visual and functional check of the pressure increase pump. Never operate the device unattended (e.g. overnight). Unsupervised operation of the device can result in damage to the device or your facility and is performed at your own risk. In such a case, MELAG does not accept any liability.
  • Page 12: Maintenance

    6 Maintenance 6 Maintenance Interval Measure Device component every 6 years replace all PUR hoses PUR hoses every 12 months clean filter insert of the dirt filter dirt filter NOTICE In order to replace the PUR hoses of the MELAdem 47, depressurise the water treatment unit and disconnect the power plug.
  • Page 13: Technical Data

    7 Technical data 7 Technical data Device type Pressure increase pump Device dimensions Dimensions (H x W x D) 32 x 16 x 18 cm Empty weight 4.6 kg Electrical connection Power supply 230 V, 50 Hz Electrical power 80 W Max. power consumption 2.2 A Max. delivery capacity (without counter- 2.1 l/min pressure) Ambient conditions...
  • Page 14: Accessories And Spare Parts

    8 Accessories and Spare Parts 8 Accessories and spare parts You can obtain the specified articles and an overview of further accessories from your stockist. Category Article Art. no. Spare parts Low pressure switch for pressure increase pump ME80045 Power supply unit for pressure increase pump ME22467 Common mode choke for pressure increase pump ME22637...
  • Page 15: Glossary

    The term “authorised technician” refers to an employee of a customer service provider or stockist who has been trained and authorised by MELAG to perform maintenance and installation work on MELAG devices. Only they may carry out this work. Conductivity...
  • Page 16 Adresse / Address: Geneststraße 6-10, 10829 Berlin, Deutschland / Germany Produkt / Product: Druckerhöhungspumpe / Booster pump Produktname / Product name: Druckerhöhungspumpe für MELAdem 47 / Booster pump for MELAdem 47 Angewandte Hauptnormen / EN ISO 13485 Applied main standards: EN 61326-1 EN IEC 63000 Hiermit erklären wir in alleiniger Verantwortung, dass das oben aufgeführte Produkt den Anforderungen der...
  • Page 18 MELAG Medizintechnik GmbH & Co. KG Geneststraße 6-10 10829 Berlin Germany Email: info@melag.com Web: www.melag.com Original instructions Responsible for content: MELAG Medizintechnik GmbH & Co. KG We reserve the right to technical alterations Your stockist...
