Minerva 3378 Assembly Instructions

Double-sided icon styling station

Assembly Instructions

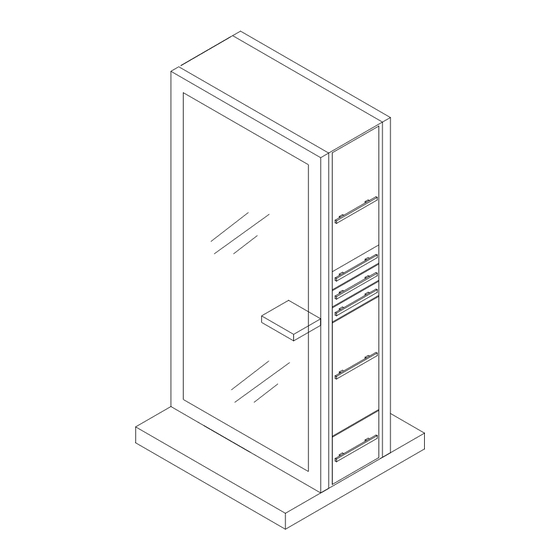

Double-sided Icon Styling Station

Model #3378

PARTS LIST**

Part

Qty.

Description

Short Allen bolts

Medium Allen bolts

Long Allen bolts

Short bolt anchors

Handle screws

Appliance rings

**Open all drawers and boxes to check

for parts before beginning assembly.

Large Allen wrench (included)

Small Allen wrench (Included)

Phillips-head screwdriver (Not included)

Components (Label - Description)

1 - Base

2 - Bottom cabinet section

Sketch

Washers

Handles

3 - Top cabinet section

4 - Mirror panel

Table of Contents

Do you have a question about the 3378 and is the answer not in the manual?

Page 1 Tools required: Large Allen wrench (included) Small Allen wrench (Included) Phillips-head screwdriver (Not included) Components (Label - Description) Double-sided Icon Styling Station 3 - Top cabinet section 1 - Base Model #3378 4 - Mirror panel 2 - Bottom cabinet section...
Page 2 1 - Mounting bottom cabinet section 3 - Mounting the top cabinet section 1) Remove all the drawers from the top cabinet section (3) by pressing the black release tabs in the 1) Remove all the drawers from the bottom cabinet glides (one up, one down) and pulling.
Page 3 4 - Mounting the mirror panels 5 - Replacing the drawers 1) For shipping, the drawer handles (I) are attached to the insides of the drawer faces. Using a 1) Rotate the front mirror panel (4) such that the holes in the back of the panel are aligned with Phillips-head screwdriver, remove the 2 screws (J) in each and reattach the handles on the the holes in the front faces of the bottom and top cabinet sections (2, 3).
