Assembly Instructions
Single-sided Genesis Styling Station
Model #3393

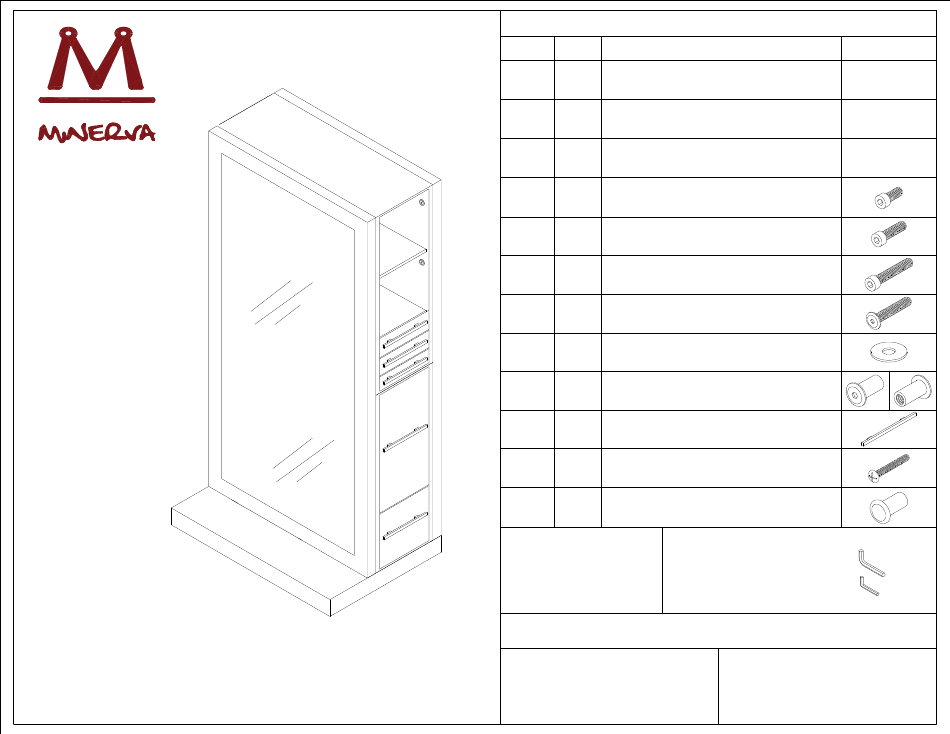

PARTS LIST**

Part
Qty.
Description
D
4
Short Allen bolts
E
4
Medium Allen bolts
F
Long Allen bolts
16
G
Flat-top Allen bolts
8
H
24
I
4
Short bolt anchors
J
10
K
20
Handle screws
L
Appliance rings
5
**Open all drawers and
boxes to check for
parts before
beginning assembly.
Components (Label - Description)
1 - Base
2 - Bottom cabinet section
3 - Top cabinet section

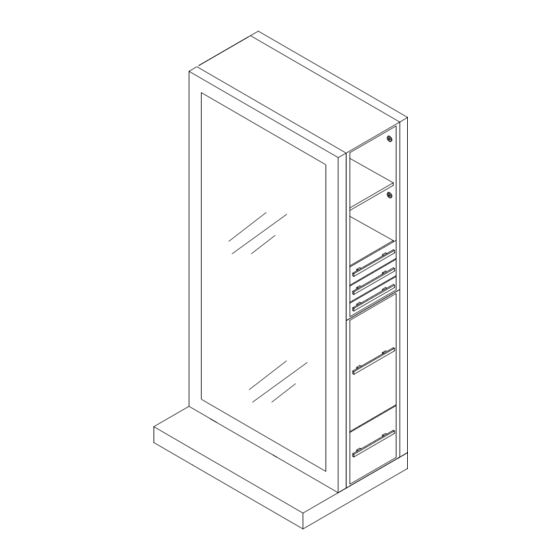

Sketch
Washers
Handles

Tools required:

Large Allen wrench (included)
Small Allen wrench (Included)
Phillips-head screwdriver (Not included)
4 - Mirror panel
5 - Rear panel

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3393 and is the answer not in the manual?

Questions and answers

Summary of Contents for Minerva 3393

  • Page 1 Small Allen wrench (Included) beginning assembly. Phillips-head screwdriver (Not included) Components (Label - Description) Single-sided Genesis Styling Station 1 - Base 4 - Mirror panel Model #3393 2 - Bottom cabinet section 5 - Rear panel 3 - Top cabinet section...
  • Page 2 2 - Mounting the top cabinet section 1) Remove all the drawers from the top cabinet section (3) by pressing the black release tabs in the glides (one up, one down) and pulling. Lay drawers out in proper order for replacement. 2) Set the top cabinet section (3) on top of the bottom cabinet section (2), aligning the 4 small holes in each.
  • Page 3 4 - Mounting the mirror and back panels 5 - Replacing the drawers 1) For shipping, the drawer handles (J) are attached to the insides of the drawer faces. Using a 1) Rotate the mirror panel (4) such that the holes in the back of the panel are aligned with the holes Phillips-head screwdriver, remove the 2 screws (K) in each and reattach the handles on the in the front faces of the bottom and top cabinet sections (2, 3).
