Minerva 3108 Assembly Instructions

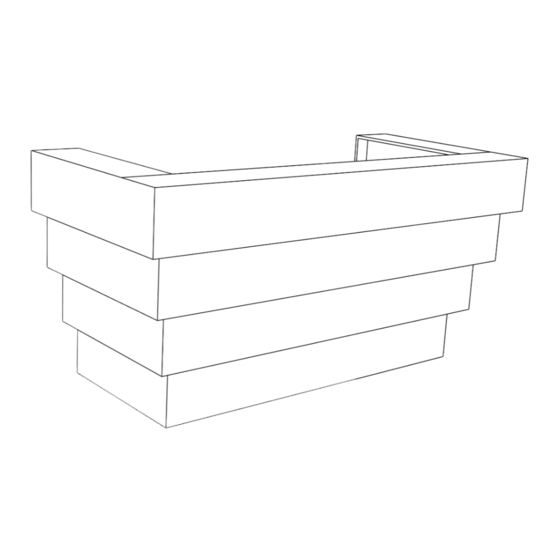

#3108 Elevate Reception Desk
Assembly Instructions

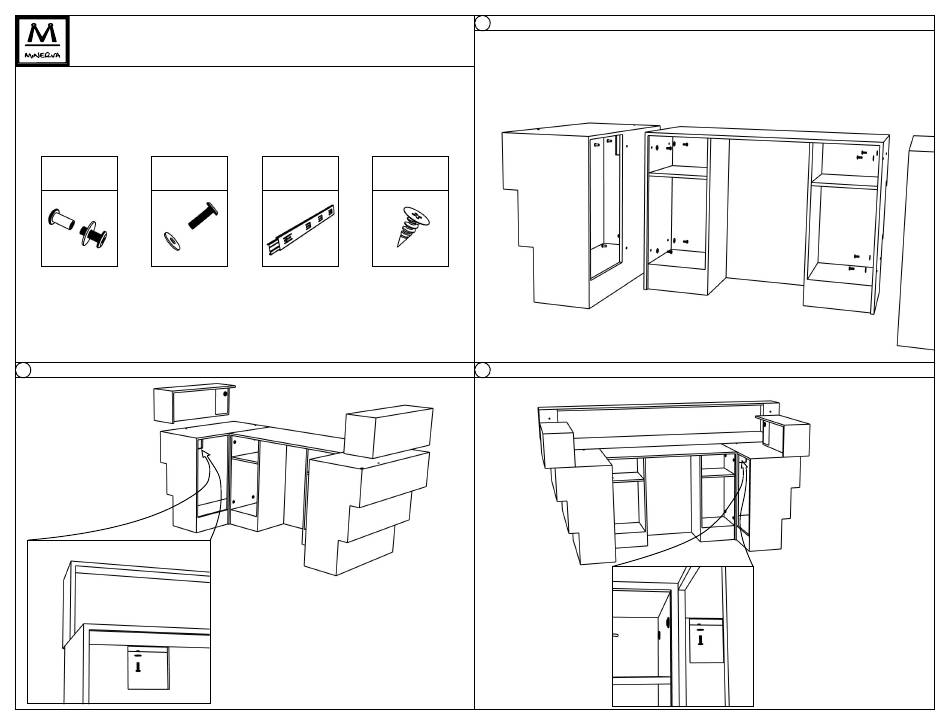

Parts List: Six desk sections, three drawers, and the hardware below:
double single
sided bolts X8 long bolts
w/ washers w/ washers
*Open all boxes to check for parts
before beginning assembly.
2
drawer small
X8 guide X6 phillips
hardware screws
Place the desktop side pieces
on the desk with the holes lined up.
Using one of the long bolt and
washer per side, go in through the
opening shown and screw up the
the bottom to secure the section.
1
Line up the desk sides to the middle. Use four double-sided
bolt and washer sets to connect the sides through the holes
shown here.
X~100
3
Place the desktop front
piece on the desk. Using
one of the long bolt and
washer per side, go in
through the opening
shown and screw up
through the bottom to
secure the section.
