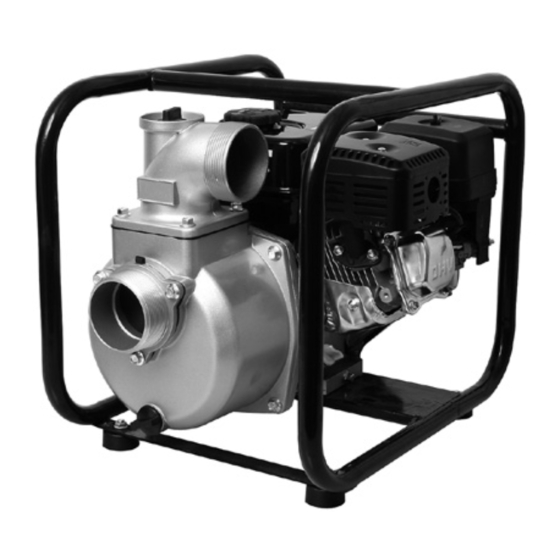

Pentair HYPRO 1542A-65SP Series Installation, Operation, Repair And Parts Manual

Pentair HYPRO 1542A-65SP Series Installation, Operation, Repair And Parts Manual

Gas engine-driven, self-priming, sae mount, centrifugal pumps

Advertisement

Quick Links

®

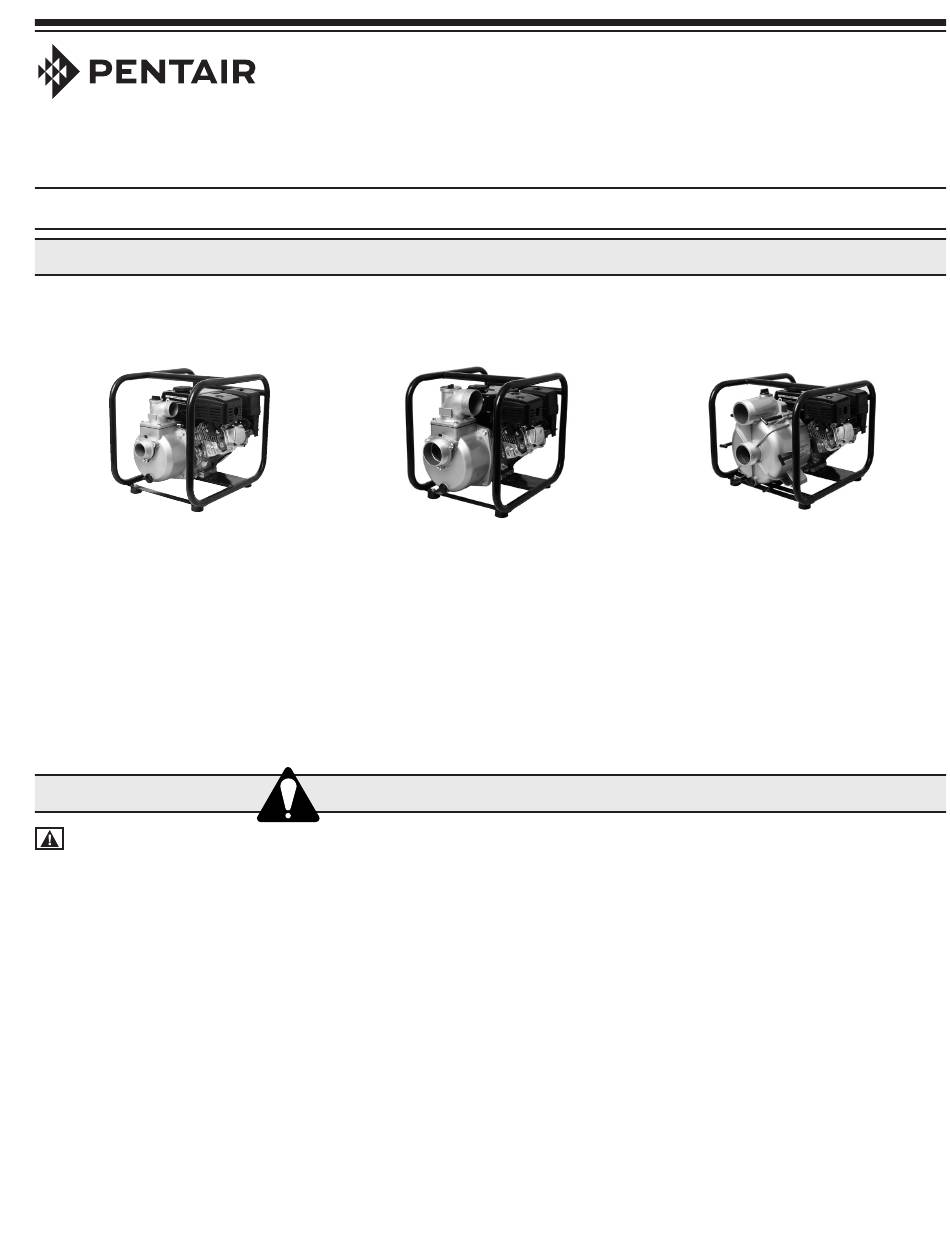

HYPRO
Installation, Operation, Repair and Parts Manual
Hypro Self-Priming Centrifugal Pumps handle big, high-
capacity, liquid transfer jobs with ease. Use them for
transferring water, liquid fertilizers, and other chemicals
compatible with pump materials. Make short work of other
1542A-65SP, 1542A-160HSP
1542A-550BSP
Close-Coupled, Gas Engine-Driven
Self-Priming Centrifugal Pump
Max. Flow Rate: ........................... 147 GPM
Max. Pressure: .................................50 PSI
Max. Total Head ............................. 115 FT.
Max. Suction Lift: .............................. 28 FT.
Ports: ........................................ 2" NPT Inlet
Engine.........PowerPro
6.5 HP or Honda GX160
Briggs & Stratton 550
California Proposition 65 Warning -- This product and related accessories contain chemicals known to the State of
California to cause cancer, birth defects or other reproductive harm.
WARNING: Do not pump flammable or explosive fluids such
as gasoline, fuel oil, kerosene, etc. Do not use in explosive
atmospheres. The pump should be used only with liquids
that are compatible with the pump component materials.
Failure to follow this warning can result in personal injury
and/or property damage and will void the product warranty.
1.
DO NOT EXCEED recommended speed, pressure and
temperature (140˚ F) for pump and equipment being used.
2.
BEFORE SERVICING, drain all liquids from the system and
flush. Remove the spark plug wire from the spark plug before
servicing the pump or engine.
3.
Secure the discharge lines before starting the pump. An
unsecured line may whip, causing personal injury and/or
property damage.
4.
Check hose for weak or worn condition before each use.
Make certain that all connections are tight and secure.
Series 1542A-65SP, 1543A-65SP & 1543A-65TSP
1542A-160HSP, 1543A-160HSP & 1543A-160HTSP
1543A-65SP, 1543A-160HSP
Close-Coupled, Gas Engine-Driven
Self-Priming Centrifugal Pump
Max. Flow Rate: ........................... 259 GPM
Max. Pressure: .................................43 PSI
Max. Total Head ............................. 100 FT.
Max. Suction Lift: .............................. 28 FT.
Ports: ........................................ 3" NPT Inlet
2" NPT Outlet
Engine.........PowerPro

General Safety Information

Gas Engine-Driven, Self-Priming, SAE Mount,

Description

farm jobs: filling nurse tanks, watering seedbeds, and
transferring liquids. This self-priming model makes it ideal
for de-watering applications.
3" NPT Outlet
6.5 HP or Honda GX160
5.
Periodically inspect the pump and the system components.
Perform routine maintenance as required (see Maintenance
section).
6.
Protect pump from freezing conditions by draining liquid and
pumping a permanent-type automobile antifreeze containing
a rust inhibitor through the system, coating the pump interior.
A 50% mixture with water is recommended.
7.
Do not operate a gasoline engine in an enclosed area. Be
sure the area is well ventilated.
WARNING: Gasoline is a highly combustible fuel. The
improper use, handling, or storage of gasoline can be
dangerous. Never touch or fill a hot engine.
8.
Use only pipe, hose and fittings rated for the maximum psi
rating of the pump.
9.
Do not use these pumps for pumping water or other liquids
for human or animal consumption.
Centrifugal Pumps
1543A-65TSP, 1543A-160HTSP
Close-Coupled, Gas Engine-Driven
Self-Priming Centrifugal Trash Pump
Max. Flow Rate: ........................... 272 GPM
Max. Pressure: .......... ......................50 PSI
Max. Total Head ............................. 115 FT.
Max. Suction Lift: .............................. 28 FT.
Ports: ........................................ 3" NPT Inlet
Solids Handling Capability (max. dia.):1-1/8" solids
Engine.........PowerPro
6.5 HP or Honda GX160
Form L-1533
Rev. D
3" NPT Outlet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYPRO 1542A-65SP Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pentair HYPRO 1542A-65SP Series

  • Page 1 Series 1542A-65SP, 1543A-65SP & 1543A-65TSP 1542A-160HSP, 1543A-160HSP & 1543A-160HTSP Gas Engine-Driven, Self-Priming, SAE Mount, ® HYPRO Centrifugal Pumps Form L-1533 Rev. D Installation, Operation, Repair and Parts Manual Description Hypro Self-Priming Centrifugal Pumps handle big, high- farm jobs: filling nurse tanks, watering seedbeds, and capacity, liquid transfer jobs with ease.
  • Page 2 Hazardous Substance Alert Please Note: It is illegal to ship or transport any 2. Before returning unit for repair, drain out all liquids and hazardous chemicals without United States flush unit with neutralizing liquid. Then, drain the pump. Environmental Protection Agency Licensing. Attach a tag or include a written notice certifying that this has been done.
  • Page 3 Operation and Maintenance (Operation and Maintenance Continued) that will chemically neutralize the liquid pumped. Mix Stopping the Pump according to the manufacturer’s directions. This will 1. Stop pump for a short time: dissolve most residues remaining in the pump, leaving Run engine throttled all the way down (fully to the right).
  • Page 4 Repair Instructions (Repair Instructions - continued 6. It is now necessary to check the clearance between Clean-up of Pump Housing the impeller and volute. As shown in the sketch below, If necessary, clean the pump casing, volute, and casing cover measure the inside depth of the volute case (distance using a solvent to remove debris and corrosion particles.
  • Page 5 Troubleshooting Symptom Probable Cause(s) Corrective Action(s) No discharge Pump not priming Discharge line must be open for priming to occur. If valve is installed, check that it is open. Fill priming chamber with water. Increase engine speed. Low discharge Air leaks in suction line Check inlet fittings for leaks.
  • Page 6 Models 1542A-65SP, 1542A-160HSP, 1543A-65SP, 1543A-160HSP and 1542A-550BSP 11 12 IMPORTANT: When ordering parts, give PART 2 3 4 5 6 7 NUMBER and PART DESCRIPTION. Reference Numbers are used ONLY to point out parts in the drawing and are NOT to be used as ordering numbers. Standard Seal Kit No.
  • Page 7 Model 1543A-65TSP, 1543A-160HTSP IMPORTANT: When ordering parts, give PART NUMBER and PART DESCRIPTION. Reference Numbers are used ONLY to point out parts in the drawing and are NOT to be used as ordering numbers. Standard Seal Kit No. 3430-0801 Consists of (2) Ref. 2 O-ring, (1) Ref. 6 Check Valve, (1) Ref.
  • Page 8 Returns are to be shipped with the RMA number clearly marked on the outside of the package. Hypro shall not be liable for freight damage incurred during shipping. Please package all returns carefully. All products returned for warranty work should be sent shipping charges prepaid to: HYPRO / PENTAIR Attention: Service Department 375 Fifth Avenue NW...

This manual is also suitable for:

Hypro 1543a-65sp seriesHypro 1543a-65tsp seriesHypro 1542a-160hsp seriesHypro 1543a-160hsp seriesHypro 1543a-160htsp series
