Installation, Operation, Repair and Parts Manual
California Proposition 65 Warning -- This product
and related accessories contain chemicals known to the
State of California to cause cancer, birth defects or other
reproductive harm.
Hypro Self-Priming Centrifugal Pumps handle big, high-
capacity, liquid transfer jobs with ease. Use them for
Close-Coupled, Gas Engine-Driven
Self-Priming Centrifugal Pump
Max Flow Rate: ............................. 145 gpm
Max. Pressure: ..................................50 psi
Max. Total Head ............................... 115 ft.
Max. Suction Lift: ................................ 28 ft.
Ports: ........................................ 2" NPT Inlet
Engine ...................................Honda GX120
WARNING: Do not pump flammable or explosive fluids
such as gasoline, fuel oil, kerosene, etc. Do not use
in explosive atmospheres. The pump should be used
only with liquids that are compatible with the pump
component materials. Failure to follow this warning
can result in personal injury and/or property damage
and will void the product warranty.
1. DO NOT EXCEED recommended speed, pressure and
temperature (140˚ F) for pump and equipment being
used.
2. BEFORE SERVICING, drain all liquids from the system
and flush. Remove the spark plug wire from the spark
plug before servicing the pump or engine.
3. Secure the discharge lines before starting the pump. An
unsecured line may whip, causing personal injury and/
or property damage.
4. Check hose for weak or worn condition before each
use. Make certain that all connections are tight and
secure.

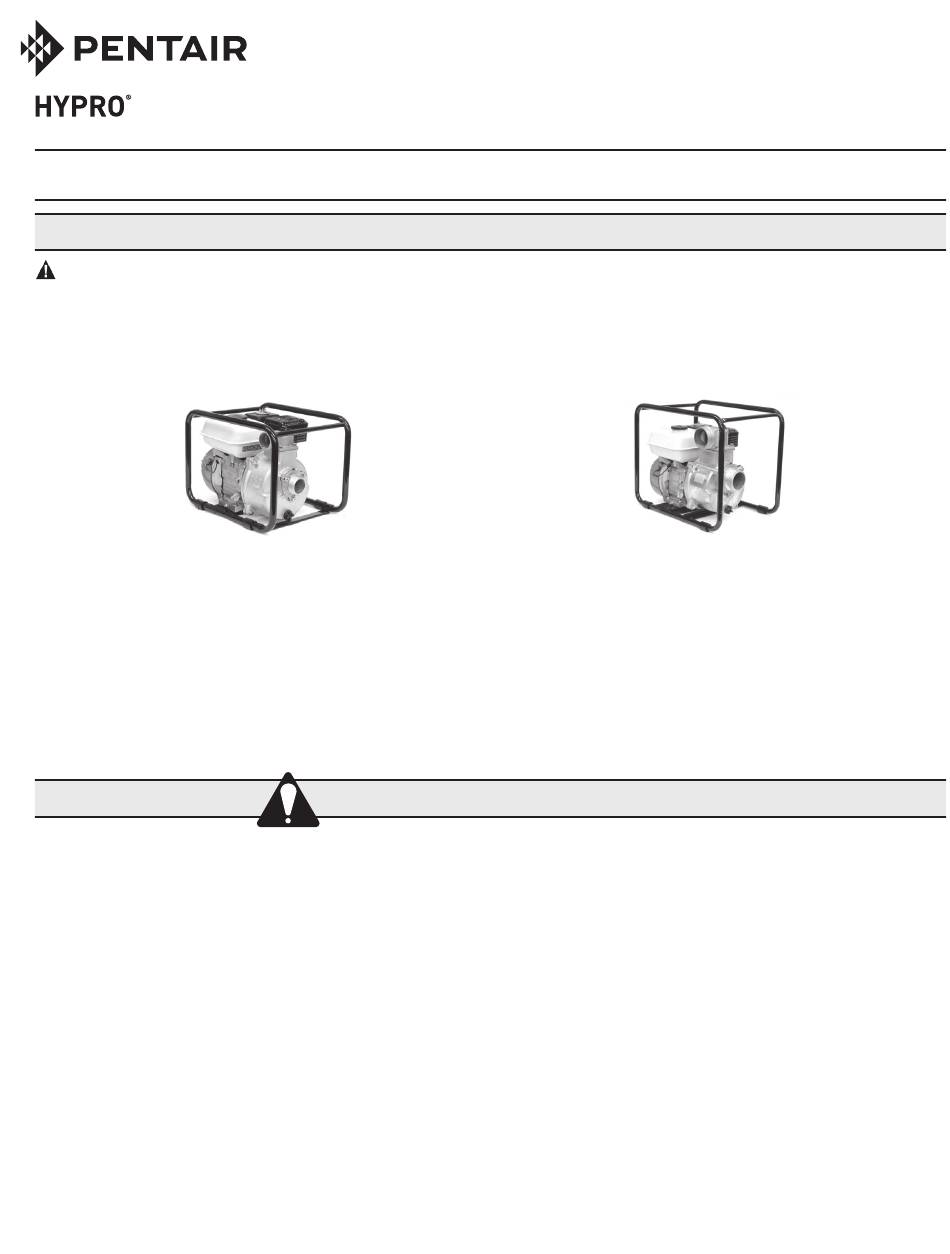

Series 1572-SPX & 1573-SPX
Gas Engine-Driven, Self-Priming
Centrifugal Pump
1572-SPX
2" NPT Outlet
General Safety Information
Description
transferring water, liquid fertilizers, and other chemicals
compatible with pump materials. Make short work of other
farm jobs: filling nurse tanks, watering seedbeds, and
transferring liquids. This self-priming model makes it ideal
for de-watering applications.
Close-Coupled, Gas Engine-Driven
Self-Priming Centrifugal Pump
Max Flow Rate: .......................... 280 gpm
Max. Pressure: ...............................50 psi
Max. Total Head ............................ 115 ft.
Max Suction Lift: .............................. 28 ft.
Ports: ..................................... 3" NPT Inlet
Engine ............................... Honda GX160
5. Periodically inspect the pump and the system
components. Perform routine maintenance as required
(see Maintenance section).
6. Protect pump from freezing conditions by draining liquid
and pumping a permanent-type automobile antifreeze
containing a rust inhibitor through the system, coating
the pump interior. A 50% mixture with water is
recommended.
7. Do not operate a gasoline engine in an enclosed area.
Be sure the area is well ventilated.
WARNING: Gasoline is a highly combustible fuel. The
improper use, handling, or storage of gasoline can be
dangerous. Never touch or fill a hot engine.
8. Use only pipe, hose and fittings rated for the maximum
psi rating of the pump.
9. Do not use these pumps for pumping water or other
liquids for human or animal consumption.
1573-SPX
3" NPT Outlet
Form L-1474
(12/12)
