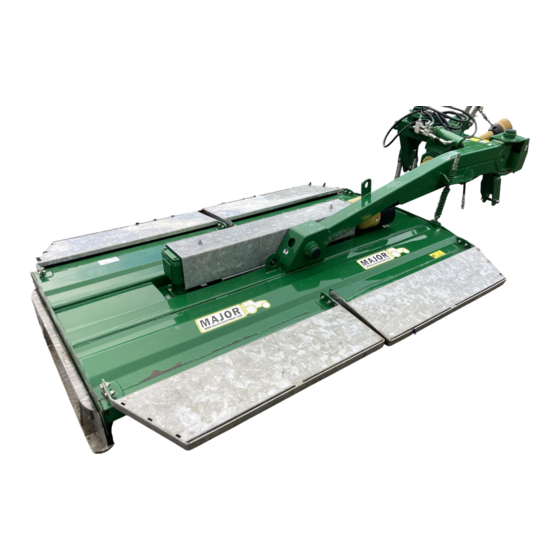

Major 800SM Operator's Manual & Parts List
  1. Manuals
  2. Brands
  3. Major Manuals
  4. Farm Equipment
  5. 800SM
  6. Operator's manual & parts list

Major 800SM Operator's Manual & Parts List

Grass toppers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Operator Manual
& Parts List
MAJOR RANGE OF
GRASS TOPPERS
Models: 800SM, 900SM, 9FTGDX & 909HD
Rev. 201009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 800SM and is the answer not in the manual?

Questions and answers

Related Manuals for Major 800SM

Summary of Contents for Major 800SM

  • Page 1 Operator Manual & Parts List MAJOR RANGE OF GRASS TOPPERS Models: 800SM, 900SM, 9FTGDX & 909HD Rev. 201009...
  • Page 2 Major reserves the right to modify the machinery and the technical data contained within the man- ual without prior notice. Further to this, Major assumes no liability for any damages which may result from the use of the information contained within this manual.

  • Page 3: Table Of Contents

    Hydraulic Breakaway Adjustment Blade Rotations Maintenance PTO Shaft Maintenance Shearbolt Replacement Maintenance Schedule Trouble Shooting Spare Parts 9FTGDX Overview 909HD Overview 9FTGDX and 909HD Wheel Assembly 800SM and 900SM Body 800SM and 900SM Linkage 800SM and 900SM Hydraulics Blades PTO Shafts Gearboxes...

  • Page 4: Thank You

    Product Identification Machine Serial Numbers If you need to contact MAJOR or your MAJOR dealer for information on servicing or spare parts, always provide the product model and serial numbers. We suggest that you record your machine details below:...

  • Page 5: Register Your Product And Warranty Online

    Operating Safely The MAJOR Topper is designed to operate at 540 RPM. Ensure tractor PTO output is set at 540 RPM. The MAJOR Topper must only be used for cutting grass. Moreover, it must only be used with a suitable tractor (see product specifi- cations) and driven by an adequate drive-line by the tractor PTO.

  • Page 6: Workstation

    First cut shield “1” and use part “2” as a reference to cut the splined shaft. • Proceed in the same way for the second half. • Trim and chamfer the two cut ends of the PTO and clean off all swarf www.major-equipment.com...

  • Page 7: Driving Safely On Public Roads

    1. With the whole machine as level as possible, check the oil level in the Primary Gearbox, top up as required with Primary Gearbox T304A Primary Gearbox T292006 Primary Gearbox T27A 9FTGDX 800SM & 900SM 909HD Oil filler Oil filler Oil filler plug plug plug...

  • Page 8: Key To Main Parts

    Key to Main Parts 9FTGDX and 909HD No Name A Frame Strap PTO guard Gearbox cover Rotor gearbox Back guard Skid Front guard Wheel option 909HD & 9FTGDX only (if ordering a wheel kit post sale, please contact MAJOR for fitting instructions) www.major-equipment.com...
  • Page 9 800SM and 900SM No Name Hydraulic ram Float Headstock Transport locking pin (in transport) Carrying arm Gearbox cover Rotor gearbox Front guard Skid 10 Read guard 11 Secondary shaft 12 PTO guard 13 Transport locking pin ( when mowing) 14 Hydraulic hoses...

  • Page 10: Machine Set Up

    1. Check machine is hitched to the tractor as described. Ensure the tractor parking brake is applied 2. Lift the body clear from the ground with the tractor 3 point linkage 3. Transform the machine into transport position by hydraulic control. 4. Lock in position with the transport locking pin. www.major-equipment.com...

  • Page 11: Hitching To The Tractor

    3. Transform the machine into mowing position by hydraulic control. 4. Locate transport locking pin as shown previously Never place limbs under the machine while rotors are turning. Rotors can remain turning for up to 1 minute after disengaging PTO www.major-equipment.com...

  • Page 12: Adjusting The Skids And Cutting Height

    Mowing - All Models 1. The MAJOR Topper is designed to operate at a max 540 rpm. Always operate on level ground when connecting / unconnecting the implement. This will prevent dangerous movement. 2. Never allow anyone to stand between the tractor and the TOPPER Ensure the machine is hitched correctly to the tractor as previously described 3.

  • Page 13: Blade Rotations

    Good, regular maintenance and correct use are if the Topper is to remain safe and long lasting. PTO Shaft Maintenance Guard Removal and Yoke End Greasing Prise back locking tabs Pull back PTO Guard Grease points as shown Push Guard into position Click into place Tie check chain PTO Guard Greasing Intervals www.major-equipment.com...

  • Page 14: Shearbolt Replacement

    4. Slide yoke shield securely in place IMPORTANT Fit PTO shaft with the shearbolt end connected to the Topper as directed on the PTO guarding Use only genuine MAJOR replacement shear bolts. M8X50 BZP -8.8 Maintenance Schedule Grease the following:...
  • Page 15 Advancing into grass too rapidly Reduce forward speed behind tractor while Very heavy crop Reduce forward speed and / or change cutting height cutting. Pressure relief valve is set too low Adjust relief valve until cutting deck stops falling back www.major-equipment.com...

  • Page 16: Spare Parts

    LF205 GEARBOX 205.871 3546 Linch Pin 5/8F 5/8” FINE NYLOC NUT SW12 1/2” Spring Washer 58x2FBZP 5/8”x2” Bolt SW58 5/8” Spring Washer 8SM18 6 Spline Star Drive T27A 6 Spline T Gearbox 9GTSTRP Strap T600810ENC12RW6 PTO Shaft EW29A D Shackle www.major-equipment.com...

  • Page 17: 909Hd Overview

    LF-140J 6 SPLINE “L” BOX Ratio 1.5 190545 PTO GUARD 5/8” FINE NYLOC NUT 8SM-18 6 SPLINE STAR DRIVE 9GTSTRP 900M STRAP (3226mm) EW29A 5/8” “D” SHACKLE FWM16 M16 FLAT WASHER FWM20 M20 FLAT WASHER FWM8 M8 FLAT WASHER www.major-equipment.com...

  • Page 18: 9Ftgdx And 909Hd Wheel Assembly

    Wheel ‘DIA 600x170mm CAT 1 PIN DIA 19x127mm 5/8F 5/8” FINE NYLOC NUT TWA-045 AXLE PLATE (CAR) 58x5FBZP 5/8”x5” FINE BOLT TWA-045H AXLE PLATE (CAR) FWM16 M16 FLAT WASHER NOTE: Outer guards must be replaced with shorter varient. Part number SL45-RG. www.major-equipment.com...

  • Page 19: 800Sm And 900Sm Body

    800SM and 900SM Body Item Part No Description Item Part No Description Blades Blade (Anti Clk) (800SM) 8SM18 6 SPLINE STAR DRIVE Blades Blade (Anti Clk) (900SM) 8SM30 Safety Skirt - 800SM Blades Blade (Clk) (800SM) 9TSKF Safety Skirt - 900SM...

  • Page 20: 800Sm And 900Sm Linkage

    800SM and 900SM Linkage Item Part No Description Item Part No Description 8SM-BGA 800SM Body FWM24 M24 Flat Washer 8SM5 Damper Bar M10 Nyloc Nut 8SM8 Top Link Float Hinge M10x100BZP M10x100 Bolt 9SM-CA01 900SM Carry Arm (8SM4) M12x30SZP Bolt...

  • Page 21: 800Sm And 900Sm Hydraulics

    800SM and 900SM Hydraulics Item Part No Description 900SM_HOSE 1/4”Hydraulic Hose Str to Block 90 EDOW12 1/2” DOWTY WASHER EDOW14 1/4 DOWTY SEAL EMM1214 1/2-14” M/M CONNECTOR EMM14 1/4” M/M CONNECTOR QRM12 1/2” QUICK RELEASE MALE EMM14RV 1/4” M/M RESTRICTOR (1mm)

  • Page 22: Blades

    Blades PRO-CUT BLADE SYSTEMS - on all machines from April 2009 MACHINE MODEL: 800SM MACHINE MODEL: 900SM, 9FTGDX and 909HD Item Part No Description Item Part No Description 1/2F 1/2” Nyloc Nut 1/2F 1/2” Nyloc Nut DF-BMP BLADE MOUNT BLADE MOUNT (9FTGDX &...
  • Page 23 OLDER BLADE SYSTEMS - on all Models prior to April 2009 MACHINE MODEL: 800SM MACHINE MODEL: 900SM and 9FTGDX Item Part No Description Item Part No Description 1/2F 1/2” Nyloc Nut 1/2F 1/2” Nyloc Nut 12T-OLB Overlap Blade 12X212FBZP 1/2”x2 1/2” FINE BOLT 12X212FBZP 1/2”x2 1/2”...

  • Page 24: Pto Shafts

    PTO Shafts Machine Primary Secondary T600610ENC12RB2 (T60BOOR-900) T501160CEC12C12 800SM T60 SHAFT OVERRUN+SHEARBOLT T50 SHAFT COLLAR T600610ENC12RB2 (T60BOOR-900) T501160CEC12C12 900SM T60 SHAFT OVERRUN+SHEARBOLT T50 SHAFT COLLAR T600810ENC12RW6 9FTGDX T60 SHAFT SLIP CLUTCH T601210ENC12RW6SX 9FTGDX (front mounted) T60 SHAFT OVERRUN+CLUTCH FRONT V600910ENC12RW6...

  • Page 25: Gearboxes

    Gearboxes Machine Gearbox 909HD LF140J (9.140.811.00) 909HD T292006 800SM, 900SM, 9FTGDX LF205 800SM, 900SM LF205T 9FTGDX (540 PTO input) T27A 9FTGDX - front mounted T27A1 800SM, 900SM T304A LF140J Gearbox Breakdown Item Part No Description 0.248.7500.00 Shim Kit (60.3x71.7) 8.1.1.00041 Bolt M8X22 8.6.6.00088...
  • Page 26 Castle Nut LF135/2 Washer LF135/19 M10x20SZP Bolt LF135/6 Snap Ring LF135/3 Snap Ring 85200648 Circlip LF135/13 Plug LF135/5 Double Lip Seal LF135/14 Double Lip Seal LF135/26 Cover LF135/8 Shim LF135/3 Snap Ring 0.6.775.000 Shim Name Plate 0.248.7500.00 Shim 85200131 Circlip www.major-equipment.com...
  • Page 27 Snap Ring UNI7435 T27/8 Bearing 30207 T27/5 Spacer T27/6 SHAFT 1 3/8” Z6 T4A/5 Shim Kit (60.3x71.7) T27/13 Cover T27/16 Pinion Z17 M5.4 T4A/10 PLUG 3/8”GAS M10x20SZP Bolts M10x20 Name Plate T4A/5 Shim Kit (60.3x71.7) T27/17 Oil Filler Plug www.major-equipment.com...
  • Page 28 T4A/21 Bolt M12x25B T4A/18 Bearing 30208 T4A/4 SHIM 35.3x48.0 T304A/7 Spacer T4A/5 Shim Kit (60.3x71.7) T4A/8 Bearing 32207 T4A/3 Snap Ring T304A/9 Pinion Shaft Z15 M5 T4A/1 Oil Seal 25x72x10 T4A/19 Gasket T4A/6 Bearing 6207 T4A/2 Snap Ring UNI7435 www.major-equipment.com...
  • Page 29 NOTES: www.major-equipment.com...
  • Page 30 To register your machine for warranty, please go to the Support section of our website www.major-equipment.com and fill in your details.
  • Page 31 HEAD OFFICE UK OFFICE NL & GERMANY OFFICE Major Equipment Intl Ltd Major Equipment Ltd Major Equipment Intl Ltd Ballyhaunis, Co Mayo Major Ind. Estate, Heysham, Postbus 29, NL-7700 AA Ireland Lancs, LA3 3JJ, UK Dedemsvaart, Nederland Tel: 094 9630572...

This manual is also suitable for:

900sm9ftgdx909hd
