7721AE4-HD HDTV 4 Channel AES Audio Embedder
INTERFACE .................................... 14
®
Revision 1.4
7700 MultiFrame Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for evertz 7721AE4-HD
Summary of Contents for evertz 7721AE4-HD
-
Page 1: Table Of Contents
7700 MultiFrame Manual 7721AE4-HD HDTV 4 Channel AES Audio Embedder TABLE OF CONTENTS OVERVIEW............................1 INSTALLATION..........................3 SPECIFICATIONS..........................5 3.1. SERIAL VIDEO INPUT ......................5 3.2. SERIAL VIDEO OUTPUTS WITH EMBEDDED AUDIO ............5 3.3. AES AUDIO INPUTS ......................... 5 3.4. - Page 2 7700 MultiFrame Manual 7721AE4-HD HDTV 4 Channel AES Audio Embedder 7.4. V LINK TRAPS ......................... 17 ISTA ® Figures Figure 1-1: 7721AE4-HD Block Diagram ......................2 Figure 2-1: 7721AE4-HD Rear Panels........................ 3 Figure 6-1: Location of Jumpers ........................15 Tables Table 4-1: Audio Group and Mode Status LEDs....................
- Page 3 Jun 08 Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor for the rights of third parties, which may be affected in any way by the use thereof. Any representations in this document concerning performance of Evertz products are for informational use only and are not warranties of future performance, either expressed or implied.
- Page 4 7700 MultiFrame Manual 7721AE4-HD HDTV 4 Channel AES Audio Embedder This page left intentionally blank Revision 1.4...
-
Page 5: Overview
SMPTE 299M allocates four groups of four audio channels that can be embedded into the SMPTE 292M bitstream. The 7721AE4-HD embeds up to 4 AES audio into two selectable groups on the SDI outputs for discrete 5.1 audio applications. The 7721AE4-HD is Dolby E compliant when the sample rate converters are turned off. -
Page 6: Figure 1-1: 7721Ae4-Hd Block Diagram
7700 MultiFrame Manual 7721AE4-HD HDTV 4 Channel AES Audio Embedder By Pass Relay Audio Present Serial Output Serial Input 1.5 Gb/s 1.5 Gb/s with SMPTE 299M (SMPTE 292M) embedded Audio Cable Equalizer Embedder P / S S / P Driver... -
Page 7: Installation

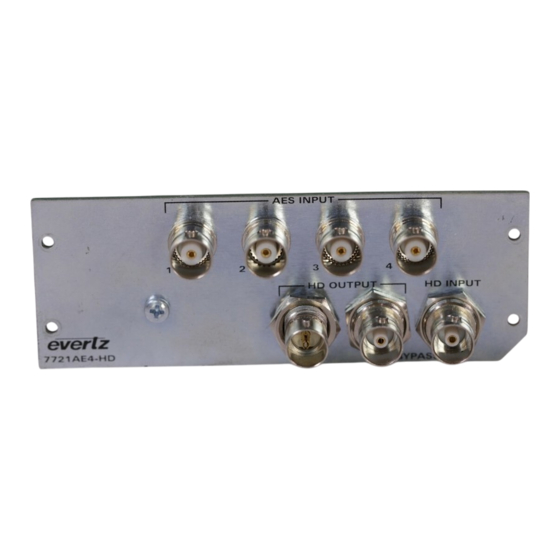

7721AE4-HD HDTV 4 Channel AES Audio Embedder INSTALLATION The 7721AE4-HD modules each come with a companion rear plate that has 7 BNC connectors. For information on mounting the rear plate and inserting the module into the frame see section 3 of the 7700FR chapter. - Page 8 7700 MultiFrame Manual 7721AE4-HD HDTV 4 Channel AES Audio Embedder AES INPUT 1: AES audio input for AES pair 1 (channel 1 and 2) of the audio group selected for embedding by embedder 1. AES INPUT 2: AES audio input for AES pair 2 (channel 3 and 4) of the audio group selected for embedding by embedder 1.
-
Page 9: Specifications
7700 MultiFrame Manual 7721AE4-HD HDTV 4 Channel AES Audio Embedder SPECIFICATIONS 3.1. SERIAL VIDEO INPUT Standard: SMPTE 292M (1.5Gb/s), 1080i/60, 1080i/59.94, 1080i/50, 1080p/30sF, 1080p/29.97sF, 1080p/25sF, 1080p/24sF, 1080p/23.98sF, 720p/60, 720p/59.94, 720p/50) Connector: BNC per IEC 60169-8 Amendment 2 Equalization: Automatic 100m @ 1.5 Gb/s with Belden 1694A or equivalent cable Return Loss: >... -
Page 10: Physical
7700 MultiFrame Manual 7721AE4-HD HDTV 4 Channel AES Audio Embedder 3.6. PHYSICAL 7700 or 7701 frame mounting: Number of slots: Stand Alone Enclosure: Dimensions: 14 “L x 4.5 “W x 1.9 “H (355 mm L x 114 mm W x 48 mm H) Weight: approx. -
Page 11: Status Leds
7700 MultiFrame Manual 7721AE4-HD HDTV 4 Channel AES Audio Embedder STATUS LEDS The location of the status LEDs is shown in Figure 6-1. 4.1. MODULE STATUS LEDS MODULE OK: This Green LED will be On when the module is operating properly. Depending on the Status LED mode chosen, the LED will be On solid when input video or audio, or both video and audio, is present (please refer to section 5.6). -
Page 12: Table 4-1: Audio Group And Mode Status Leds
7700 MultiFrame Manual 7721AE4-HD HDTV 4 Channel AES Audio Embedder DIP Switch Control Value Description Description AES1 Present AES2 Present Audio Present AES3 Present AES4 Present Minimum ½ frame 1 frame 1 ½ frames 2 frames 2 ½ frames 3 frames Audio Delay 3 ½... -
Page 13: Card Edge Controls
CARD EDGE CONTROLS The 7721AE4-HD is equipped with an 8 position DIP switch to allow the user to select various functions. All positions are assigned sequentially such that the first position is located at the left side of the DIP switch (farthest from to the card ejector). -
Page 14: Table 5-2: Embedder 1 Enable Switch Settings
7700 MultiFrame Manual 7721AE4-HD HDTV 4 Channel AES Audio Embedder The source for Embedder A is the audio coming in on the AES IN 1 and 2 connectors. The source for Embedder B is the audio coming in on the AES IN 3 and 4 connectors. There are separate DIP switch settings that are used to enable or disable each embedder as well as to set the audio groups where the embedders will place the audio on the SDI output. -
Page 15: Selecting The Audio Delay
7700 MultiFrame Manual 7721AE4-HD HDTV 4 Channel AES Audio Embedder DIP Switch Control Value Description Description Group 1 Embedder 2 Group 2 Group Group 3 Group 4 Table 5-5: Embedder 2 Group Switch Settings 5.2. SELECTING THE AUDIO DELAY When the DIP switches are as shown in Table 5-6, the toggle switch is used to select one of fifteen delays which can be added to the audio before it is embedded. -
Page 16: Selecting Aes Locked Group Mode
7700 MultiFrame Manual 7721AE4-HD HDTV 4 Channel AES Audio Embedder When Clean and embed is selected, all incoming HANC packets and embedded audio data will be removed; and new audio data will be embedded after EAV. The remaining H blanking period is filled with default blanking value. -
Page 17: Selecting Sample Rate Conversion For Aes Inputs
SELECTING OPERATION WHEN THERE IS NO VIDEO INPUT When there is no input video, the 7721AE4-HD will generate its own video and embed the audio onto it. When the DIP switches are set as shown in Table 5-11, the toggle switch is used to select whether the module will generate black or blue video. -
Page 18: Selecting Whether The Module Will Be Controlled From The Local Controls Or Through The
7700 MultiFrame Manual 7721AE4-HD HDTV 4 Channel AES Audio Embedder 5.8. SELECTING WHETHER THE MODULE WILL BE CONTROLLED FROM THE LOCAL CONTROLS OR THROUGH THE VISTALINK INTERFACE ® DIP switch 8 selects whether the module will be controlled from the local user controls or through the VistaLINK interface. -
Page 19: Jumpers
7700 MultiFrame Manual 7721AE4-HD HDTV 4 Channel AES Audio Embedder JUMPERS EVERTZ (C) 7700PH3 MODULE STATUS A7700AES4-2 SIGNAL PRESENT ERROR AUDIO Upgrade FRAME STATUS SFF POWER +12V Figure 6-1: Location of Jumpers 6.1. SELECTING WHETHER LOCAL FAULTS WILL BE MONITORED... -
Page 20: Vistalink ® Remote Monitoring/Control
1. An SNMP manager, also known as a Network Management System (NMS), is a computer running special software that communicates with the devices in the network. Evertz VL-Fiber demo Manager graphical user interface (GUI), third party or custom manager software may be used to monitor and control Evertz VistaLINK enabled fiber optic products. -
Page 21: Controlled Parameters
7700 MultiFrame Manual 7721AE4-HD HDTV 4 Channel AES Audio Embedder 7.3. VISTALINK CONTROLLED PARAMETERS ® Parameter Description AES Delay Sets the delay applied to the AES inputs before embedding Audio Embedder 1 Enable Enables/Disables embedder 1 Audio Embedder 1 Group... - Page 22 7700 MultiFrame Manual 7721AE4-HD HDTV 4 Channel AES Audio Embedder This page left intentionally blank 7721AE4-HD-18 Revision 1.4...
