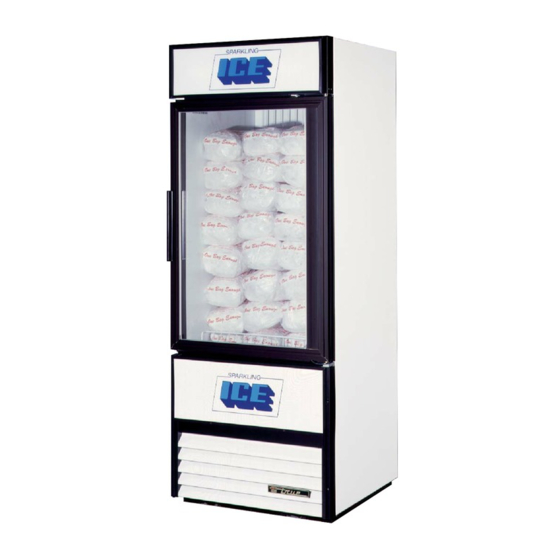

Glass door ice merchandisers
Hide thumbs Also See for GDIM-26:
Table of Contents

Advertisement

Quick Links

I N S T A L L A T I O N M A N U A L F O R G D I M
( G L A S S D O O R I C E M E R C H A N D I S E R S )
GDIM-26
GDIM-26NT
G D I M - G L A S S D O O R
G D I M - G L A S S D O O R
I C E M E R C H A N D I S E R S
I C E M E R C H A N D I S E R S
(636)-240-2400 • FAX (636)272-2408 • INT'L FAX (636)272-7546 • (800)325-6152
GDIM-49
............ www.truemfg.com ............
............ www.truemfg.com ............
TRUE FOOD SERVICE EQUIPMENT, INC.
2001 East Terra Lane • P.O. Box 970 • O'Fallon, Missouri 63366
Parts Department (800)424-TRUE • Parts Department FAX# (636)272-9471

TABLE OF CONTENTS

Cleaning Condenser Coil
*Spanish, German, and French versions included.
CONGRATULATIONS!
You have just purchased the finest commercial
freezer available. You can expect many years of
trouble-free operation.
1
2
3
4
4
5
5
5
6
7
8
9
10
11
12-13
14-15
16-17
17
18
6/20/07-500 SB #897013

Advertisement

Table of Contents
loading

Related Manuals for True GDIM-26

Summary of Contents for True GDIM-26

  • Page 1: Table Of Contents

    TRUE FOOD SERVICE EQUIPMENT, INC. 2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 (636)-240-2400 • FAX (636)272-2408 • INT’L FAX (636)272-7546 • (800)325-6152 Parts Department (800)424-TRUE • Parts Department FAX# (636)272-9471 TABLE OF CONTENTS Safety Information Safety Precautions Do’s and Don’ts...
  • Page 2 True Food Service Equipment, Inc. True Food Service Equipment, Inc..www.truemfg.com ..www.truemfg.com ...

  • Page 3: Safety Information

    You have selected one of the finest commercial freezer units made. It is manufactured under strict quality controls with only the best quality materials available. Your TRUE freezer when properly maintained will give you many Use this appliance for its intended purpose as described in this Owner Manual.

  • Page 4: Do's And Don'ts

    True Food Service Equipment, Inc. True Food Service Equipment, Inc. SAFETY INFORMATION SAFETY INFORMATION ... www.truemfg.com ..www.truemfg.com ...

  • Page 5: Proper Disposal

    Leave the shelves in place so that children may not easily climb inside. USE OF EXTENSION CORDS NEVER USE AN EXTENSION CORD! TRUE will not warranty any freezer that has been connected to an extension cord..www.truemfg.com ..www.truemfg.com ...

  • Page 6: Connecting Electricity

    When removing the freezer away from the wall, be careful not to roll over or damage the power cord. North America Use Only! NEMA plugs TRUE uses these types of plugs. If you do not have the right outlet have a certified electrician install the correct power source.

  • Page 7: Installation / Operation Instructions Ownership

    ... www.truemfg.com ..www.truemfg.com ... Before you start to install your True unit, carefully inspect it for freight damage. If damage is discov- ered, immediately file a claim with the delivery freight carrier.

  • Page 8: Locating & Installation Of Leg/Castors

    Lower Rail Assembly Rail End Snug Fit Here Leveling Shim True Food Service Equipment, Inc. True Food Service Equipment, Inc. cabinet. CAUTION slowly raise unit to upright position. Thread leg into cabinet bottom frame rail.

  • Page 9: Leveling Cabinet

    (100°F+, 38°C+), you may want to install an exhaust fan. Warning Warranty is void if ventilation is insufficient. B. Proper leveling of your True cooler is critical to operating success (for non-mobile models). Effective condensate removal and door operation will be effected by leveling.

  • Page 10: Wire Gauge Chart

    Wire Gauge for 2% Voltage Drop in Supply Circuits 230 Volts Amps ... www.truemfg.com ..www.truemfg.com ... Distance In Feet To Center of Load Distance In Feet To Center of Load True Food Service Equipment, Inc. True Food Service Equipment, Inc.

  • Page 11: Sealing Cabinet To Floor & Electrical Inst

    ... www.truemfg.com ..www.truemfg.com ... True requires that a sole use circuit be dedicated for the unit. Failure to do so voids warranty. WARNING Compressor warranties are void if compressor burns out due to low voltage.

  • Page 12: Startup

    True dealer or recommended service agent. D. Good air flow in your True unit is critical. Be careful to load product so that it neither presses against the back wall, nor comes within four inches of the evaporator housing.

  • Page 13: Defrost Time Clock Operation (Grasslin)

    All refriger- ation equipment operating below 30°F will accumulate frost on the evaporator coil and will require routine defrost. Your True equipment has been designed for three defrost periods (6:00 a.m., 2:00 p.m. and 10:00 p.m.). If you decide to deviate from these defrost time settings please follow the procedures for adjustment below.

  • Page 14: Field Troubleshooting

    Any capacitor found to be bulging, leaking, or damaged should be replaced..www.truemfg.com ..www.truemfg.com ... True Food Service Equipment, Inc. True Food Service Equipment, Inc. Make sure capacitors are discharged before checking. Check for continuity between each capacitor terminal and the case.
  • Page 15 This will be true only if liquid refrigerant is in the line at the restricted point, since any temperature change due to restric-...

  • Page 16: Maintenance, Care & Cleaning

    True Food Service Equipment, Inc. True Food Service Equipment, Inc. MAINTENANCE, CARE & CLEANING MAINTENANCE, CARE & CLEANING MAINTENANCE, CARE & CLEANING CLEANING THE CONDENSER COIL When using electrical appliances, basic safety precautions should be followed, including the following: REQUIRED TOOLS: •...

  • Page 17: Important Warranty Information

    5. When finished be sure to replace the louvered grill. The grill protects the condenser. 6. Reconnect the electrical power to the unit. If you have any questions, please call True Manufacturing at 636-240-2400 or 800-325-6152 and ask for the Service Department. Service Department Availability Monday-Friday 7:30 a.m. to 5:30p.m.

  • Page 18: Cabinet Cleaning

    Oxygen helps maintain the passivity film on stainless steel. 7. Hydrochloric acid (muriatic acid) should never be used on stainless steel 8. Regularly restore/passivate stainless steel ... www.truemfg.com ..www.truemfg.com ... True Food Service Equipment, Inc. True Food Service Equipment, Inc.

  • Page 19: Light Bulb Replacement

    True Food Service Equipment, Inc. True Food Service Equipment, Inc. MAINTENANCE, CARE & CLEANING MAINTENANCE, CARE & CLEANING Stainless Steel Equipment Care and Cleaning Recommended cleaners for certain situations / environments of stainless steel A) Soap, ammonia and detergent medallion applied with a cloth or sponge can be used for routine cleaning.

  • Page 20: Warranty (U.s.a. & Canada Only!)

    SINCE 1945 TRUE warrants to the original purchaser of every new TRUE refrigerated unit, the cabinet and all parts thereof, to be free from defects in material or work- manship, under normal and proper use and maintenance service as specified by TRUE and upon proper installation and start-up in accordance with the instruction packet supplied with each TRUE unit.
