HMI Panel Drawings

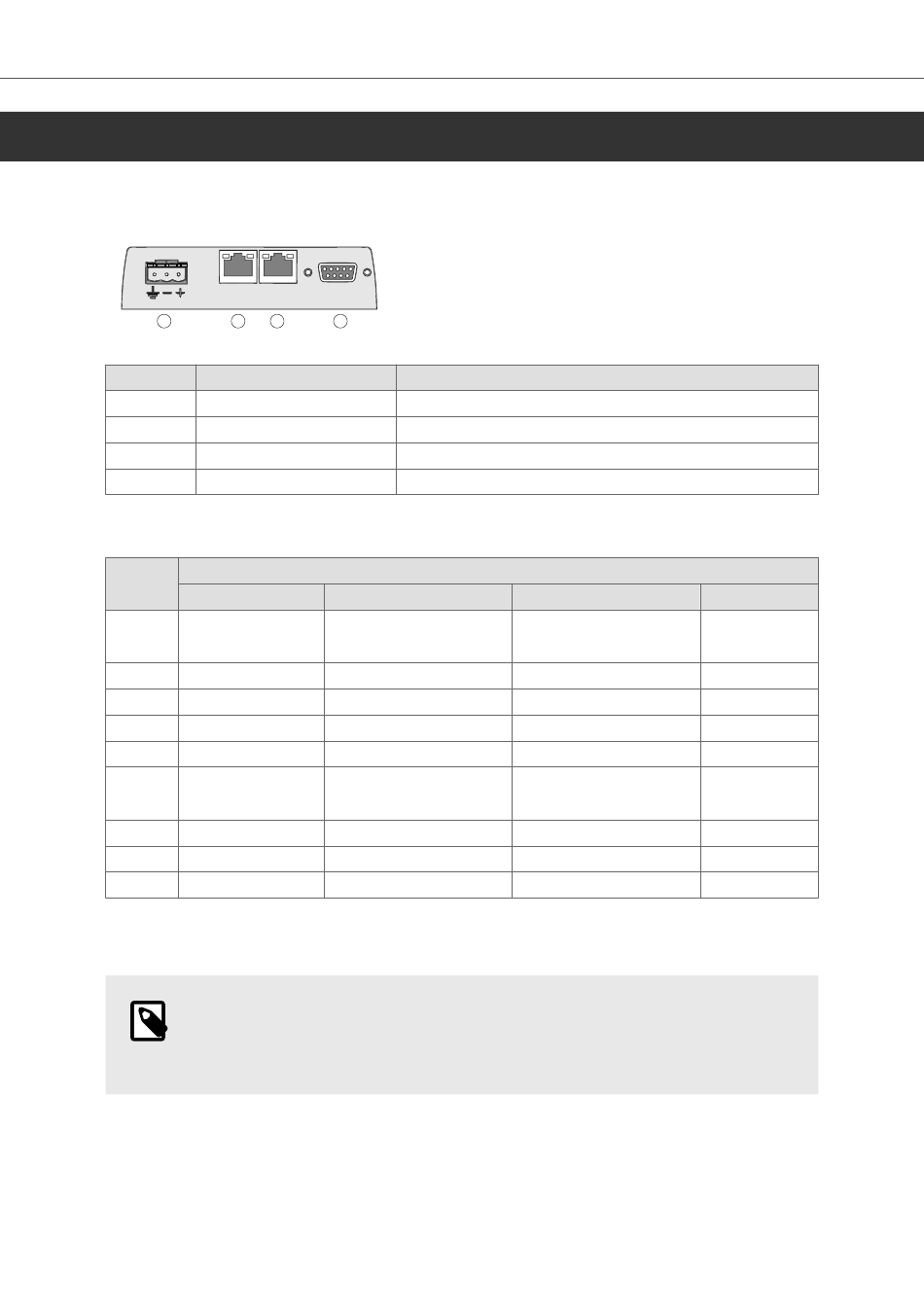

6. HMI Panel Drawings

6.1. Connectors

3
1 2
Pos Connector
1 Power supply
2 LAN A
3 LAN B
4 COM

6.1.1. Communication Ports

Pin
COM 1
1
2 RS-232 RxD
3 RS-232 TxD
4
5 GND
6
7 RS-232 RTS
8 RS-232 CTS
9
The connector supports up to three independent communication channels and can be configured for
RS-232 and RS-422 or 2x RS-485 or 1x CAN.
NOTE
In order to utilize two communication ports, the Y-split cable CAB109 can be used.
To use RS-232 and RS-422, use CAB 109.
2023-09
4
+24 V DC (18–32 V DC)
1×10/100 Base-T (shielded RJ45)
1×10/100 Base-T (shielded RJ45)
Serial communication port
D-sub-9, female
COM 2
RS-422 Tx+
RS-485 Tx+/Rx+
RS-422 Rx+
GND
RS-422 Tx-
RS-485 Tx-/Rx-
RS-422 RX-
18
Description
COM 3
RS-485 Tx+/Rx+
GND
RS-485 Tx-/Rx-
Beijer Electronics, MAEN215
CAN 1
CAN 1-H
GND
CAN 1-L
