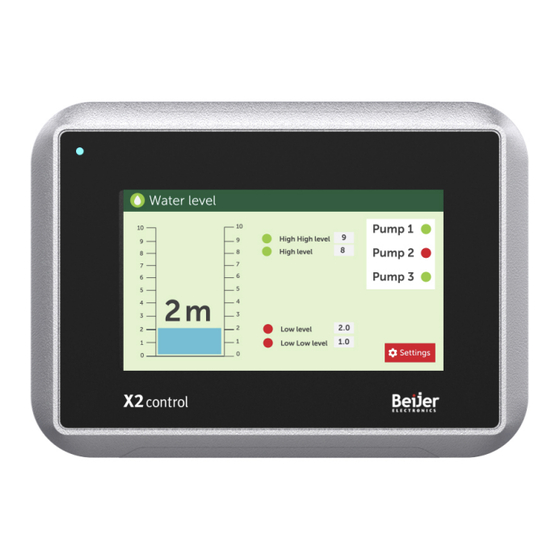

- Page 1 Installation Manual X2 control 4 - B2 MAEN213 2023-09...
- Page 2 The information in this document is subject to change without notice and is provided as availa- ble at the time of printing. Beijer Electronics AB, including all its group companies, reserves the right to change any information without updating this publication. Beijer Electronics AB, in- cluding all its group companies, assumes no responsibility for any errors that may appear in this document.
-
Page 3: Table Of Contents
7.7. Cable and Bus Termination RS-485 ............27 7.8. CAN Interface ..................27 7.8.1. Cable Recommendations .............. 27 7.8.2. Termination ................27 7.8.3. Restrictions and Recommendations ..........28 7.9. USB Flash Drive .................. 28 7.10. Image Sticking .................. 28 Beijer Electronics, MAEN213 2023-09... -
Page 5: Safety Precautions
Cr6+ PBDE PCB 和电子元件 O: Indicates that the concentration of the hazardous substance in all homogeneous materials in the parts is below the relevant threshold of the GB/T 26572-2011 standard. O: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572-2011 规定的限 量要求以下。 Beijer Electronics, MAEN213 2023-09... -
Page 6: Disposal Requirements Under Weee Regulations
• For use on a flat surface of a type 4X enclosure indoor use only. • Use minimum 75°C copper conductors only. • To make wiring connections to the power supply connector, follow the table with cable and torque specifications below: 2023-09 Beijer Electronics, MAEN213... -
Page 7: During Installation
• Before carrying out any cleaning or maintenance operations, disconnect the equipment from the electrical supply. • Clean the display and surrounding front cover with a soft cloth and mild detergent. • The battery must be replaced by an authorized Beijer Electronics service center. Beijer Electronics, MAEN213 2023-09... -
Page 8: Cleaning The Display
• If condiments, food, or drinks are spilled on the surface of the touchscreen, please remove it immediately. • Ensure moisture does not seep through the cable connection area from the edges during cleaning. 2023-09 Beijer Electronics, MAEN213... -
Page 9: Dismantling And Scrapping
The layer structure of the touch screen contains air. In rare cases, the appearance of bubbles can arise. This is purely cosmetic and does not affect the functionality of the HMI panel. The appearance can occur under certain environmental conditions such as changes in temperature, humidity, or atmospheric pressure. Beijer Electronics, MAEN213 2023-09... -
Page 10: Naming Convention
• X2 extreme 7 SL HP* • X2 extreme 12 SL HP SC* • X2 extreme 7 CO* • X2 extreme 12 SL HP RO NOTE Not all combinations are available. NOTE * indicates variants including IECEx\ATEX and C1D2 accreditation. 2023-09 Beijer Electronics, MAEN213... -
Page 11: Installation
To cut a correct opening for the HMI panel, use the cut out dimensions in the outline drawing. A separate cut out drawing is available for download from the Beijer Electronics web site. For more information, see chapters HMI Panel Drawings and Technical Data. - Page 12 The image is illustrative only and may differ slightly from the actual panel. • Connect cable A. • Connect cable B, using 14-20 AWG (2.08–0.52 mm ), 180–220 N-cm torque. • Connect cable C. • Connect cable D. The recommended cross-section of the cable is 1.5 mm 2023-09 Beijer Electronics, MAEN213...
-
Page 13: Connections To The Controller
3.2.2. Other Connections and Peripherals Cables, peripheral equipment and accessories must be suitable for the application and its environment. For further details or recommendations, please refer to the supplier. Beijer Electronics, MAEN213 2023-09... -
Page 14: Technical Data
1 × SD card Flash memory 1.5GB SSD (eMMC) (application memory) Memory RAM 1 GB (DDR3) NVRAM 128 kB 1 × Multi color Real time clock Battery BR 2032 lithium battery Power consumption at 12 W rated voltage 2023-09 Beijer Electronics, MAEN213... -
Page 15: Compass Safe Distance
Information is available on www.beijerelectronics.com 4.1. Compass Safe Distance Variant Condition Standard Compass Steering Compass X2 control 4 Non-energized 95 cm 85 cm Non-energized after magnetization 95 cm 85 cm Energized and operating 95 cm 85 cm Beijer Electronics, MAEN213 2023-09... -
Page 16: Chemical Resistance
The Autoflex protective film covers the overlay surrounding the screen. Solvent Resistance The protective film withstands exposure of more than 24 hours duration under DIN 42115 Part 2 to the following chemicals without visible change: Acetonitrile Diesel Petroleum spirit 2023-09 Beijer Electronics, MAEN213... -
Page 17: Touch Screen Surface
5.2.3. Touch Screen Protector For harsh environments and exposure to outdoor conditions, it is recommended to use a protective film to guard the touch screen from damage. This optional part can be ordered from Beijer Electronics. Beijer Electronics, MAEN213 2023-09... -
Page 18: Hmi Panel Drawings
The connector supports up to three independent communication channels and can be configured for RS-232 and RS-422 or 2x RS-485 or 1x CAN. NOTE In order to utilize two communication ports, the Y-split cable CAB109 can be used. To use RS-232 and RS-422, use CAB 109. 2023-09 Beijer Electronics, MAEN213... -
Page 19: Hmi Panel Outline
HMI Panel Drawings 6.2. HMI Panel Outline maximum mater ial thickness 11 mm "LAN B" not included with X2 pro Beijer Electronics, MAEN213 2023-09... - Page 20 HMI Panel Drawings NOTE A Step CAD file is available on www.beijerelectronics.com 2023-09 Beijer Electronics, MAEN213...
-
Page 21: Additional Installation Tips
• 3 turns around the ferrite core provide 9 times the suppression of 1 turn. • Connect a wire or grounding braid, that is sized correctly according to local electrical codes, between the chassis of the HMI panel and the closest grounding point. Beijer Electronics, MAEN213 2023-09... -
Page 22: Ethernet Connection In The Hmi Panel
A good solution may be to use a shielded Ethernet cable, but to connect the shield at one end only. One option is to break the shield, see 3 in drawing above. 2023-09 Beijer Electronics, MAEN213... -
Page 23: To Achieve Better Emc Protection
HF transients to ground. 7.3. To Achieve Better EMC Protection • Initially, use the original cabling from Beijer Electronics primarily. • Place the 24 V DC and communications cabling in one cable trunk/cable duct and 230/380 V AC in another. -
Page 24: Ambient Temperature
An approximate value of the net power consumption for the HMI panel can be calculated by multiplying the supply voltage with the current drawn by the HMI panel. This is assuming that all supplied power is transformed to heat. 2023-09 Beijer Electronics, MAEN213... -
Page 25: Safety
• Safety is increased. The 24 V power supply is not live in the event of a faulty connection or short circuit between 0 V (24 V) and 230 V phase. • Transients on the 24 V feed are connected to the ground. Beijer Electronics, MAEN213 2023-09... -
Page 26: Galvanic Isolation
HMI panel, and can cause errors. Use external units to improve communication and achieve galvanic isolation. Westermo has good industry-standard insulators that are also insulated from the 24 V DC feed. 2023-09 Beijer Electronics, MAEN213... -
Page 27: Cable And Bus Termination Rs-485
120 Ohm/1%/0.25W on each end. • Place the termination resistor near the CAN bus connector (as close as possible). • This product has no integrated termination resistors. They must be added externally. Beijer Electronics, MAEN213 2023-09... -
Page 28: Restrictions And Recommendations
• Use the screensaver functionality (see SW manual). • Changing constantly between static and dynamic images. • Avoid excessive brightness differences between foreground and background elements. • Use colors with similar brightness. • Use complementary colors in follow-up images. 2023-09 Beijer Electronics, MAEN213...
