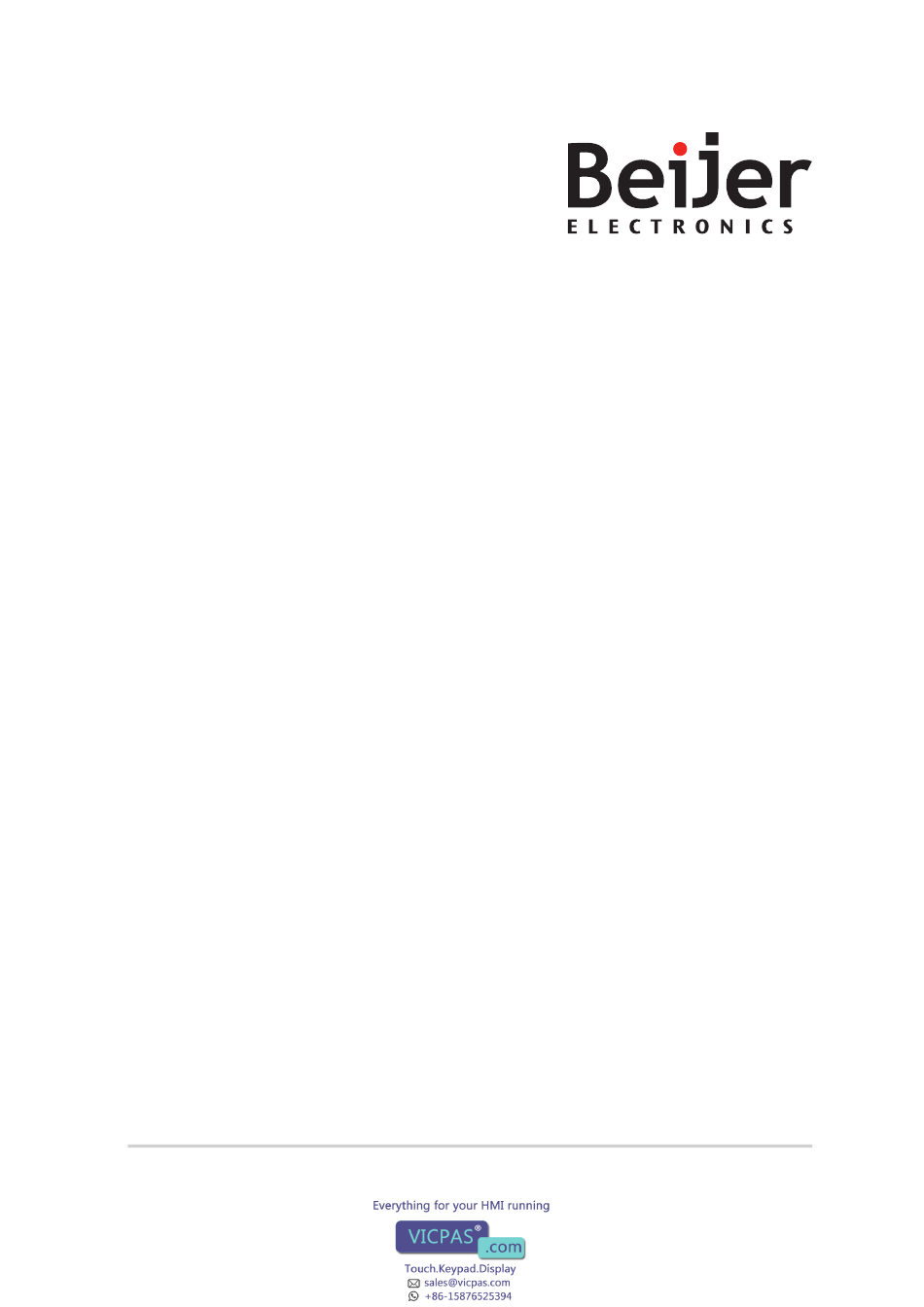

- Page 1 EXTER T150 Installation Manual English MAEN775E, 2014-11...
- Page 2 The information in this document is subject to change without notice and is provided as available at the time of printing. Beijer Electronics AB reserves the right to change any information without updating this publication. Beijer Electronics AB assumes no responsibility for any errors that may appear in this document.
-
Page 3: Table Of Contents
Touch Screen Protector ......... . 15 5 Operator Panel Drawings ..........16 Communication Ports ........... 16 EXTER T150 Outline .......... 17 6 Additional Installation Tips ..........18 Grounding the Operator Panel ......... 18 Ethernet Connection in the Panel ...... -
Page 4: Safety Precautions
UL and cUL Installation Caution: This section is only valid for UL labeled EXTER T150 panels. • This equipment is suitable for use in non-hazardous locations only. [Combinations of equipment in your system are subject to investigation by the local authority having jurisdiction at the time of installation]. - Page 5 X1/X100 Anytek connectors AWG 24–12 • These devices are Class 2 supplied programmable controllers (industrial PCs) for the use in industrial control equipment and are intended to be (front) panel mounted (Type 1 and 4x for indoor use only). Beijer Electronics, MAEN775E...
-
Page 6: During Installation
• Replacing the battery incorrectly may result in explosion. Only use batteries recommended by the supplier. During the warranty period, the battery needs to be replaced by an authorized Beijer Electronics service center. Dismantling and Scrapping • The operator panel or parts thereof shall be recycled according to local regulations. -
Page 7: Installation
1. Unpack and check the delivery. If damage is found, notify the supplier. Panel cut out 355.5 x 278.5 mm (14.0 x 10.96 inch) x 14 Note: Place the operator panel on a stable surface during installation. Dropping it or letting it fall may cause damage. Beijer Electronics, MAEN775E... - Page 8 2. Place the panel cut out where the operator panel is to be situated, draw along the outer sides of the holes and cut according to the markings. 3. Secure the operator panel in position, using all the fastening holes and the provided brackets and screws: x 14 0.5 - 1.0 Nm Beijer Electronics, MAEN775E...
- Page 9 Connect cable C. – Connect cable D. – 5. Carefully remove the laminated film over the operator panel display, to avoid static electricity that could damage the panel. Beijer Electronics, MAEN775E...
-
Page 10: Mode Switches
Cables, peripheral equipment and accessories must be suitable for the application and its environment. For further details or recommendations, please refer to the supplier. Caution: When using a compact flash card, do not remove the card when the busy indicator is illuminated. Beijer Electronics, MAEN775E... -
Page 11: Technical Data
Technical Data Technical Data Parameter EXTER T150 Front panel, W x H x D 398 x 304 x 6 mm Mounting depth 60 mm (160 mm including clearance) Front panel seal IP 66 Rear panel seal IP 20 Keyboard Touch screen: Polyester on glass, 1 million finger touch material/Front operations. - Page 12 Technical Data Parameter EXTER T150 Relative humidity 5 - 85 % non-condensed Approvals and Information is available on the web site certifications www.beijerelectronics.com * See section Chemical Resistance for more information. Beijer Electronics, MAEN775E...
-
Page 13: Chemical Resistance
Xylene Ammonia, conc. Sodium hydroxide 5% 97 octan unleaded petrol Ethyl acetate Sodium hydroxide 30% 98 octan leaded petrol Touch Screen and Overlay Material 4.2.1 Autotex F157/207 Autotex F157 or F207 covers the overlay surrounding the screen. Beijer Electronics, MAEN775E... -
Page 14: Touch Screen Surface
4.2.2 Touch Screen Surface The touch screen surface on the operator panel withstands exposure to the following solvents without visible change: Solvents Time Acetone 10 minutes Isopropanol 10 minutes Toluene 5 hours Beijer Electronics, MAEN775E... -
Page 15: Touch Screen Protector
Chemical Resistance 4.2.3 Touch Screen Protector For harsh environments and exposure to outdoor conditions, it is recommended to use a protective film to guard the touch screen from damage. These optional parts can be ordered from Beijer Electronics. Beijer Electronics, MAEN775E... -
Page 16: Operator Panel Drawings
Operator Panel Drawings Operator Panel Drawings Communication Ports RS-232 RS-422 RS-485 RS-422/485 Ethernet Beijer Electronics, MAEN775E... -
Page 17: Exter T150 Outline
Operator Panel Drawings EXTER T150 Outline Beijer Electronics, MAEN775E... -
Page 18: Additional Installation Tips
Multi-wire conductors are better than single wire conductors with the same area. A braided conductor wire with the same area is even better. The best is a short, thick grounding braid. Beijer Electronics, MAEN775E... -
Page 19: Ethernet Connection In The Panel
A more elegant method is to expand the shielded Ethernet cabling with a piece of unshielded Ethernet cable, see 4 in drawing above. You can ground the shield via an external 0.1 µF/250 V plastic capacitor, see 5 in drawing above. This will connect the HF transients to the ground. Beijer Electronics, MAEN775E... -
Page 20: To Achieve Better Emc Protection
Ferrite cores that are snapped onto the shielded cabling may remove minor disturbances. Large ferrite pieces that are snapped onto unshielded cabling and where the wires go 2-4 times around the cores are approximately 5-25 times more efficient. Beijer Electronics, MAEN775E... -
Page 21: Ambient Temperature
An approximate value of the net power consumption for the operator panel can be calculated by multiplying the supply voltage with the current drawn by the operator panel. This is assuming that all supplied power is transformed to heat. Beijer Electronics, MAEN775E... -
Page 22: Safety
Transients on the 24 V feed are connected to the ground. • No risk that the 24 V feed is at a high level in relationship to the ground. This is not unusual since there is high static electricity. Beijer Electronics, MAEN775E... -
Page 23: Galvanic Isolation
24 V feed, disturbances and grounding currents from the 0 V on the 24 V side will disrupt communication. Using this type of unit solves one problem but creates a larger problem! A substandard installation may work now, but problems may arise when other devices are connected. Beijer Electronics, MAEN775E... -
Page 24: Cable And Bus Termination Rs485
Set jumper pins 6-19. • Use CAB8. It offers the option of bus termination with pull-up/-down. It is also easy to connect the bus cable via the screw terminal block. See 4 in drawing above. Beijer Electronics, MAEN775E... - Page 25 Head office Beijer Electronics AB Box 426 201 24 Malmö, Sweden www.beijerelectronics.com / +46 40 358600...
