Enhance Mobility MOJO Auto-Fold User Manual

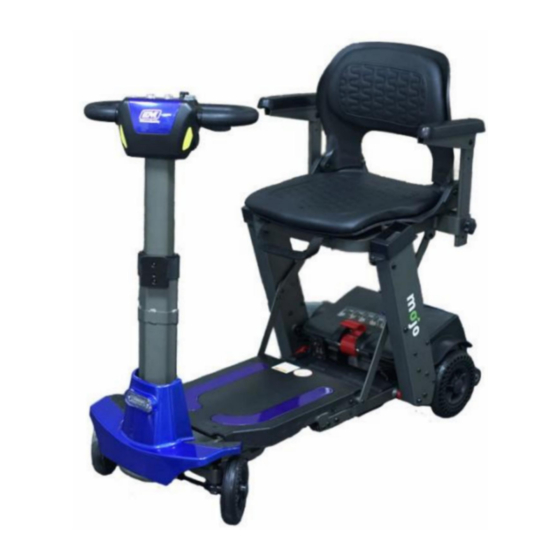

Auto-fold scooter
Hide thumbs

Advertisement

Quick Links

Auto-Fold Scooter
User Manual
April 2023

Advertisement

loading
Need help?

Need help?

Do you have a question about the MOJO Auto-Fold and is the answer not in the manual?

Questions and answers

Related Manuals for Enhance Mobility MOJO Auto-Fold

Summary of Contents for Enhance Mobility MOJO Auto-Fold

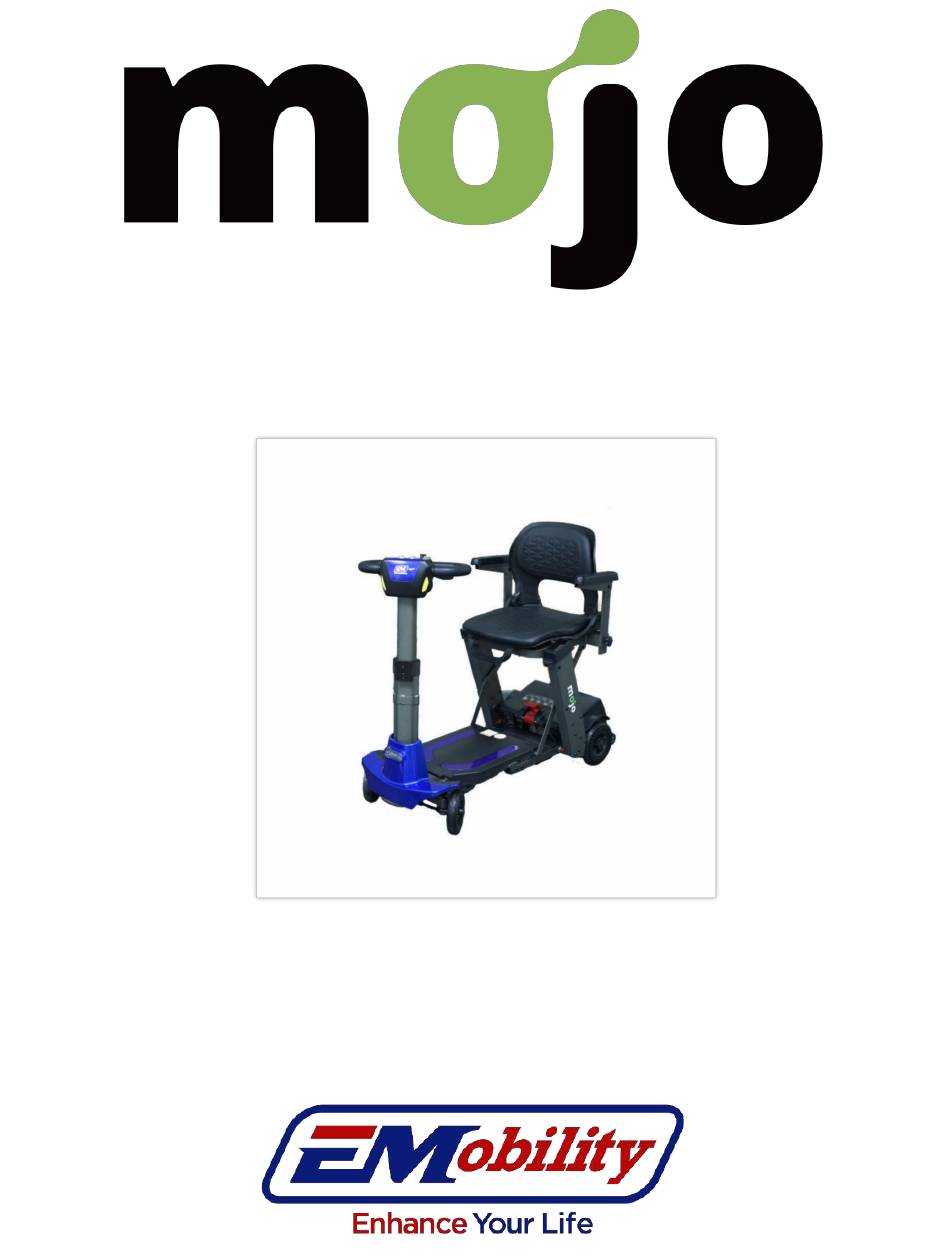

  • Page 1 Auto-Fold Scooter User Manual April 2023...

  • Page 2: Table Of Contents

    Thank you for choosing the MOJO Folding Scooter. Please read this manual carefully before operating the MOJO. If you have any questions or need further assistance, please contact your MOJO Dealer or Enhance Mobility directly at 800-296-4151option 2 or service@enhancemobility.com. This manual covers the MOJO’s characteristics, components, functions, safety guidelines, battery, and maintenance.

  • Page 3: Mojo Feature Guide

    1. MOJO Feature Guide The MOJO is composed of the following parts: front and rear frame, handlebar controls, rear wheels, front wheels, front shroud, headlight, tiller, height adjustment lock lever, tiller tilt adjuster, foldable seat, seat supporting frame, deck, battery, charger port, armrests and remote bi-pass switch.
  • Page 4 2. MOJO Specifications Model MOJO Auto-Fold (MJ101) 39 ¾” Overall Length 18”” Overall Width Honeycomb 6” Solid Front Tire Tires Honeycomb 7” Solid Rear Tires Maximum Speed Up to 3.75 mph Range Up to 13 miles Turning Radius 55” Weight (without battery pack)

  • Page 5: Key Components

    3. Key Components Handlebar Controls Charging port LCD Display Battery Indicator Headlight Control Automati c Folding Switch Steering Handle Speed Control Knob Horn Keyed Ignition Forward/Reverse Directional Controls The Handlebar Control consists of the steering handle, LCD display with battery indicator, keyed ignition, directional controls, automatic folding switch, horn and speed control.
  • Page 6 4. Operating Instructions Turning on the Power Put key in ignition and turn clockwise to turn on. The LCD display will turn on when the scooter is on. Turn the key counterclockwise to power off. The LCD display will turn off when the scooter is off. Please note –...
  • Page 7 Automatic Folding Switch The Automatic Folding switch is located on the control pod. The switch can be used instead of the remote control to open and close the scooter. To close the scooter, press the Automatic Folding Switch toward the “II” and hold the button, the scooter will fold, release the button when the scooter is fully closed.
  • Page 8 Armrest adjustment Adjustable armrest width Turn counterclockwise to Pull the armrest to adjust the loosen the screw. desired width and tighten the screws clockwise.

  • Page 9: Folding And Unfolding The Mojo

    Telescoping Tiller The tiller height can be adjusted. Push and hold the height adjustment lever while pulling up or down on the tiller. Height Adjustment Lever When the tiller is adjusted to your liking, let go of the height adjustment lever to lock the tiller into place. Adjusting the Tiller The MOJO’s tiller can adjust for rider’s comfort.
  • Page 10 To unfold (open) the MOJO Scooter, press and hold the open button on the key fob until the scooter is fully open. To Fold (close) the MOJO Scooter – press and hold the fold button on the key fob until the scooter is fully closed.
  • Page 11 MOJO Disassembly Pull the Rear Group 1 – Front Frame Continue to push Done. Release Lever toward Assembly 2 – Rear Axle the front frame the back of the scooter Group Release Lever assembly up and until the anti-tip wheels 3 –...

  • Page 12: Safety Requirements

    6. Safety Requirements Driving Surface The MOJO has the best stability under normal driving conditions (dry, level ground with concrete or asphalt). Extra care must be taken when riding on other surfaces (grass, gravel, etc.) It is unsafe to drive the MOJO up steep inclines. Please read the manual instruction completely before operation.

  • Page 13: Battery Maintenance & Battery Charging

    7. Battery Maintenance & Charging The MOJO Scooter is designed to use two maintenance free 24.9V/7.5 AH Lithium Batteries. It comes with an easy-to-use DC29V-2AH charger.  Charge the battery completely before the first operation. Not doing so can cause damage to the battery. ...
  • Page 14 How often should you charge the battery? The charge time depends on the use.  If you’re operating the scooter every day, charge after each use so it will have a full charge the next day.  If you’re operating the scooter once a week, then the battery should be charged once a week. If at any time the battery indicator has only red lights lit, charge thebattery.

  • Page 15: Basic Troubleshooting

    8. Maintenance With care and regular maintenance, the MOJO is designed to provide years of enjoyment. The following will keep your MOJO running at optimum levels. Battery  Make sure battery is fully charged.  Store the battery in a dry environment. ...
  • Page 16 An excessive voltage has been applied to the controller. This is usually due to a battery connection problem. Check battery connection. If you continue to have trouble with your MOJO, contact Enhance Mobility at 800-296-4151 – Option 2 or your authorized MOJO dealer.
  • Page 17 *Enhance Mobility is not liable for damages caused by shipping. Enhance Mobility will ship the parts directly to the customer or to the service center of their choice. Enhance Mobility will provide technical assistance and documentation to ensure the scooter is repaired properly.

This manual is also suitable for:

Mj101
