Enhance Mobility TRANSFORMER S3021 User Manual

Hide thumbs Also See for TRANSFORMER S3021:
Table of Contents

Advertisement

Quick Links

TRANSFORMER
Scooter
User Manual
March 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRANSFORMER S3021 and is the answer not in the manual?

Questions and answers

Related Manuals for Enhance Mobility TRANSFORMER S3021

Summary of Contents for Enhance Mobility TRANSFORMER S3021

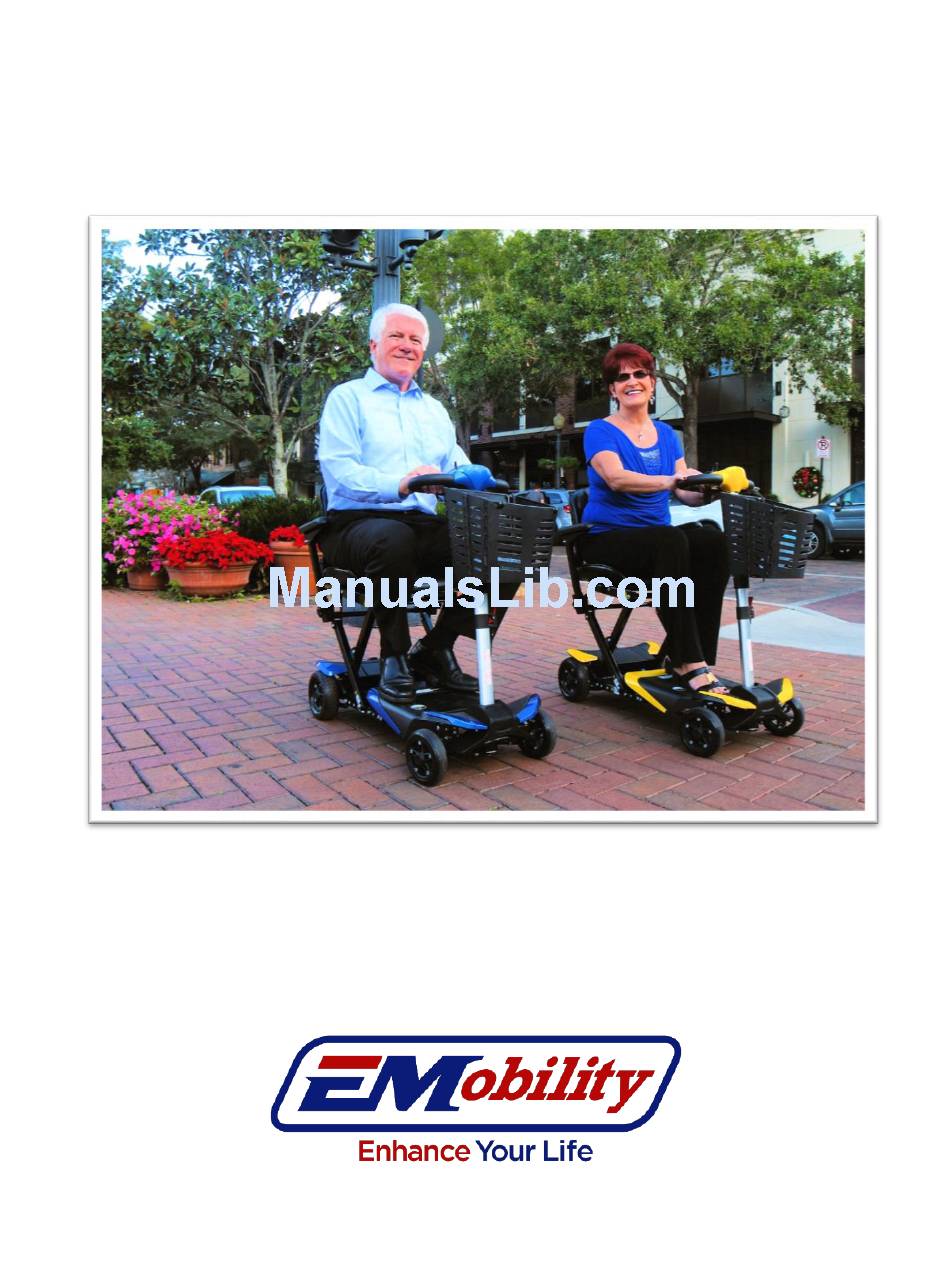

  • Page 1 TRANSFORMER Scooter User Manual March 2018...

  • Page 2: Table Of Contents

    Thank you for choosing the TRANSFORMER Folding Scooter. Please read this manual carefully before operating the TRANSFORMER. If you have any questions or need further assistance, please contact your TRANSFORMER Dealer or Enhance Mobility directly at 800- 296-4151option 2 or service@enhancemobility.com.

  • Page 3: Transformer Feature Guide

    1. TRANSFORMER Feature Guide The TRANSFORMER is composed of the following parts: front and rear frame, handlebar controls, rear wheels, front wheels, bumper, tiller, tiller lock lever, tiller tilt adjuster, foldable seat, seat supporting frame, deck, battery, charger port, armrests and remote bi-pass switch. 1.
  • Page 4 2. TRANSFORMER Specifications Model TRANSFORMER S3021 Overall Length 36.9” 18.1” Overall Width 6 x 1.5” Solid Front Tire Tires 7 x 2.36” Solid Rear Tires Maximum Speed Up to 3.75 mph Range Up to 13.5 miles Turning Radius 55” Weight (without battery pack) 53 lbs Red, Blue, Yellow &...

  • Page 5: Key Components

    3. Key Components Handlebar Controls Horn Battery Indicator Speed Knob Steering Handle Keyed Ignition Directional Controls The Handlebar Control consists of the steering handle, keyed ignition, directional controls, horn and speed control. Be sure to always protect the TRANSFORMER Handlebar Controls from humidity and water.

  • Page 6: Operating Instructions

    4. Operating Instructions Turning on the Power Put key in ignition and turn clockwise to turn on. Turn key counter-clockwise to power off. Please note – If the Free Wheel Lever is engaged the scooter will make a beeping noise when the scooter is turned on.
  • Page 7 Speed Control Knob The speed control knob is used for controlling the scooter’s speed. When you adjust the knob to the left (tortoise), it’s the minimum speed; when you adjust the knob to the right (rabbit), it’s the maximum speed. Brakes The TRANSFORMER Scooter is equipped with electromagnetic brakes.

  • Page 8: Folding And Unfolding The Transformer

    Adjusting the Tiller The TRANSFORMER’s tiller can adjust for rider’s comfort. To adjust – squeeze the tiller tilt adjuster lever towards the tiller then move the tiller towards the seat to a reach comfortable position. To put the tiller to the original position, squeeze the tiller tilt adjuster lever and the tiller will move to the original position.
  • Page 9 Manually Folding the TRANSFORMER The TRANSFORMER Scooter can be opened or closed manually. To Open Manually – A. Locate the red manual release lever. B. Squeeze lever against the tiller and pull the tiller forward toward the front wheels. The scooter should start to unfold.

  • Page 10: Safety Requirements

    6. Safety Requirements Driving Surface The TRANSFORMER has the best stability under normal driving conditions (dry, level ground with concrete or asphalt). Extra care must be taken when riding on other surfaces (grass, gravel, etc) It is unsafe to drive the TRANSFORMER up steep inclines. Please read the manual instruction completely before operation.
  • Page 11 7. Battery Maintenance & Charging The TRANSFORMER Scooter is designed to use one maintenance free 24.9v/10AH lithium Ion Battery. It comes with an easy to use DC24V-2AH charger. • Charge the battery completely before the first operation. Not charging the battery completely prior to operating your TRANSFORMER for the first time can cause damage to the battery.
  • Page 12 Can other chargers be used? To charge safely and efficiently, use the charger supplied by the original manufacturer only. How often should you charge the battery? The charge time depends on the use. • If you’re operating the scooter every day, charge after each use so it will have a full charge the next day.
  • Page 13 How to ensure the battery life A fully charged battery will provide better performance and extend battery life. Do not fully discharge the battery. How to store scooter and battery • Charge your battery fully before you store it. • Remove battery from the TRANSFORMER. •...

  • Page 14: Basic Troubleshooting

    Wiring • Check all wire connections and wiring insulation for wear and damage regularly. This includes the charger power cord. Motor, Bearings and Transmission parts • These components have been lubricated and sealed by the factory, there is no need to lubricate these parts.
  • Page 15 If you loosen the bolt, the pitch of the armrest will go up. Tighten the nut to lock the pitch into place. Lift armrest, adjust bolt here If you continue to have trouble with your TRANSFORMER, contact Enhance Mobility at 800- 296-4151 – Option 2 or your authorized TRANSFORMER dealer.
  • Page 16 – tires, trim and seat covers are not covered under the warranty. Enhance Mobility will ship the parts directly to the customer or to the service center of their choice. Enhance Mobility will provide technical assistance and documentation to ensure the scooter is repaired properly.
