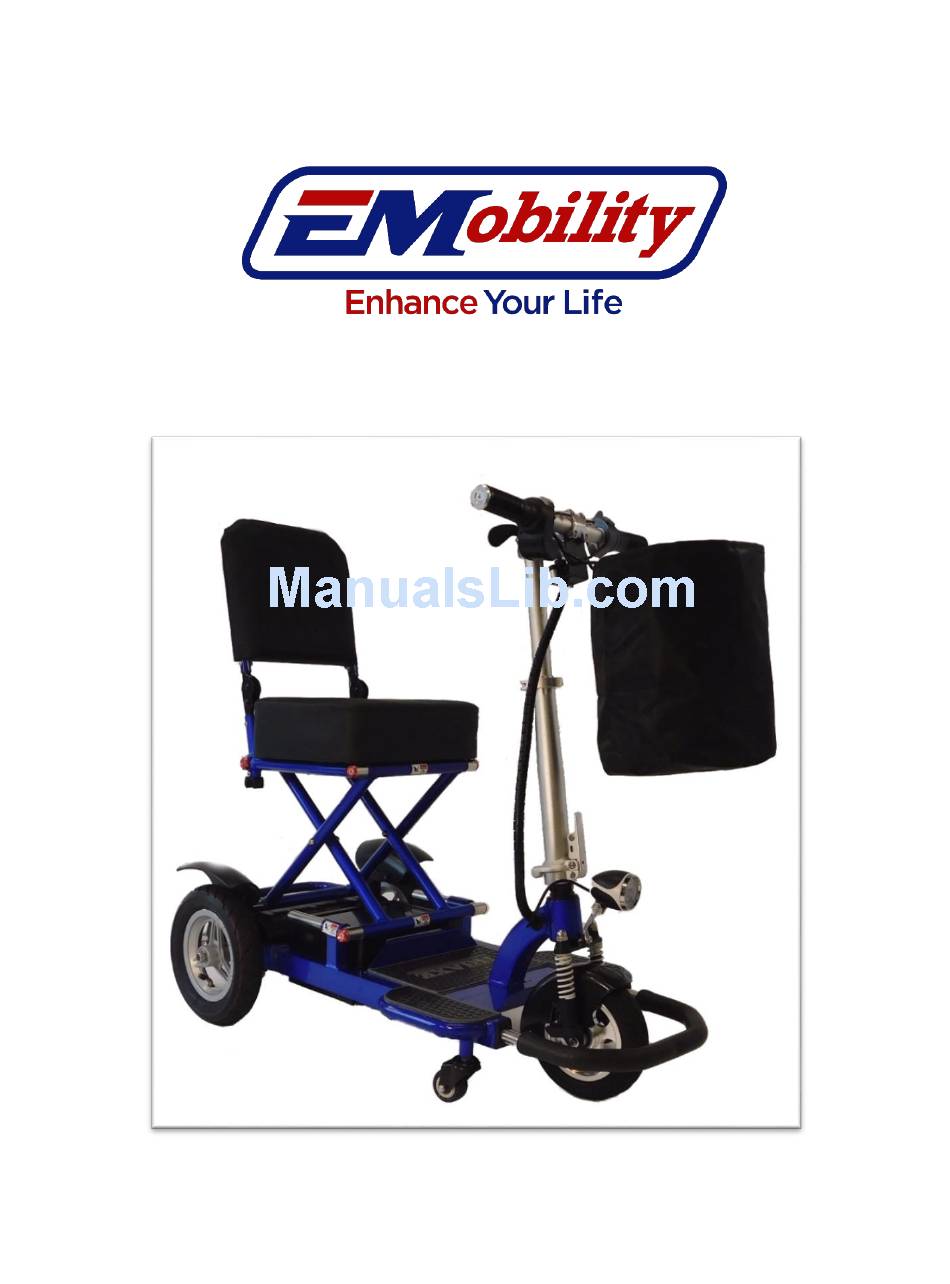

- Page 1 TRIAXE TOUR User Manual July 2017...
-
Page 2: Table Of Contents
Thank you for choosing the TRIAXE TOUR Folding Scooter. Please read this manual carefully before operating the TRIAXE TOUR. If you have any questions or need further assistance, please contact your TRIAXE Dealer or Enhance Mobility directly at 800-296-4151option 2 or service@enhancemobility.com. -
Page 3: Triaxe Tour Feature Guide
1. TRIAXE TOUR Feature Guide The TRIAXE TOUR is composed of the following parts: handlebar controls, rear tires, front wheel, anti-tip wheels, bumper, tiller, tiller lock lever, foldable seat, seat supporting frame, footboard, battery, charger port, headlight, bumper/pull handle. 1. Handlebar Controls 9. - Page 4 2. TRIAXE TOUR Specifications Model TRIAXE TOUR T3050 Overall Length 38” 19” Overall Width 8” solid front tire Tires 9.5” Pneumatic Rear Tires with Anti-Flat Maximum Speed Up to 6mph Range Up to 18 miles Turning Radius 27” Weight (without battery pack)
-
Page 5: Key Components
3. Key Components Handlebar Controls Headlight On/Off Switch Battery Indicator Horn Keyed Ignition Fingertip Controls The Handlebar Control consists of a keyed ignition, fingertip controls, horn and headlight on/off switch. Be sure to always protect the TRIAXE TOUR Handlebar Controls from humidity and water. -
Page 6: Operating Instructions
4. Operating Instructions Turning on the Power Turn battery switch to On position. Put key in ignition and turn clockwise to turn on. Turn key counter-clockwise to power off when you stop. Please note – The power on the TRIAXE Tour will not turn on if the Free Wheel Lever is engaged. -
Page 7: Battery Indicator
Battery Indicator The battery level indicator will show the battery level when the scooter is on. When 3 green lights are lit, the battery is fully charged, 2 green lit, the battery is ½ charged. One green lit, the battery needs to be charged. The red light indicates the power is on. -
Page 8: Folding And Unfolding The Triaxe Tour
5. Folding and Unfolding the TRIAXE TOUR To Open the TRIAXE TOUR Pull front tiller forward and squeeze tiller lock lever towards steering tube until it locks in place. Raise back rest. Lift seat straight up until it locks in place (Please note some TRIAXE model are designed to stop midway up and you will have to squeeze the lever under the seat again to raise the seat the rest of the way). -
Page 9: Safety Requirements
6. Safety Requirements Driving Surface The TRIAXE TOUR has the best stability under the normal driving conditions (dry, level ground with concrete or asphalt). Extra care must be taken when riding on other surfaces (grass, gravel, etc). It is unsafe to drive the TRIAXE TOUR up steep inclines. Please read the manual instruction completely before operation. - Page 10 7. Battery Maintenance & Charging The TRIAXE TOUR Scooter is designed to use one maintenance free 24v/12AH lithium Ion Battery. It comes with an easy to use 24V-2AH charger. • Charge the battery completely before the first operation. Not charging the battery completely prior to operating your TRIAXE TOUR for the first time can cause damage to the battery.
- Page 11 Guide to Safe and Long Lasting Battery How does the charger work? When the battery voltage is low, the battery charger outputs a large current to charge the battery. When the battery voltage is near full, the battery charger outputs a small current. When the battery is full, the battery charger will output very little current.
- Page 12 gets stable performance. More importantly, a deep cycle battery will get higher performance after several charging – discharging cycles. Please follow the steps below to improve the battery performance: • A new battery must be fully charged before using. • Low speeds are recommended for the first time. Do not travel too far until you are familiar with the operation of the scooter and the battery.
- Page 13 8. Maintenance With care and regular maintenance, the TRIAXE TOUR is designed to provide years of enjoyment. The following will keep your TRIAXE TOUR running at optimum levels. Battery • Make sure battery is fully charged. • Store the battery in a dry environment. •...
-
Page 14: Basic Troubleshooting
*Please Note – tires, rims, inner tubes and disc brakes are not covered under the warranty. Enhance Mobility will ship the parts directly to the customer or to the service center of their choice. Enhance Mobility will provide technical assistance and documentation to ensure the scooter is repaired properly.
