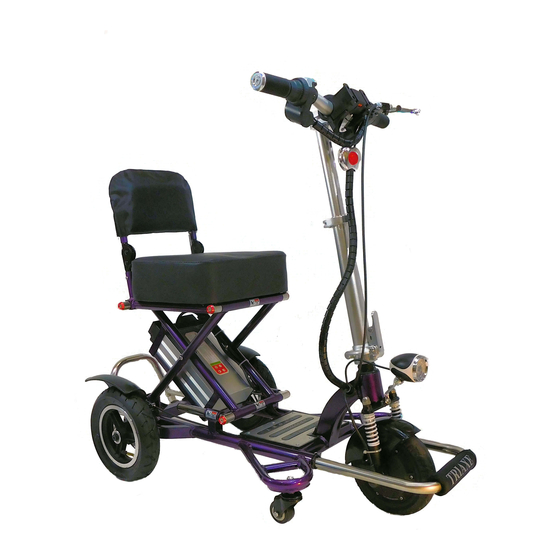

Triaxe Sport
By Enhance Mobility
User Manual
April 2016

Advertisement

loading
Need help?

Need help?

Do you have a question about the triaxe sport and is the answer not in the manual?

Questions and answers

Related Manuals for Enhance Mobility triaxe sport

Summary of Contents for Enhance Mobility triaxe sport

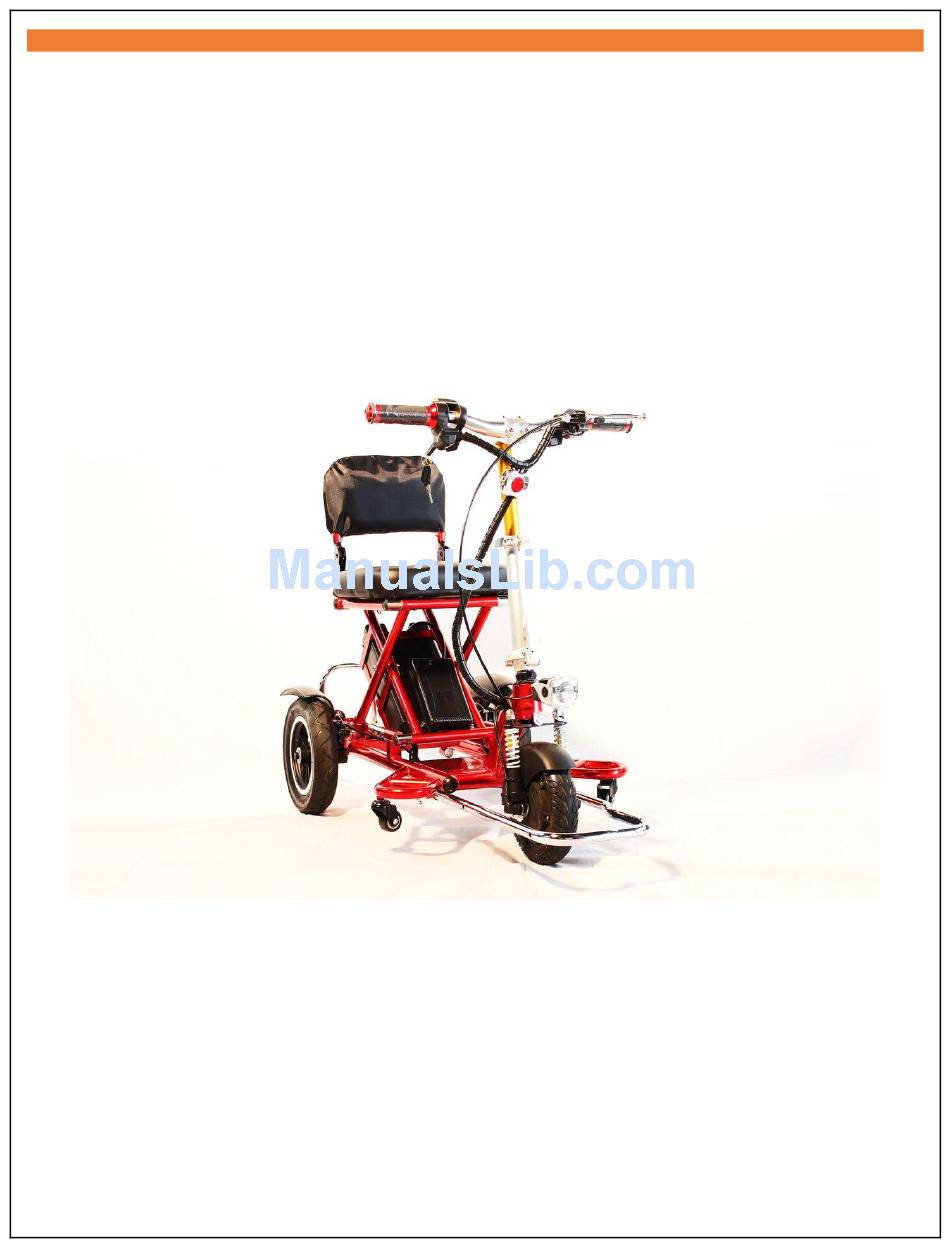

  • Page 1 Triaxe Sport By Enhance Mobility User Manual April 2016...

  • Page 2: Table Of Contents

    Please note all information and photos in this manual are for reference only and are subject to factory changes and modifications. Before using your Triaxe Sport Scooter please be sure that the delivery is complete. Your Triaxe Sport package should include the owner manual, battery, key (2), battery charger and soft sided basket.

  • Page 3: Triaxe Sport Feature Guide

    1. Triaxe Sport Feature Guide The Triaxe Sport is composed of the following parts: handlebar controls, handbrake control, back tires, front wheel, anti-tip wheels, bumper, tiller, tiller release switch, foldable seat, seat supporting frame, footboard, luggage rack, battery, charger port, headlights, bumper/pull handle.
  • Page 4 2. Triaxe Sport Specifications Model Triaxe Sport T3045 34” Overall Length 20 ½” Overall Width 8” solid front tires Tires 9.5” pneumatic rear tires Maximum Speed Up to 9mph 18° Safe Gradient/Maximum Gradient Range Up to 35 miles Turning Radius...

  • Page 5: Key Components

    3. Key Components Handlebar Controls Soft Sided Basket Hand Brake Parking Brake Twist Grip Throttle Headlight On/Off Switch Horn Keyed Ignition Not On This Model Forward/Reverse Indicator The Handlebar Control consists of a keyed ignition, twist grip throttle, forward-reverse indicator, horn, headlight on/off switch and handbrake that also acts as a parking brake.

  • Page 6: Operating Instructions

    Put key in ignition and turn clockwise to turn on. Turn key counter-clockwise to power off when you stop. Be sure to always protect the Triaxe Sport Handlebar Controls from humidity and water. If the handlebar controls have been affected by moisture, be sure to dry before operation.

  • Page 7: Battery Indicator

    Battery Indicator The battery level indicator will show the battery level when the scooter is on. When green, yellow and red are showing the battery is fully charged. When yellow and red are showing, the battery is ½ charged. Red means the battery needs to be charged Battery Indicator Brakes...

  • Page 8: Folding And Unfolding The Triaxe Sport

    2. Squeeze lever and lower seat 3. Fold Seat back down. 4. Release handlebar height adjustment lever and lower handlebar. 5. Lower handlebar towards seat. 6. Front guard can be used as handle to transport the Triaxe Sport like rolling luggage.

  • Page 9: Safety Requirements

    ALWAYS TURN THE KEY OFF AND SET PARKING BRAKE BEFORE GETTING ON OR OFF THE SCOOTER.  Triaxe Sport Scooters can be used in the short grass and hard gravel safely with caution.  Avoid driving in loose gravel, covered soil and sandstone.
  • Page 10 48V-2AH charger.  Charge the battery completely before the first operation. Not charging the battery completely prior to operating your Triaxe Sport for the first time can cause damage to the battery.  Be sure the key is in the off position before charging your Triaxe Sport.
  • Page 11  Low speeds are recommended for the first time. Do not travel too far until you are familiar with the operation of the scooter and the battery.  Fully charge the battery after operating Triaxe Sport the second time.  The battery capacity will reach 100% and extend the driving time after four to five charging and discharging cycles.
  • Page 12 Cleaning  A clean, damp, non-abrasive cloth works best to wash and clean the Triaxe Sport.  Do not wash your Triaxe Sport with a water hose as this may create an electrical short and damage the electrical system. Wiring ...

  • Page 13: Basic Troubleshooting

    6 month warranty for battery 3 year warranty on frame Enhance Mobility will ship the parts directly to the customer or to the service center of their choice. Enhance Mobility will provide technical assistance and documentation to ensure the scooter is repaired properly.
  • Page 14 This is available in the continental USA. In the event that there is no coverage in your area, Enhance Mobility will pay for shipping to return the scooter to our Service Center for repair and ship back to you.
