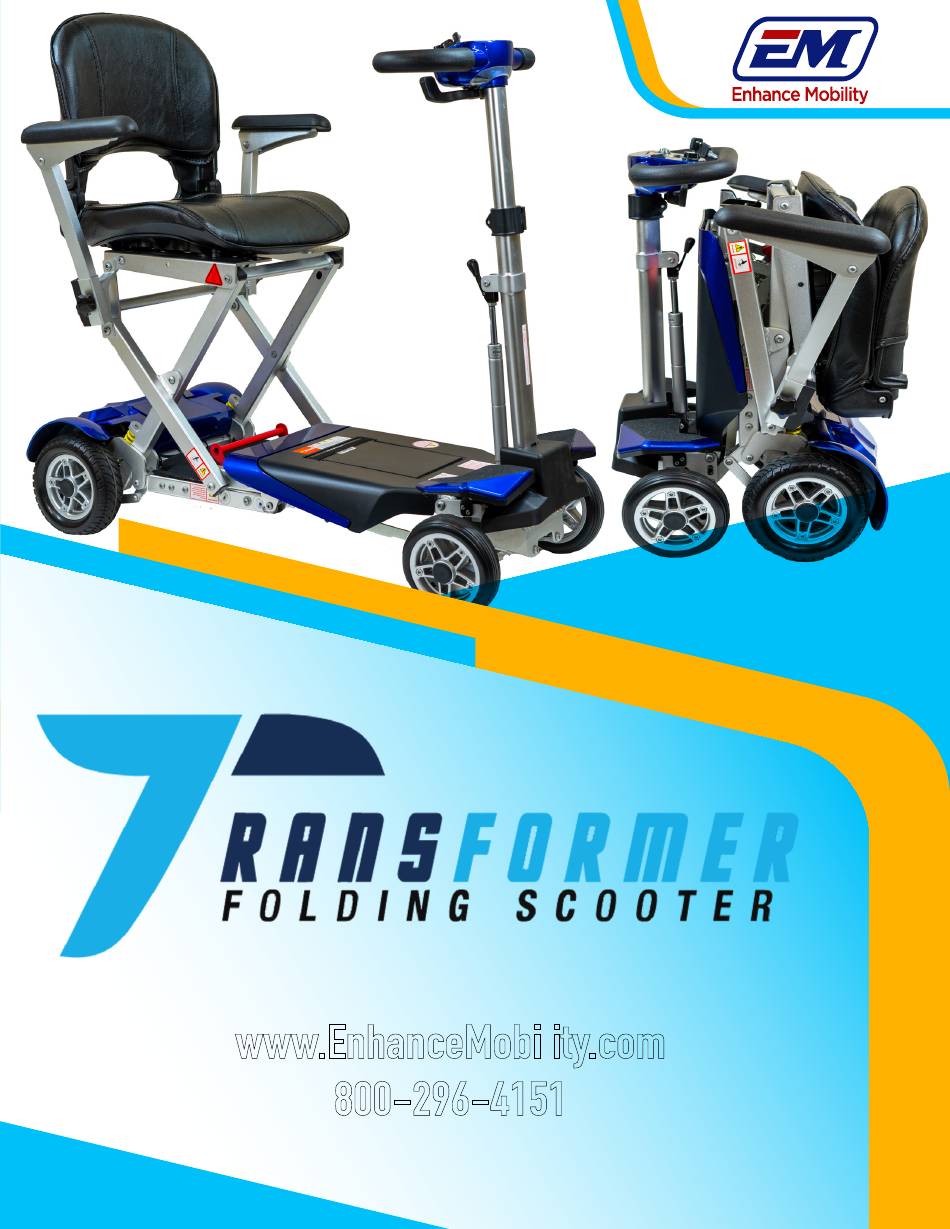

- Page 1 TRANSFORMER Scooter User Manual April 2023 User Manual www.EnhanceMobility.com 800-296-4151 April 2023...
-
Page 2: Table Of Contents
Thank you for choosing the TRANSFORMER Folding Scooter. Please read this manual carefully before operating the TRANSFORMER. If you have any questions or need further assistance, please contact your TRANSFORMER Dealer or Enhance Mobility directly at 800-296-4151option 2 or service@enhancemobility.com. -
Page 3: Transformer Feature Guide
1. Transformer Feature Guide The TRANSFORMER is composed of the following parts: front and rear frame, handlebar controls, rear wheels, front wheels, bumper, tiller, height adjustment lock lever, tiller tilt adjuster, foldable seat, seat supporting frame, deck, battery, charger port, armrests and remote bi-pass switch. -
Page 4: Transformer Specifications
2. Transformer Specifications Model Transformer S3021 Scooter Dimensions Unfolded 38”x22”x37” (LxWxH) Scooter Dimensions Folded 18”x22”x25” (LxWxH) 6” x 1.5” Front Tires Tires (Solid Wheels) 7” x 2.36” Rear Tires Maximum Speed Up to 3.75 MPH Range Up to 13.5 Miles per charge 55”... -
Page 5: Key Components
3. Key Components Handlebar Controls Battery Horn Light Indicator Steering Remote Switch Handle Bi-Pass Switch Speed Dial Forward/Reverse Charging Keyed Directional Port Charger Ignition Controls The Handlebar Control consists of the steering handle, keyed ignition, directional controls, horn, speed control, light switch, battery indicator, charging port, and the Remote Bi-Pass switch. -
Page 6: Operating Instructions
4. Operating Instructions Turning on the Power Put key in ignition and turn clockwise to turn on. The scooter will beep once when the key is turned on. Turn key counter-clockwise to power off. Please note – If the Free Wheel Lever is engaged the scooter will make a beeping noise when the scooter is turned on. - Page 7 Speed Control Knob The speed control knob is used for controlling the scooter’s speed. When you adjust the knob to the left (tortoise), it’s the minimum speed; when you adjust the knob to the right (rabbit), it’s the maximum speed. Brakes The TRANSFORMER Scooter is equipped with electromagnetic brakes.
-
Page 8: Folding And Unfolding The Transformer
5. Folding and Unfolding the Transformer Automatic Remote Control Operation (Key Fob) To use the remote control to open and close the scooter, the key must be turned on. To unfold (open) the TRANSFORMER Scooter, press the top button on the key fob, and let go. Your Transformer should begin beeping, and open halfway. - Page 9 Manually Folding the Transformer...Cont. To Close Manually - 1. Pull up on the manual release bar. 2. The front and rear frame will draw closer together. 3. Push the front and rear of the scooter together until they are locked in place. NOTE –...
-
Page 10: Safety Requirements
6. Safety Requirements Driving Surface The TRANSFORMER has the best stability under normal driving conditions (dry, level ground with concrete or asphalt). Extra care must be taken when riding on other surfaces (grass, gravel, etc.) Check the physical conditions (tires, battery, bolts) before driving the scooter. ALWAYS SLOW DOWN BEFORE TURNING. -
Page 11: Battery Maintenance & Charging
7. Battery Maintenance & Charging The TRANSFORMER Scooter is designed to use one maintenance free 24.9v/10AH lithium Ion Battery. It comes with an easy to use DC24V-2AH charger. • Charge the battery completely before the first operation. Not charging the battery completely prior to operating your TRANSFORMER for the first time can cause damage to the battery. - Page 12 Guide to a Safe & Long Lasting Battery How does the charger work? When the battery voltage is low, the battery charger outputs a large current to charge the battery. When the battery voltage is near full, the battery charger outputs a small current. When the battery is full, the battery charger will output very little current.
- Page 13 Guide to a Safe & Long Lasting Battery...Cont. Why is the power of my new battery weak? Deep-cycle batteries use unique chemical technology and design. It can be charged quickly and be used for a long time after full-charge. The battery is fully charged before leaving the factory but may change its initial performance during the transportation due to the temperature.
-
Page 14: Maintenence
8. Maintenance With care and regular maintenance, the TRANSFORMER is designed to provide years of enjoyment. The following will keep your TRANSFORMER running at optimum levels. Battery • Make sure battery is fully charged. • Store the battery in a dry environment. •... -
Page 15: Basic Troubleshooting
If you loosen the bolt, the pitch of the armrest will go up. Tighten the nut to lock the pitch into place. If you continue to have trouble with your TRANSFORMER, contact Enhance Mobility at 800- 296-4151 – Option 2 or your authorized TRANSFORMER dealer. - Page 16 9. Basic Troubleshooting...Cont Beep Error Codes 1 BEEP The battery requires charging or there is a bad connection to the battery. Tip: Remove and charge battery 2 BEEPS There is a bad connection to the motor. Check all connections between the motor and controller. 3 BEEPS The motor has experienced a short circuit to a battery connection.
-
Page 17: Warranty Information
Acts of Nature *Enhance Mobility is not liable for damages caused by shipping. Enhance Mobility will ship the parts directly to the customer or to the service center of their choice. Enhance Mobility will provide technical assistance and documentation to ensure the scooter is repaired properly.
